Switch 3800 Front
View
10/100 Mbps ports
In addition to providing a fast backbone between Ethernet LANs,
Gigabit Ethernet equipped file servers and services may be directly
attached to the Switch 3800 providing improved performance to the
Ethernet desktop.
Figure 1-3 shows the Switch 3800 front view.
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16
25 25
17 18 19 20 21 22 23 24
25 25
Port status LEDs

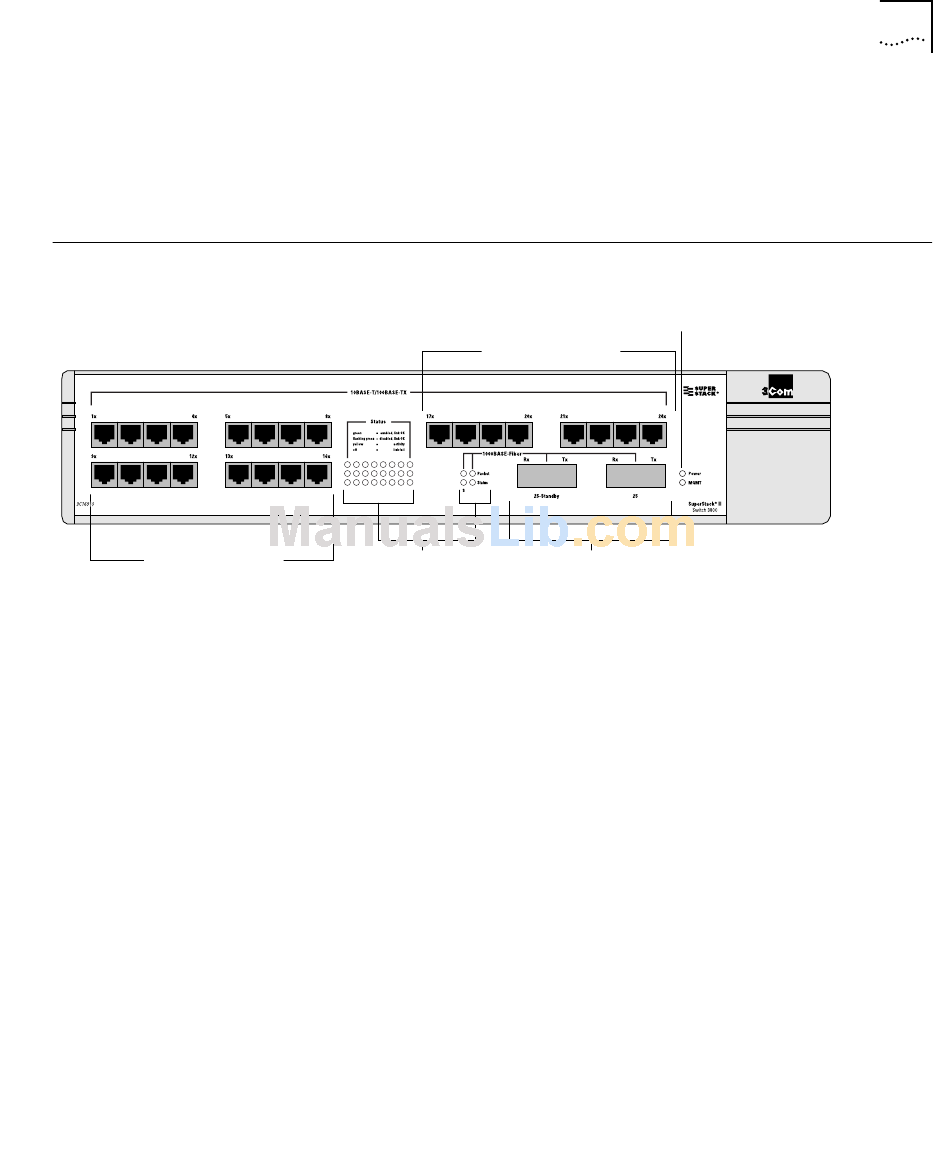

Figure 1-3 Switch 3800 front view
The front panel has the following features:
Ports
The Switch 3800 has 24 autosensing 10BASE-T/100BASE-TX ports using
standard RJ-45 connectors, and supports one Gigabit Ethernet port,
and one redundant Gigabit Ethernet port using standard Gigabit
Interface Connectors (GBICs). You must have a GBIC transceiver module
inserted to make use of these ports.
The Switch 3800 ports support the media types and distances listed in
Table 1-1.
Unit status LEDs
10/100 Mbps ports
Gigabit Ethernet ports
Switch 3800 Front View
1-7
