192.207.35.1
192.207.35.0
Finance
1
IP
IP
NetBIOS
NetBIOS

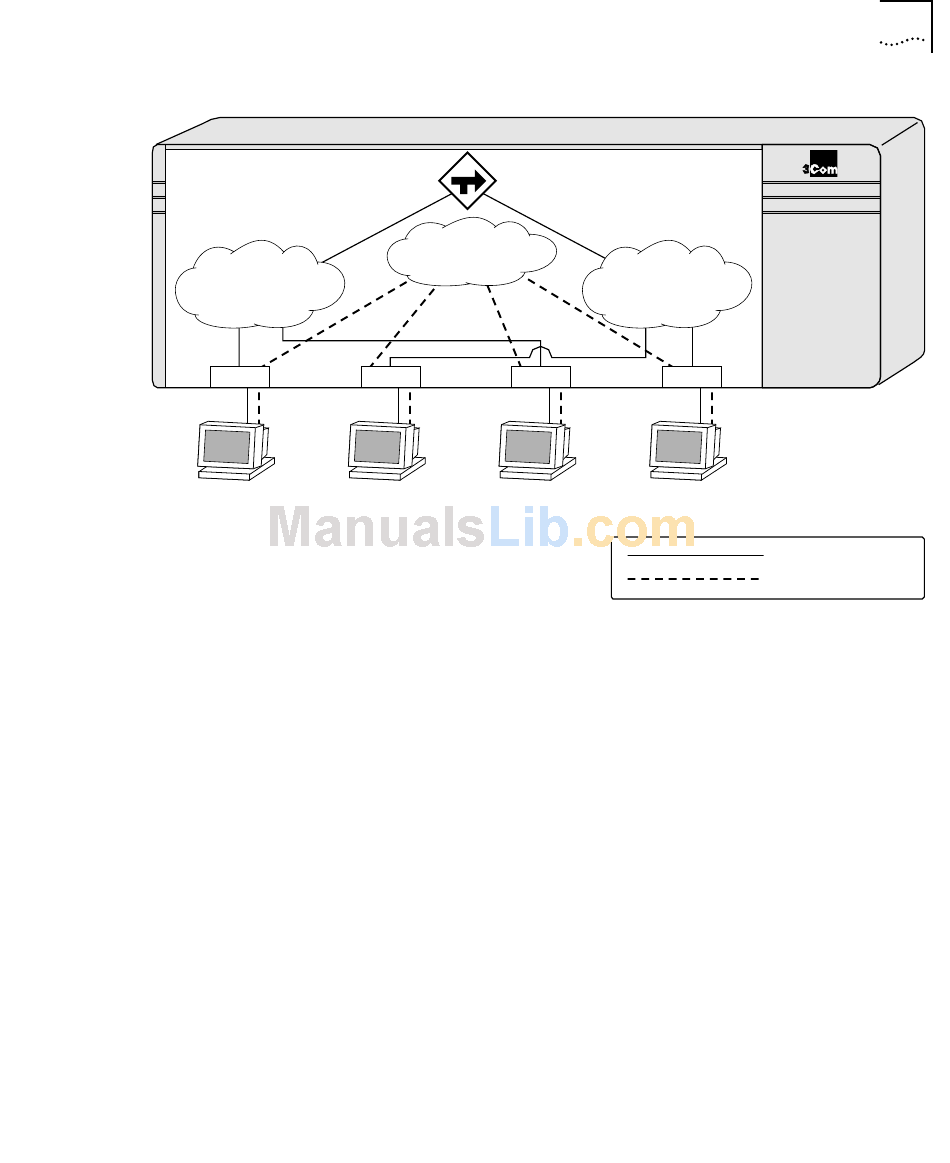

Figure 8-2 Unicast Routing Configuration Example
In this configuration, all IP traffic from stations connected to ports 1
and 3 have access to the router by way of the VLAN Finance. Ports 2
and 4 reach the router by way of the VLAN Personnel. All other traffic
(NetBIOS) is part of the VLAN MyCompany.
The example in Figure 8-2 is configured as follows:
create vlan Finance
create vlan Personnel
create vlan MyCompany
config Finance protocol ip
config Personnel protocol ip
config Finance add port 1,3
config Personnel add port 2,4
config MyCompany add port all
config Finance ipaddress 192.207.35.1
config Personnel ipaddress 192.207.36.1
enable ipforwarding
enable rip
192.207.36.1
My Company
2
3
IP
NetBIOS
Routing Configuration Example
192.207.36.0
Personnel
4
IP
NetBIOS
= IP traffic
= NetBIOS traffic
8-11
