5.13

MMA welding

Risk of being crushed or burnt.
When replacing spent or new stick electrodes
• Switch off machine at the main switch
• Wear appropriate safety gloves
• Use insulated tongs to remove spent stick electrodes or to move welded workpieces and
• Always put the electrode holder down on an insulated surface.

5.13.1 Connecting the electrode holder and workpiece lead

Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
Item Symbol
1
2
3
4
• Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
• Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
099-005341-EW501
27.01.2016
Description 0
Connection socket, "+" welding current
Connection socket, "-" welding current
Workpiece
Electrode holder
Design and function
CAUTION

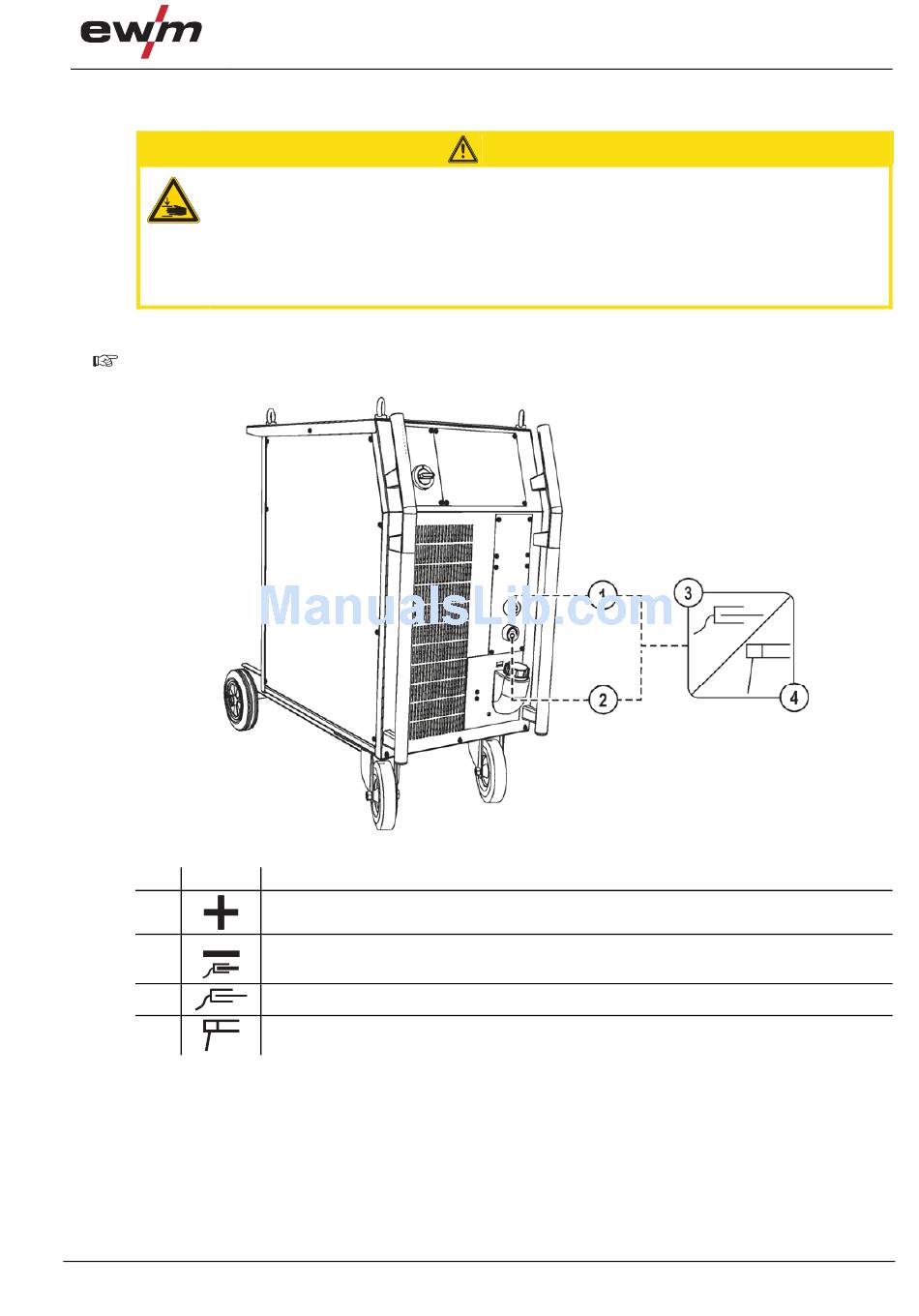

Figure 5-12
MMA welding
35
