Design and function
TIG welding
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Insert the welding current plug of the combi welding torch into the (-) welding current connection
socket and lock into place by turning to the right (only in case of a separate welding current
connection).
If fitted:
• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).

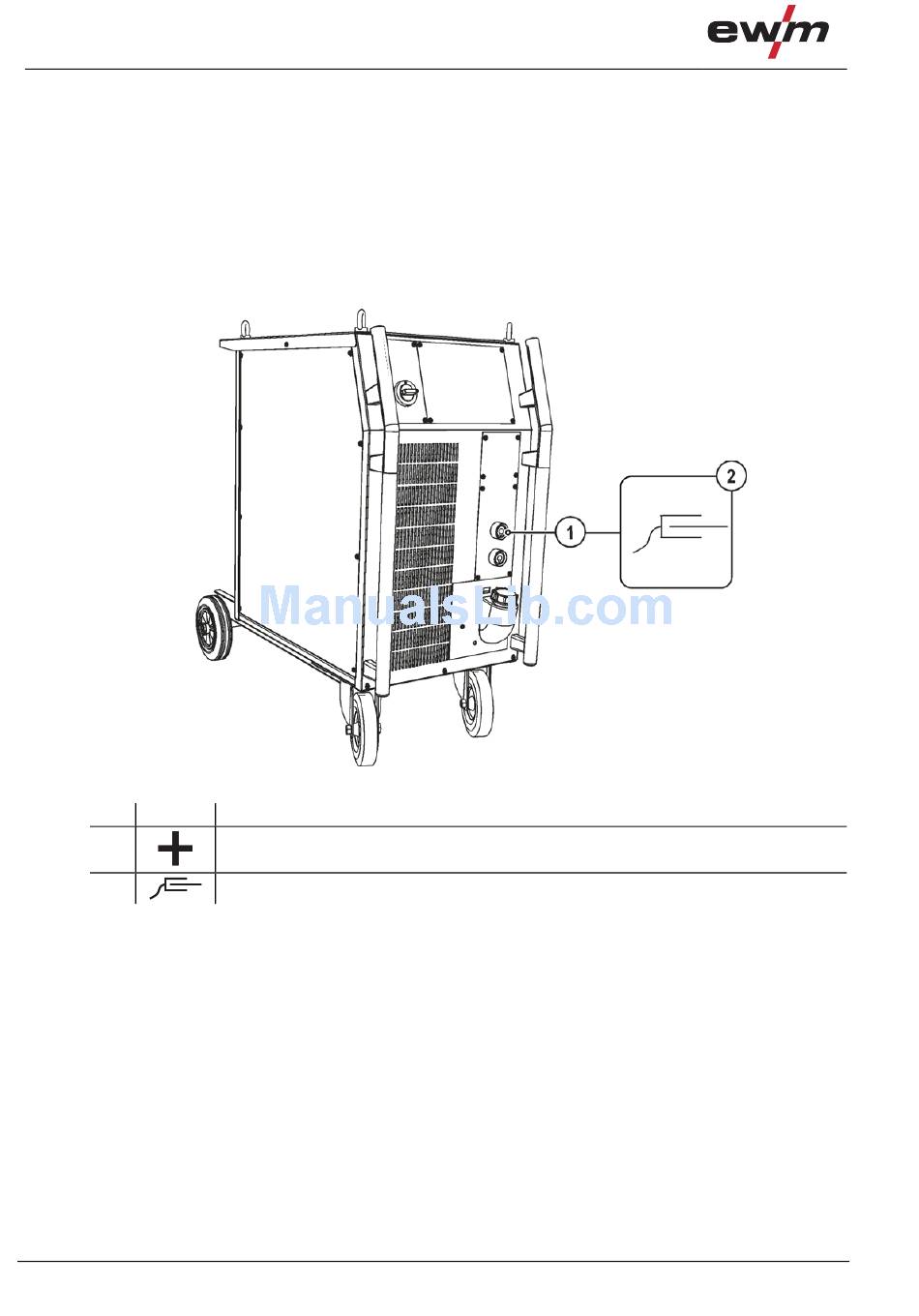

5.12.2 Connection for workpiece lead

Item Symbol
1
2
• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by
turning to the right.
34
Description 0
Connection socket, "+" welding current
• TIG welding:
Workpiece
Figure 5-11
Workpiece connection
