Connection

Place the shielding gas cylinder into the relevant cylinder bracket.
Secure the shielding gas cylinder using a securing chain.
Item Symbol
1
2
3
4
Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
Screw the gas hose (intermediate hose package) to the pressure regulator ensuring that it is gas tight.
099-005341-EW501
27.01.2016
Shielding gas supply (shielding gas cylinder for welding machine)
Description
0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
Design and function

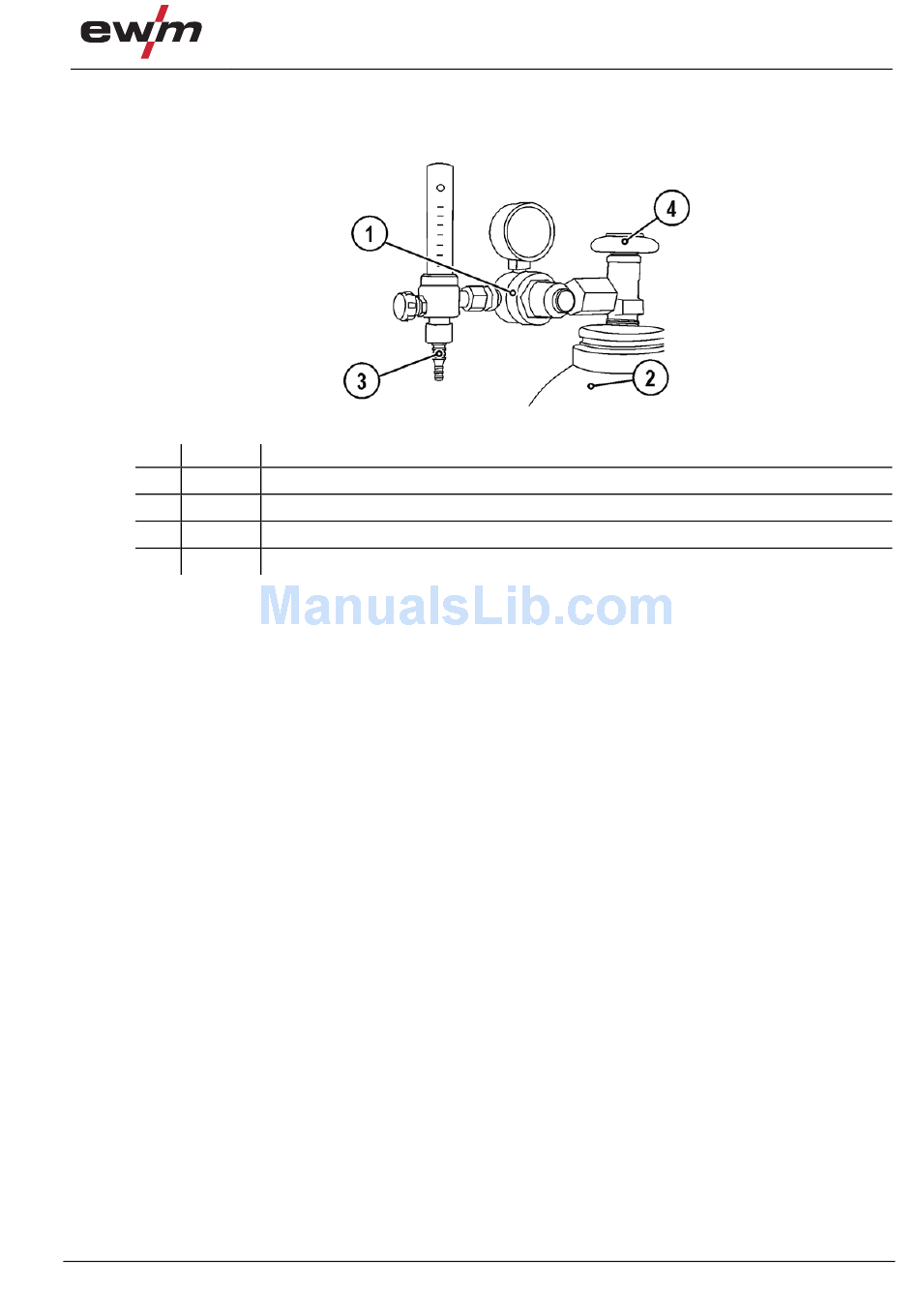

Figure 5-7
29
