Operating instructions
GB
099-005231-EW501
Register now!
For your benefit
Jetzt Registrieren
und Profitieren!
www.ewm-group.com

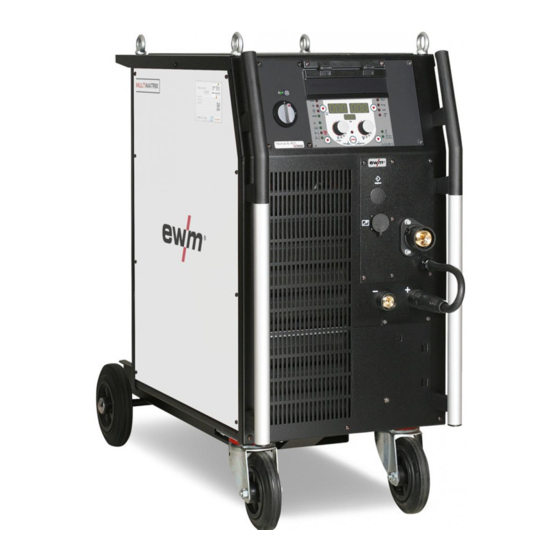

Welding machine
Taurus 401 Synergic FKG
Taurus 401 Synergic FKW
10.05.2012
*
