5.8

Connecting the intermediate hose package to the power source

Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity. In this
case, the welding current lead should be connected to the "-" welding current socket, and the
workpiece lead should be connected to the "+" welding current socket. Observe the information
from the electrode manufacturer!
Item Symbol
1
2
3
4
5
6
7
8
099-005341-EW501
27.01.2016
Description 0
Wire feed unit
Intermediate hose package
Intermediate hose package strain relief
7-pole connection socket (digital)
Wire feed unit connection
Connector plug, welding current "+"
Welding current connection on wire feed unit
Connection socket, "-" welding current
• MIG/MAG cored wire welding:
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply

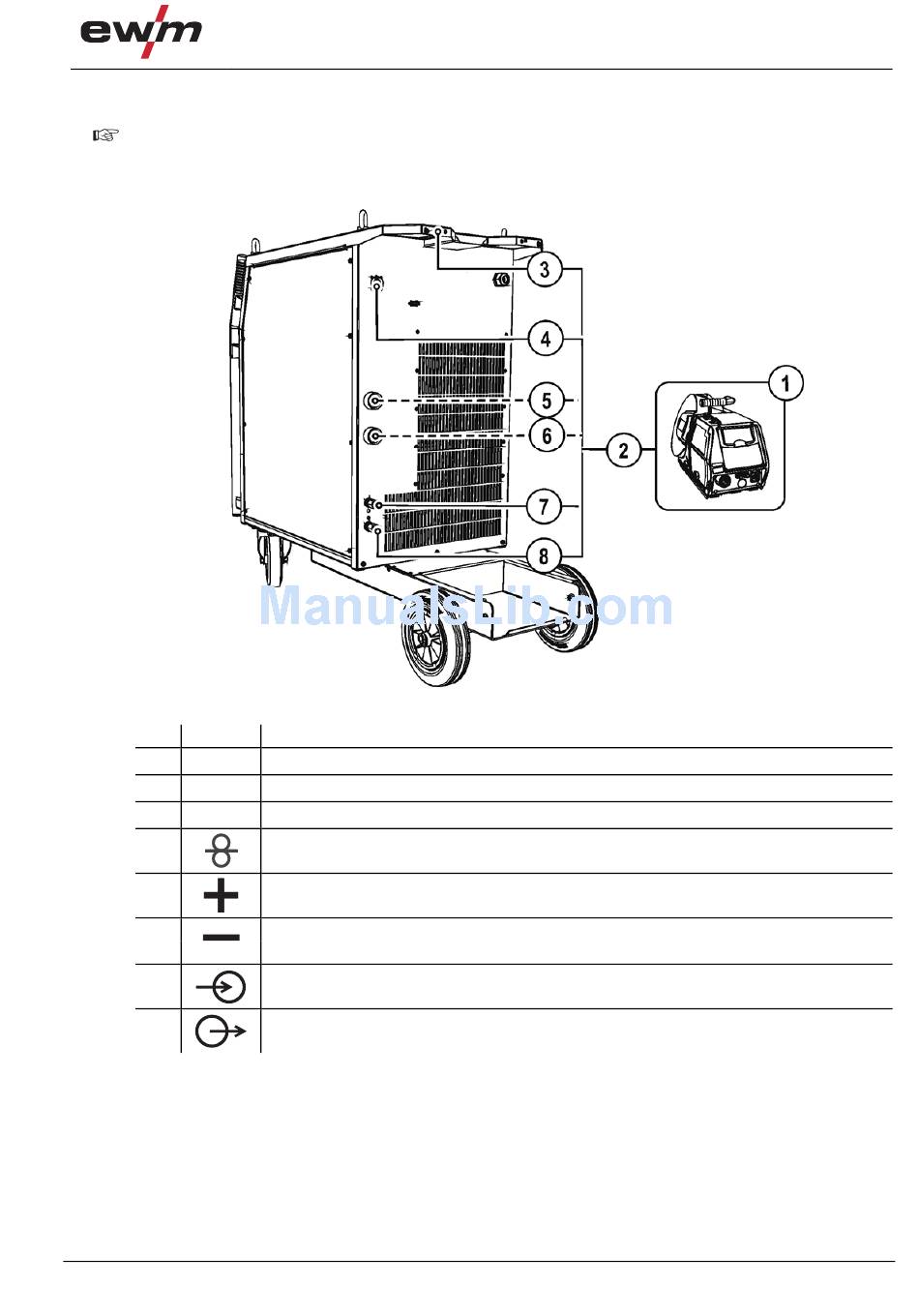

Connecting the intermediate hose package to the power source
Figure 5-6
Welding current to wire feed/torch
Design and function
