Design and function

MIG/MAG welding

5.11 MIG/MAG welding

5.11.1 Connection for workpiece lead

Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity. In this
case, the welding current lead should be connected to the "-" welding current socket, and the
workpiece lead should be connected to the "+" welding current socket. Observe the information
from the electrode manufacturer!
Item Symbol
1
2
3
• Insert the plug on the workpiece lead into the "-" welding current connection socket and lock.
32
Description 0
Connection socket, "+" welding current
• MIG/MAG cored wire welding: Workpiece connection
"-" welding current connection socket
• MIG/MAG welding: Workpiece connection
Workpiece

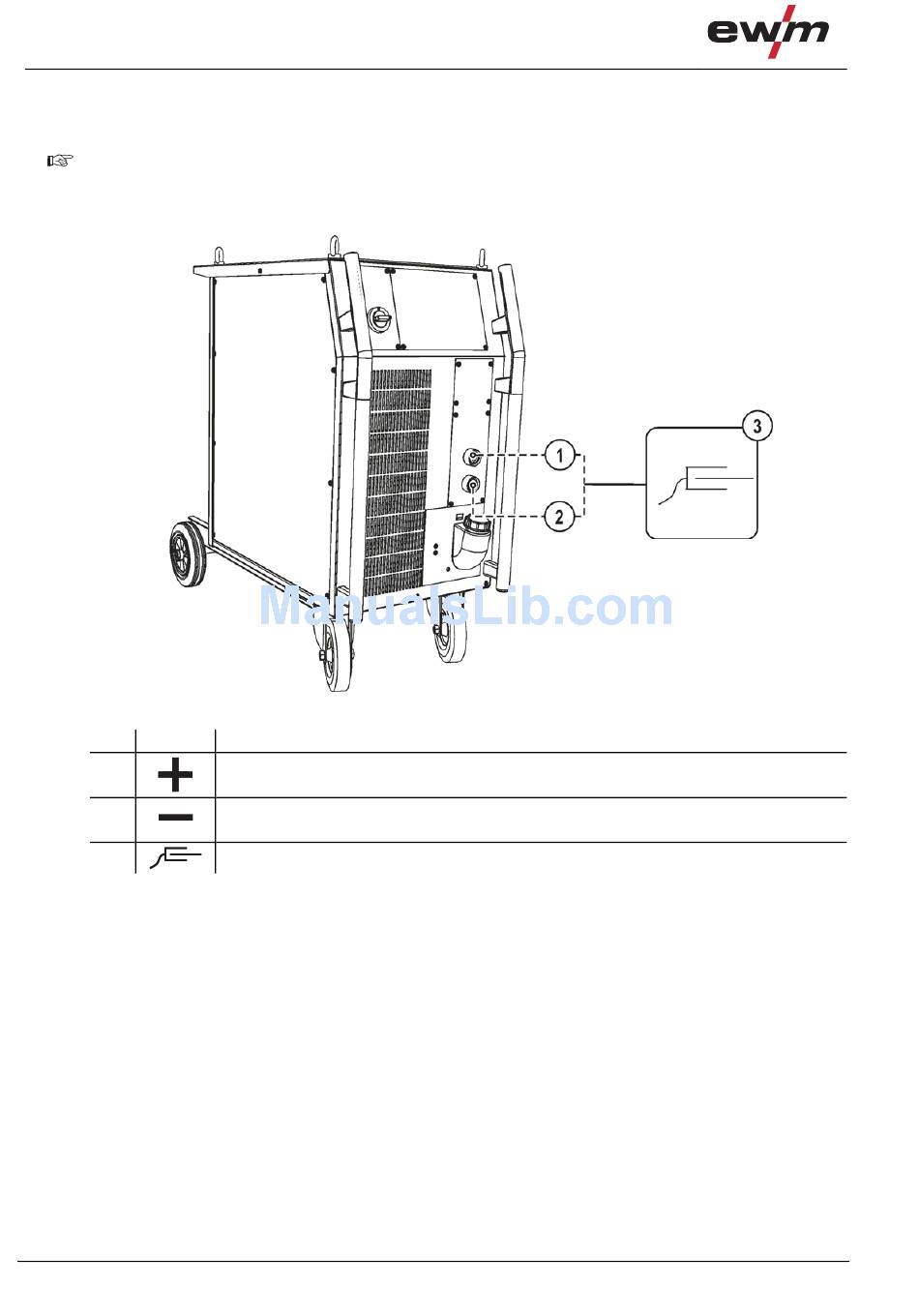

Figure 5-9
