Chapter 2 Installation and Wiring
Table 2-6 3160G/3185P~3500G main circuit terminals function
Terminal
R, S, T
P1,+
-
U, V ,W
PE
Attention: When DC reactor is not connected, please short "P1" and "+/B1" with
supplied copper bar.
14

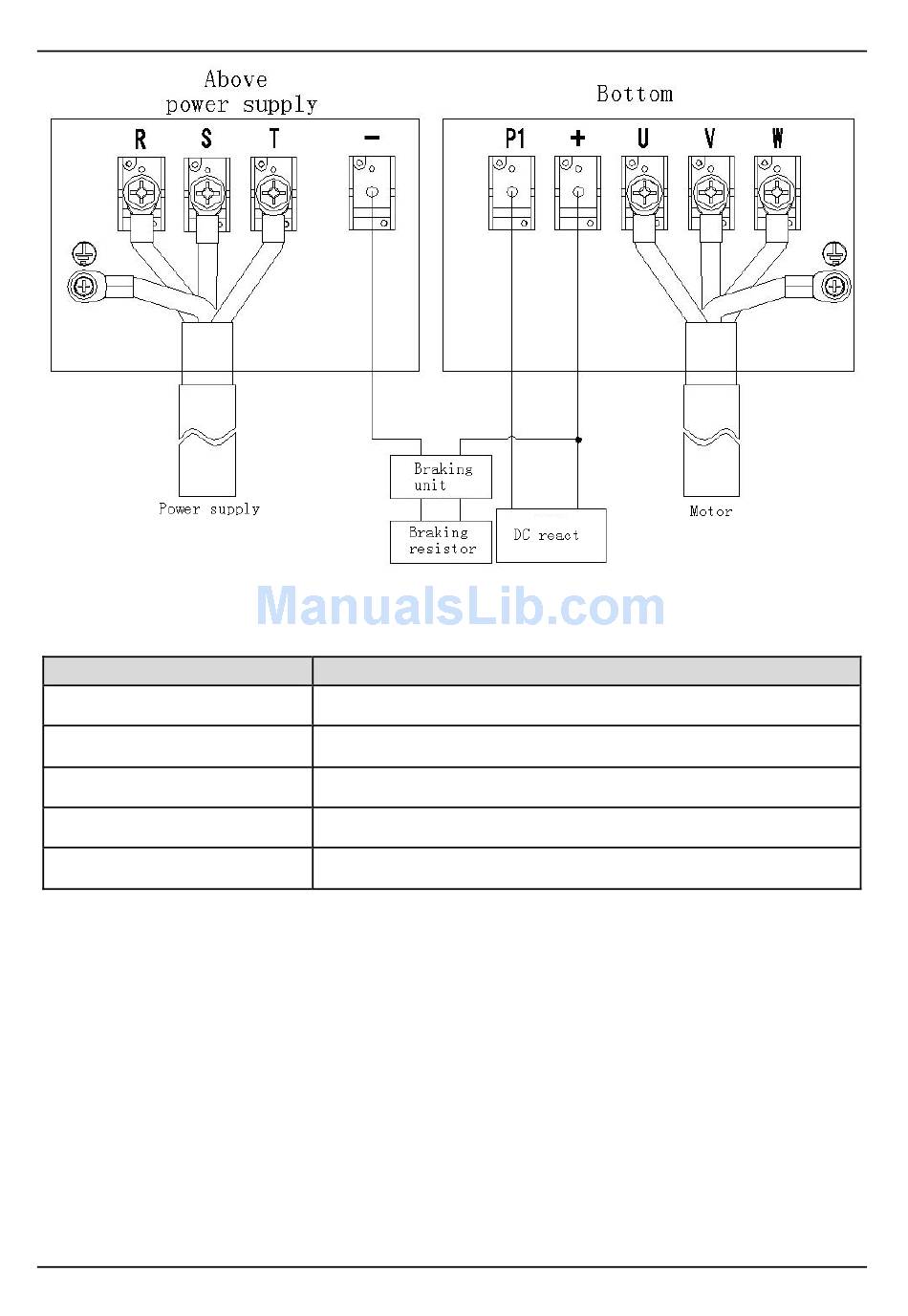

Fig. 2-8 3400G~3500G Main Circuit Wiring
Three-phase 380V AC supply input terminals
Terminals for an external DC reactor
DC negative bus output terminals
Three-phase AC output terminals
Earth terminal
Function
