PANEL DESCRIPTION

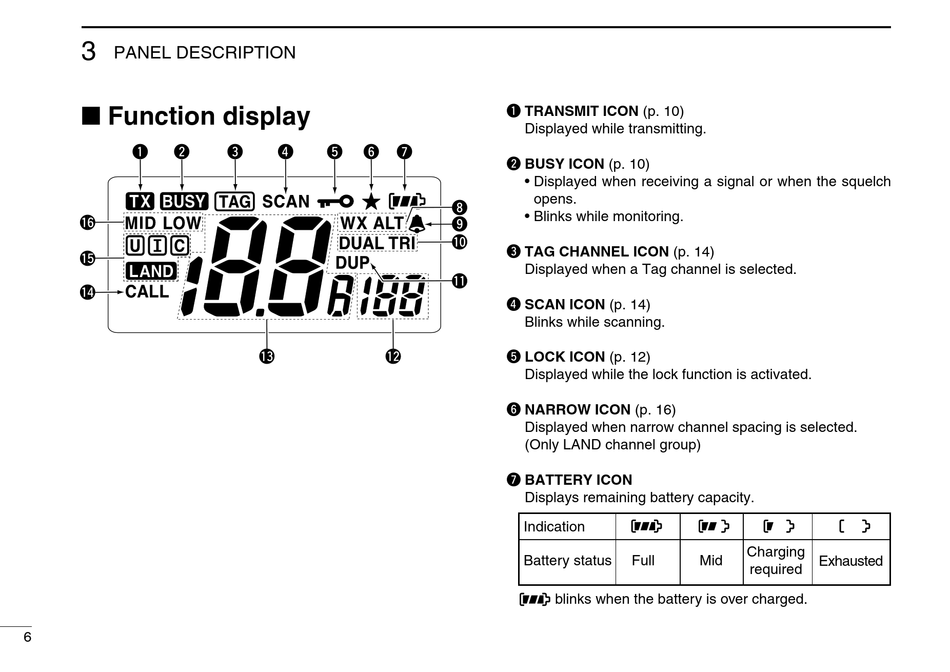

■ Function display

q w
!6
!5
!4
6
e r t y u
!3 !2
q TRANSMIT ICON (p. 10)
Displayed while transmitting.
w BUSY ICON (p. 10)
• Displayed when receiving a signal or when the squelch
opens.
i
• Blinks while monitoring.
o
!0
e TAG CHANNEL ICON (p. 14)
Displayed when a Tag channel is selected.
!1
r SCAN ICON (p. 14)
Blinks while scanning.
t LOCK ICON (p. 12)
Displayed while the lock function is activated.
y NARROW ICON (p. 16)
Displayed when narrow channel spacing is selected.
(Only LAND channel group)
u BATTERY ICON
Displays remaining battery capacity.
Indication
Battery status
blinks when the battery is over charged.
Charging
Full Mid
required
Exhausted
