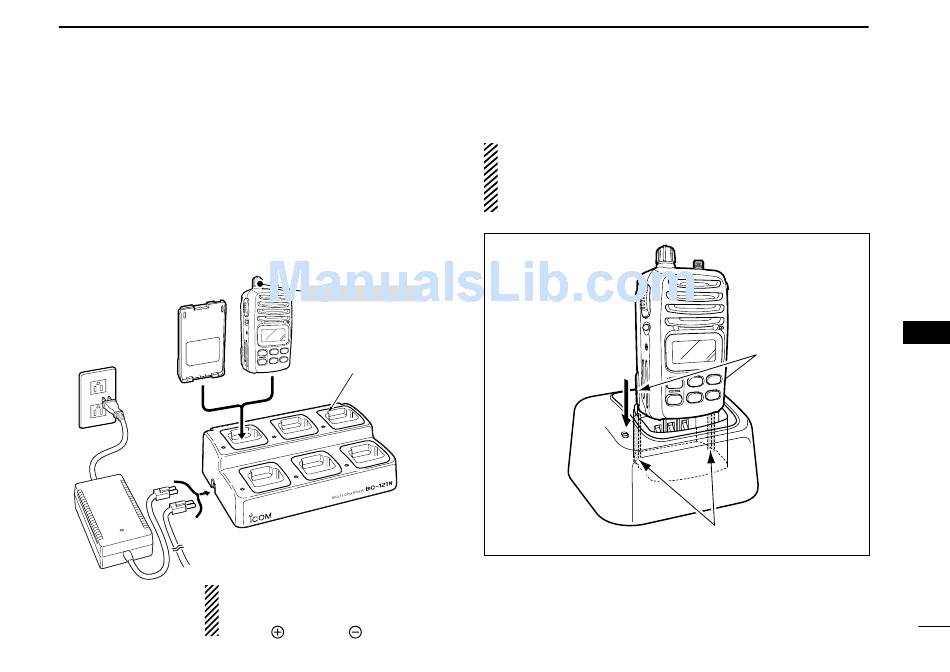

D Rapid charging with the BC-121N+AD-100

The optional BC-121N can simultaneously charge up to 6
battery packs.
The following items are additionally required.
• Six AD-100 charger adapters
• A power adapter (BC-157S) or the DC power cable OPC-
656, supplied with the BC-121N.
Battery pack
DC power cable (OPC-656*)
( Connect to a 13.8 V DC power
source that supplies at least 7 A)
* CAUTION: NEVER connect the OPC-
Power adapter
656 to a power source using reverse po-
(Purchase
larity. This will ruin the battery charger.
separately.)
Red line:
Transceiver
Turn OFF the power
AD-100 charger
adapters are installed
in each slot.
Black line :

BATTERY CHARGING

IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-119N.)
9
Tabs
Guide rail
