BATTERY CASE

When using the optional battery case attached to the trans-

ceiver, install 5 × AA (LR6) size alkaline batteries as il-

lustrated at right. The BP-226 is constructed to the IPX4

waterproof standard (IEC 60529, 2001).

q Hook your finger under the latch, and open the cover in the

direction of the arrow (q). (Fig.1)

w Then, install 5 × AA (LR6) size alkaline batteries. (Fig.2)

• Install the alkaline batteries only.

• Be sure to observe the correct polarity.

• Be sure to pin the ribbon under the batteries. Leave enough of

the ribbon ends extended, to pull when removing the batteries.

e Close the cover with fitting in the direction of the arrow (w)

first, then firm the latch in place (e). (Fig.1)

• Be sure to the gasket and the ribbon are set correctly, and do

not protrude out of the battery case. (Fig.3)

CAUTION:

• When installing batteries, make sure they are all the

same brand, type and capacity. Also, do not mix new

and old batteries together.

• Keep battery contacts clean. It's a good idea to occa-

sionally clean them.

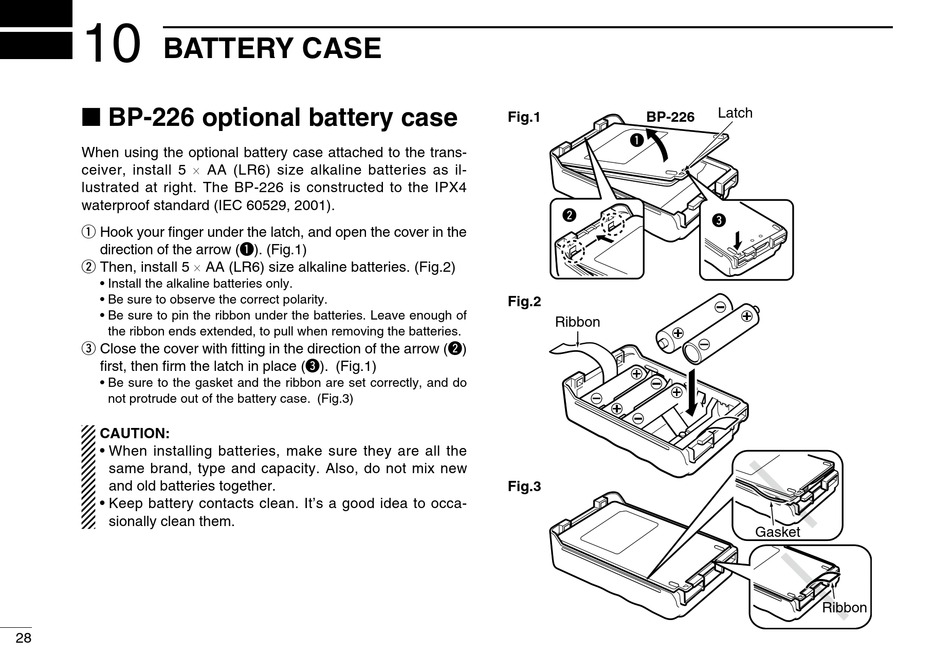

Fig.1

BP-226

Fig.2

Ribbon

Fig.3

Latch

Gasket

Ribbon
