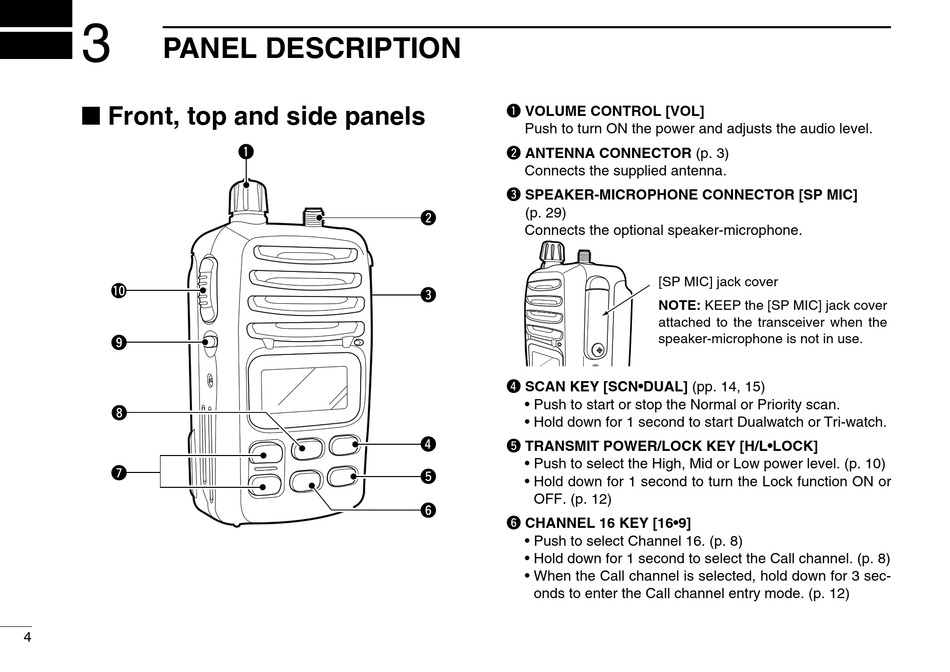

PANEL DESCRIPTION

■ Front, top and side panels

!0
o
i
u
4
q
q VOLUME CONTROL [VOL]
Push to turn ON the power and adjusts the audio level.
w ANTENNA CONNECTOR (p. 3)
Connects the supplied antenna.
e SPEAKER-MICROPHONE CONNECTOR [SP MIC]
(p. 29)
w
Connects the optional speaker-microphone.
e
r SCAN KEY [SCN•DUAL] (pp. 14, 15)
• Push to start or stop the Normal or Priority scan.
• Hold down for 1 second to start Dualwatch or Tri-watch.
r
t TRANSMIT POWER/LOCK KEY [H/L•LOCK]
• Push to select the High, Mid or Low power level. (p. 10)
t
• Hold down for 1 second to turn the Lock function ON or
OFF. (p. 12)
y
y CHANNEL 16 KEY [16•9]
• Push to select Channel 16. (p. 8)
• Hold down for 1 second to select the Call channel. (p. 8)
• When the Call channel is selected, hold down for 3 sec-
onds to enter the Call channel entry mode. (p. 12)
[SP MIC] jack cover
NOTE: KEEP the [SP MIC] jack cover
attached to the transceiver when the
speaker-microphone is not in use.
