u CHANNEL UP/DOWN KEYS [Y]/[Z]
• Push to select an operating channel. (p. 9)
• Push to select the Set mode item option. (p. 17)
• Push to check Tag channels, or change scanning direc-
tion during a scan. (p. 14)
• Hold down both keys for 1 second to set or clear the dis-
played channel as a Tag (scanned) channel.
• While holding down this key, turn ON the power to clear
all Tag channels in the selected channel group.
i CHANNEL/WEATHER CHANNEL KEY
[CH/WX• ]
U/I/C/L
• Push to toggle the regular channels and Weather chan-
nel group. (pp. 8, 9, 16)
• Hold down for 1 second to sequentially select one of 4
regular channels. (pp. 9, 16)
- USA, International, Canadian and Land channels are
selectable.
• Push to return to the mode before selecting the channel
when the Priority channel or the Call channel is selected.
o SQUELCH KEY [SQL] (p. 11)
• Push this key, then set the squelch level with [Y]/[Z].
• While holding down this key, you can manually open the
squelch to monitor the channel.
• While holding down this key, turn ON the power to enter
the Set mode.
!0 PTT SWITCH [PTT]
Hold down to transmit, release to receive.
PANEL DESCRIPTION

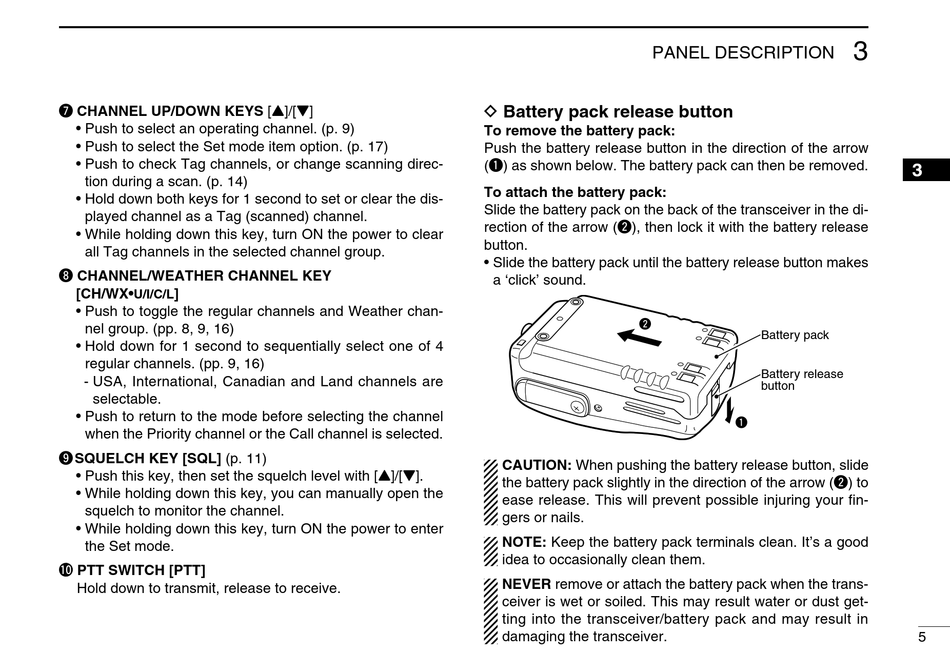

D Battery pack release button

To remove the battery pack:
Push the battery release button in the direction of the arrow
(q) as shown below. The battery pack can then be removed.
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the di-
rection of the arrow (w), then lock it with the battery release
button.
• Slide the battery pack until the battery release button makes
a 'click' sound.
w
CAUTION: When pushing the battery release button, slide
the battery pack slightly in the direction of the arrow (w) to
ease release. This will prevent possible injuring your fin-
gers or nails.
NOTE: Keep the battery pack terminals clean. It's a good
idea to occasionally clean them.
NEVER remove or attach the battery pack when the trans-
ceiver is wet or soiled. This may result water or dust get-
ting into the transceiver/battery pack and may result in
damaging the transceiver.
3
1
2
3
4
5
6
7
8
9
Battery pack
10
Battery release
11
button
12
q
13
14
15
16
5
