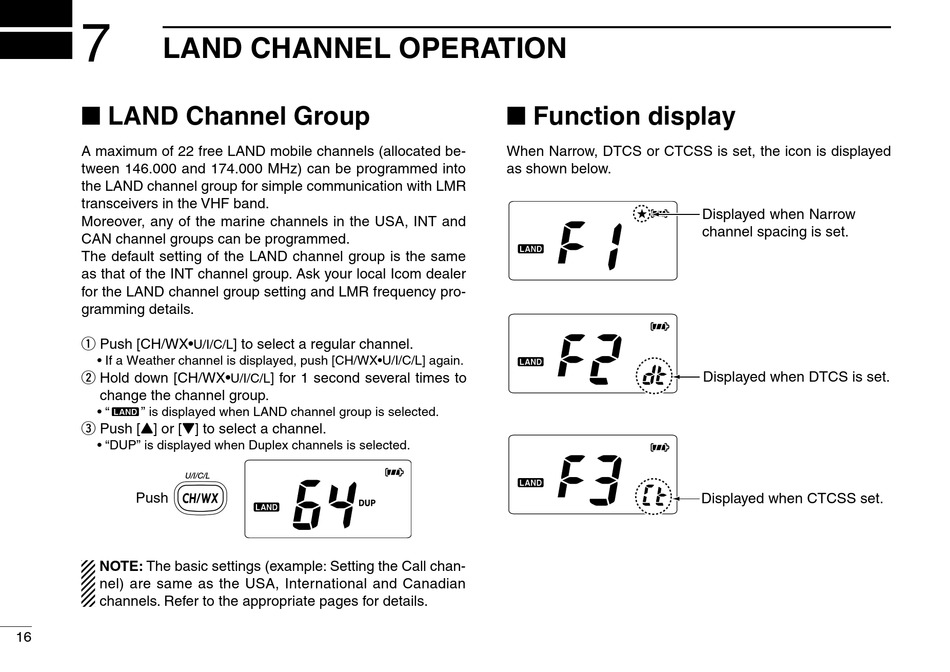

LAND CHANNEL OPERATION

■ LAND Channel Group

A maximum of 22 free LAND mobile channels (allocated be-
tween 146.000 and 174.000 MHz) can be programmed into
the LAND channel group for simple communication with LMR
transceivers in the VHF band.
Moreover, any of the marine channels in the USA, INT and
CAN channel groups can be programmed.
The default setting of the LAND channel group is the same
as that of the INT channel group. Ask your local Icom dealer
for the LAND channel group setting and LMR frequency pro-
gramming details.
q Push [CH/WX•
U/I/C/L
• If a Weather channel is displayed, push [CH/WX•U/I/C/L] again.
w Hold down [CH/WX•
change the channel group.
• " " is displayed when LAND channel group is selected.
e Push [Y] or [Z] to select a channel.
• "DUP" is displayed when Duplex channels is selected.
U/I/C/L
Push
NOTE: The basic settings (example: Setting the Call chan-
nel) are same as the USA, International and Canadian
channels. Refer to the appropriate pages for details.
16
] to select a regular channel.
] for 1 second several times to
U/I/C/L

■ Function display

When Narrow, DTCS or CTCSS is set, the icon is displayed
as shown below.
Displayed when Narrow
channel spacing is set.
Displayed when DTCS is set.
Displayed when CTCSS set.
