BATTERY CHARGING

■ Optional battery chargers

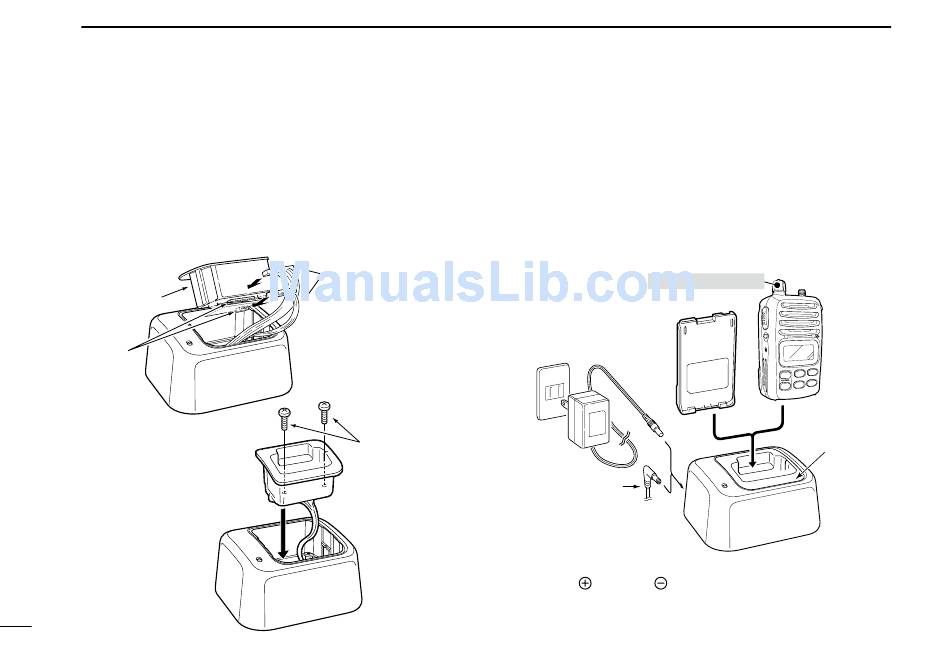

D AD-100 installation

The AD-100
charger adapter
119N or BC-121N before battery charging.
Connect the AD-100 charger adapter and the BC-119N/BC-
121N as shown below, then install the AD-100 into the holder
space of the BC-119N or BC-121N with the supplied screws.
AD-100
Sockets
This illustration is
described with the
BC-119N.
26
must be installed into the BC-
Connectors
Screws supplied
with the charger
adapter

D Rapid charging with the BC-119N+AD-100

The optional BC-119N provides rapid charging of battery
packs.
The following items are additionally required.
• AD-100 charger adapter
• A power adapter (may be supplied with BC-119N depend-
ing on version) or the DC power cable (OPC-515L/CP-23L).
Turn OFF the power
Battery pack
Power adapter
(A different type, or no
power adapter is supplied,
depending on the version.)
Optional OPC-515L*
(for power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the power adapter.
* About OPC-515L
White line: Black line :
Transceiver
AD-100 charger
adapter is installed
in the BC-119N.
