EPSON Stylus Photo RX900

4.2.5 Middle Housing

When removing or installing the Middle Housing, take care not
C A U T I O N
to tilt the printer more than 90 degrees. Otherwise, ink leakage
may occur inside the printer.
Release the right and left hooks at the bottom of the Front
Cover as shown at right so as to avoid damaging them.
1. Remove the Panel Assy. (p.80)
2. Remove the Scanner Unit. (p.83)
3. Remove the Pressure Pump Assy. (p.85)
4. Remove the Main Board Unit. (p.86)
5. Remove the Stacker Assy.
6. Remove the screws (x2), and disengage the hooks (x2) at the bottom of the printer and
remove the Front Cover.
7. At the rear of the printer, remove the screws (x2) securing the Hinge Units (x2).
8. Remove the screws securing the Middle Housing.
Screw
C.B.P-Tite 3x10 F/ZN-3C
C.B.P-Tite 3x10 F/Ni
C.B.S-Tite 3x6 F/ZN-3C
9. Remove the Middle Housing from the printer body while paying attention to the lead
wires and FFCs.
(Continued to next page)
Disassembly and Assembly
Qty Tightening Torque
⋅
4 0.6 ± 0.1 N m
⋅
2 0.6 ± 0.1 N m
⋅
2 0.8 ± 0.1 N m
Removal of Exterior Parts
C.B.S-Tite 3x6 F/ZN-3C (x2)
⋅
Torque: 0.8 ± 0.1N m
C.B.P-Tite 3x10 F/ZN-3C (x4)
⋅
Torque: 0.6 ± 0.1N m
Middle Housing
Stacker Assy
Front Cover
~Bottom~

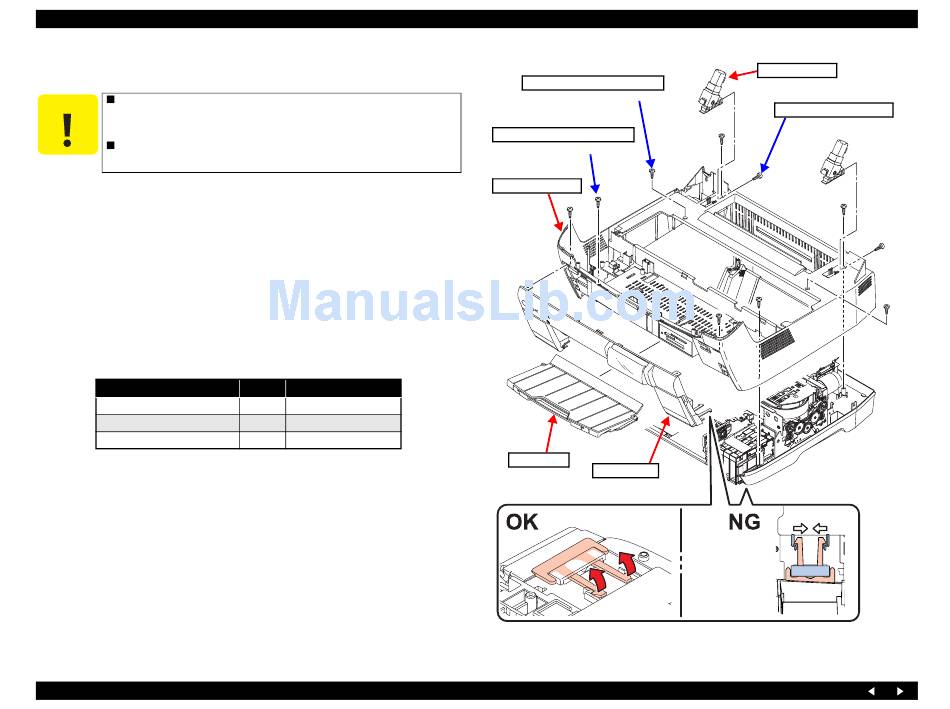

Figure 4-13. Removing the Middle Housing
Revision A
Hinge Unit (x2)
C.B.P-Tite 3x10 F/NI (x2)
Torque: 0.6 ± 0.1N
Release the hooks
(left and right) by
raising them.
Do not pinch the
prongs to release
them.
⋅
m
88
