4.2.1.1 LCD Assy

C A U T I O N
Take care not to bend the Panel Ground Plate on the back side
when performing disassembly and assembly with the Panel
Ground Plate installed.
1. Remove the Panel Assy. (p.80)
2. Remove the screws (x2), and remove the LCD Assy.
3. Remove the LCD Shafts A and B.

4.2.1.2 Disassembly of LCD Assy

C A U T I O N
Take care that the surface of the removed LCD is kept free from
scratches or dust and dirt.
1. Remove the Panel Assy. (p.80)
2. Remove the LCD Assy. (p.81)
3. Remove the screws (x2), and remove the LCD Lower Housing.
4. Remove the screws (x4), and remove the LCD Shield Plate and the LCD Module.
Install the LCD Module so that it is exactly horizontal, and route
the lead wires properly in the LCD Upper Housing.
Disassembly and Assembly
LCD Shaft A
C.B.P-Tite 2x8 F/ZN-3C (x6)
Torque: 0.15 ± 0.05N
LCD Shield Plate
LCD Module
Removal of Exterior Parts
Coil Spring Clutch
LCD Assy

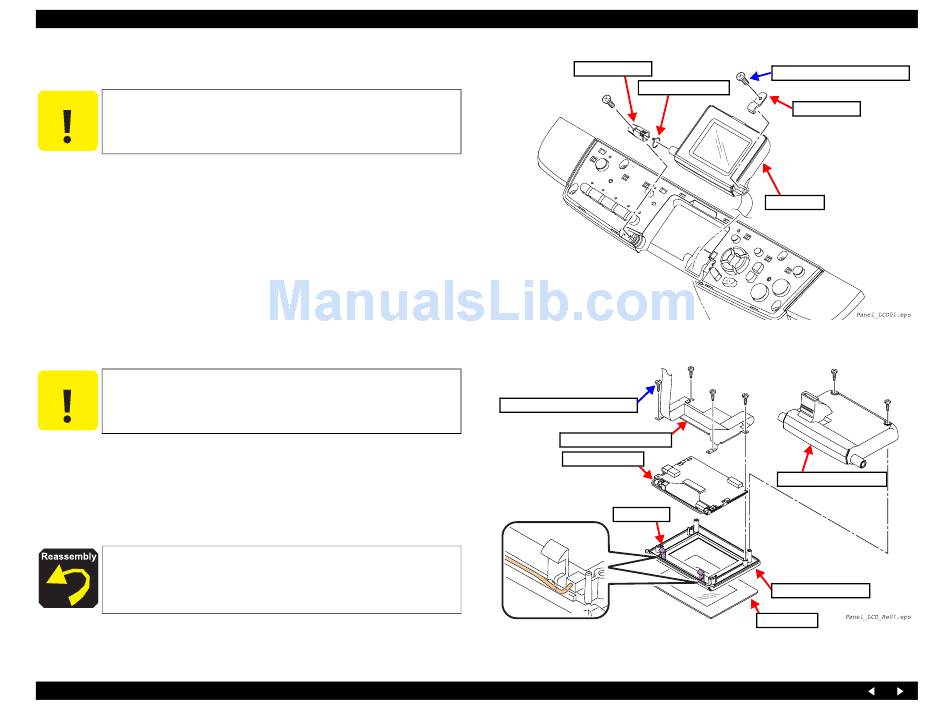

Figure 4-2. Removing the LCD Assy
⋅
m
Hooks (x2)
LCD Cover
Figure 4-3. Disassembling the LCD Assy
Revision A
C.B.P-Tite 3x8 F/ZN-3C (x2)
⋅
Torque: 0.6 ± 0.1N m
LCD Shaft B
LCD Lower Housing
LCD Upper Housing
