2.2.5.3 CD-R Mechanism Explanation

The CD-R Mechanism is as follows: When the CD-R Guide Assy is drawn out toward
the front, its position is detected by the CD-R Sensor 2 (Front). Then the APG Assy
widens the platen gap to the PG++ position so that the CD-R Tray can be loaded.
The CD-R Mechanism is driven as follows: The CD-R Tray inserted by hand is loaded
and ejected by the driving force transmitted from the PF Motor to the PF Roller and
Paper Eject Rollers (x2). (See Figure 2-15)
CD-R Guide is retracted
CD-R Sensor 2
CD-R Link Lever
CD-R Guide is open

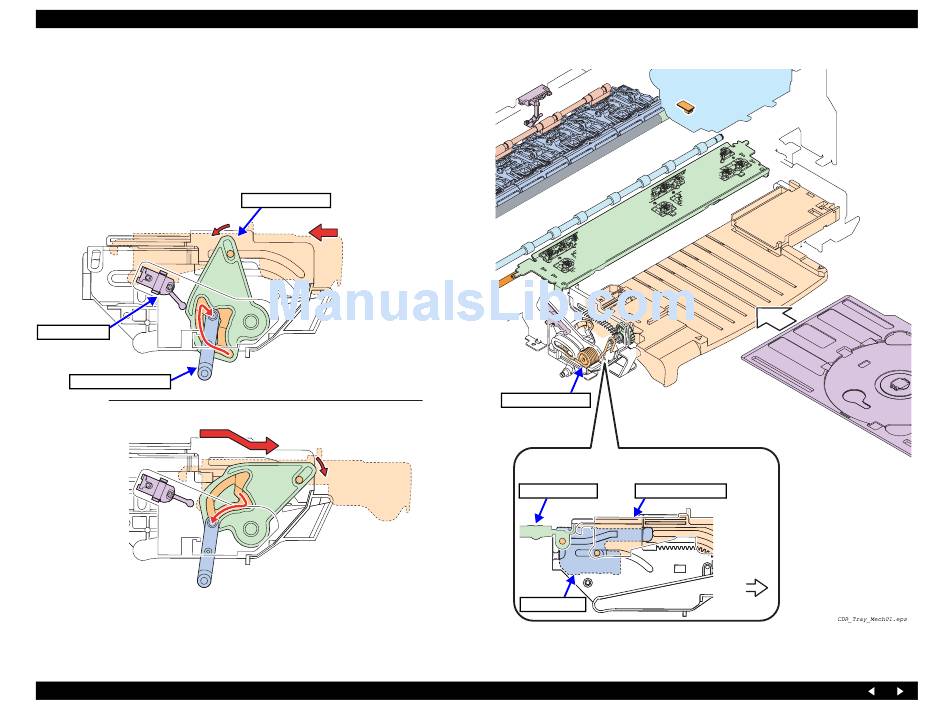

Figure 2-17. Detection of CD-R Guide Position
Operating Principles
CD-R Right Cam
The CD-R Link Lever locks the CD-R Guide
Assy with the CD-R Right Cam in the position
shown, which is detected by the sensor.
To draw out the CD-R Guide, push the CD-R
Guide Assy inward slightly. Then the CD-R
Guide Assy is unlocked from the CD-R Link
Lever and locked in the position shown.
Mechanism Operating Principles
Torsion spring (x2)
Slides to the front by
the force of the right
and left springs
The E/J Frame and the CD-R Guide operate connected
with each other by the right and left EJ Links.
EJ Frame Assy CD-R Guide Assy
Left EJ Link
Figure 2-18. CD-R Mechanism
Revision A
Front
