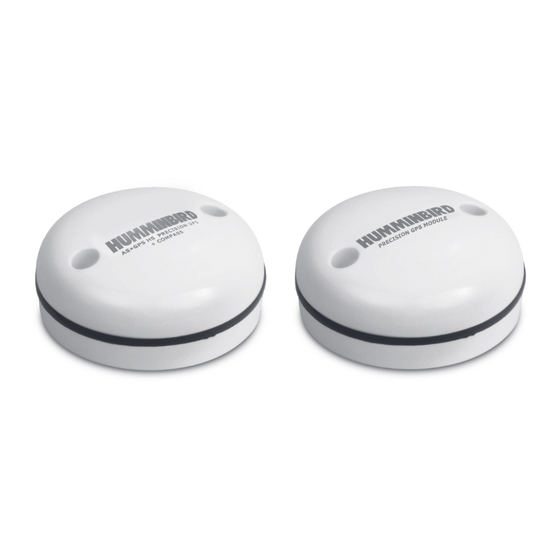

Humminbird AS GR16 Operation Manual
Gps receiver and heading sensor
Hide thumbs
Also See for AS GR16:
- Accessories manual (60 pages) ,
- Accessories manual (66 pages) ,
- Installation manual (48 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Humminbird AS GR16
Summary of Contents for Humminbird AS GR16
- Page 1 GPS Receiver Heading Sensor Operations Guide 532730-1EN_A...
- Page 2 Service Policy. For complete details, see the separate warranty card included with your accessory. We encourage you to read this operations manual carefully in order to get full benefit from all the features and applications of your Humminbird product.
- Page 3 State as examined and the product is compliant with Article 10(10) as it has no restrictions on putting into service in all EU member states. 700 Series™, 800 Series™, 900 Series™, 1100 Series™, Humminbird®, HumminbirdPC™, X-Press™ Menu, SmartCast®, and WeatherSense® are trademarked by or registered trademarks of Johnson Outdoors Marine Electronics, Inc.
-
Page 4: Table Of Contents
Finding the Cause of Noise ........31 Baud Rate ....8 (for devices connected to pigtail only) 3. Confirm the Heading Sensor Operation Contact Humminbird ......... 8 (Heading Sensors only [AS GPS HS]) Menu System Overview Open the Main Menu ..........10 Open an X-Press Menu .......... -
Page 5: Overview
Installation Guide Installation Guide NOTE: The stem mount is not included. To purchase extension cables and other accessories, see our Web site at humminbird.com or call Humminbird Technical Support at 1-800-633-1468. The following functionality will be supported by your trackplotter when it is connected to the Sensor: Δ... - Page 6 True North. If you have trailered the boat to a new location, the compass’ operation may also be affected by a different magnetic zone. The Humminbird control head compensates for magnetic declination and also allows you to make additional adjustments from the menu system.
-
Page 7: Getting Started
(such as checking the GPS reception) you will use each time you hit the water. | Power On and Confirm GPS Reception Follow the instructions below to power on your Humminbird control head. SOLIX Series... -
Page 8: Turn On Nmea Output And Confirm The
38400. See your device’s installation guide to set the baud rate to 38400. Δ If a GPS Receiver (AS GR16, AS GR50, AS GRP) is connected to the control head, and NMEA Output is turned on, the control head will operate exclusively at a baud rate of 4800. - Page 9 SOLIX Series Cont. HELIX Series Cont. If the procedure failed: If the Heading digital readout is 8. Navigate the boat in a straight line, in calm, open water significantly different than the COG, the Heading Sensor at 4.5 mph. Compare the Heading digital readout on the might be installed in a location with too much magnetic screen with the Course (COG) digital readout.
-
Page 10: Menu System Overview
The Settings tool provides main menu settings for the control The main menu is divided into tabbed categories (Alarms, head. Sonar, Navigation, Chart, Humminbird Chart, Setup, Views, and Accessories). The available tabs and menus are determined by your model and the connected accessories. -
Page 11: Open An X-Press Menu
Open an X-Press Menu The X-Press Menu displays menus that are related to the on-screen view and the operations mode (such as navigation). SOLIX Series HELIX Series Open an X-Press Menu Open the X-Press Menu 1. With a view displayed on-screen, tap the view name in 1. -
Page 12: Select A Menu Or Start An Action
Select a Menu or Start an Action SOLIX Series HELIX Series Use the following instructions to change a menu setting or Use the Cursor Control key to select a menu in the Main Menu start an action through the menu system. or X-Press Menu. -
Page 13: Tips For Using The Menu System
Tips for Using the Menu System SOLIX Series HELIX Series Action ( > ) Jump to the bottom of the tab Touch Screen Keypad Press On/Off Button Touch Screen Keypad Press Slider Touch Screen Keypad Jump to the Press and hold or slide Turn Press top of the tab... -
Page 14: Tips For Using The On-Screen Keyboard
Tips for Using the On-Screen Keyboard (SOLIX Series only) Use the on-screen keyboard to rename the control head in the network, edit your navigation data, and more. arrows move the cursor name field right or left deletes a single character starts a new line uppercase... -
Page 15: Change The User Mode
Change the User Mode SOLIX Series HELIX Series The SOLIX control head is automatically set to Angler Mode The User Mode determines how many menus are shown in the (recommended), which is configured with the best settings menu system. Select Angler to see fewer menus that are used for a wide range of fishing conditions. -
Page 16: Views
Combo View. For details about the navigation views and menu options, see your control head operations manual and the Waypoint Management Guide. The manuals are included on the CD that was included with your control head, or you can download these manuals from our Web site at humminbird.com. Bird’s Eye View (HELIX Series only) Bird’s Eye View shows a 3-D, perspective view of the track from a point above and behind the boat (the eye point). -
Page 17: Chart View
Chart View Chart View shows the current track (also known as the position history or breadcrumb trail) showing where the boat has been, along with saved tracks, waypoints, and the current route (when navigating). Panning: Use the 4-WAY Cursor Control key (HELIX) or the Joystick (SOLIX) to move the grid around on the display in the direction of the key being pressed. -
Page 18: Combo View
Combo View Combo View is displayed as a split screen, with Chart View on one side and Sonar View on the other side of the screen. Combo View (SOLIX) depth speed of boat course over ground chart window track scale sonar window Combo View (HELIX) water surface... -
Page 19: View Orientation
View Orientation The Chart View and Combo View allow you to choose the orientation of the view. Δ North-Up: The chart is oriented with North up on the display, and the vessel rotates according to its heading or COG (Course Over Ground). -
Page 20: Introduction To Navigation
There are many ways to start navigation or edit navigation data with your Humminbird control head. The instructions in this section review navigation features on the chart views. -
Page 21: Save, Edit, Or Delete A Waypoint
You can clear the Current Track or save it at any time. The current track represents your actual path so far. NOTE: The maximum number of waypoints, routes, and tracks may vary due to your Humminbird control head model. See your control head operations manual for details. - Page 22 Edit a waypoint SOLIX Series HELIX Series 1. Press the HOME key. 1. From the Waypoints submenu, select Edit and press the RIGHT Cursor key to display the saved waypoints list. 2. Select the NAV Data tool. 2. Select the waypoint you want to edit and press the RIGHT 3.
-
Page 23: Navigate To A Waypoint Or Position
Navigate to a Waypoint or Position Navigate to the cursor position SOLIX Series HELIX Series 1. Using the touch screen, tap a waypoint icon and then tap 1. From the Chart or Combo view, use the 4-WAY Cursor Chart in the status bar. Control key to move the cursor to a position or waypoint on the display. -
Page 24: Add A Waypoint Target Or Trolling Grid
Skip a waypoint SOLIX Series HELIX Series 1. During navigation, tap Chart in the status bar. 1. From the Navigation X-Press Menu, select Skip Next Waypoint and press the RIGHT Cursor key. 2. Select Go To. If there is not another waypoint to skip to, navigation will be cancelled. -
Page 25: Save Or Clear A Current Track
Add a Trolling Grid: From the Waypoints submenu, select Grid, and press the RIGHT Cursor key to display the saved waypoints list. Select a waypoint and press the RIGHT Cursor key. The grid can also be rotated to any heading by adjusting the Grid Rotation setting on the Navigation Main Menu. -
Page 26: Edit, Delete, Or Hide Saved Tracks
Clear the current track SOLIX Series HELIX Series 1. With a Chart View displayed on-screen, tap Chart in the 1. From the Navigation X-Press Menu, select Clear Current status bar. Track, and press the RIGHT Cursor key. The track will be removed from the display and 2. - Page 27 Hide or display a saved track SOLIX Series HELIX Series 1. Press the HOME key. 1. From the Saved Tracks submenu, select Edit, and press the RIGHT Cursor key to display the saved tracks list. 2. Select Nav Data tool. 2.
-
Page 28: Navigation Alarms Overview
Navigation Alarms Overview When an alarm is turned on, an alert will sound or display on the control head to indicate the threshold has been exceeded. When the Sensor is connected to the trackplotter, the following menu options will be added to your control head: Off Course Alarm, Arrival Alarm, and Drift Alarm. - Page 29 Chart View with Alarm Overlays Displayed (SOLIX) off course limits arrival circle Off Course Alarm and Arrival Circle (HELIX) arrival circle off course limits Navigation Alarms...
-
Page 30: Troubleshooting
Troubleshooting Before contacting Humminbird Technical Support, please read the following section. Taking the time to review these troubleshooting guidelines may allow you to solve a performance problem yourself, and therefore avoid sending your unit back for repair. Fishing System Doesn’t Power Up If your Fishing System doesn’t power up, use the Installation Guide that also comes with it for specific confirmation details, making... -
