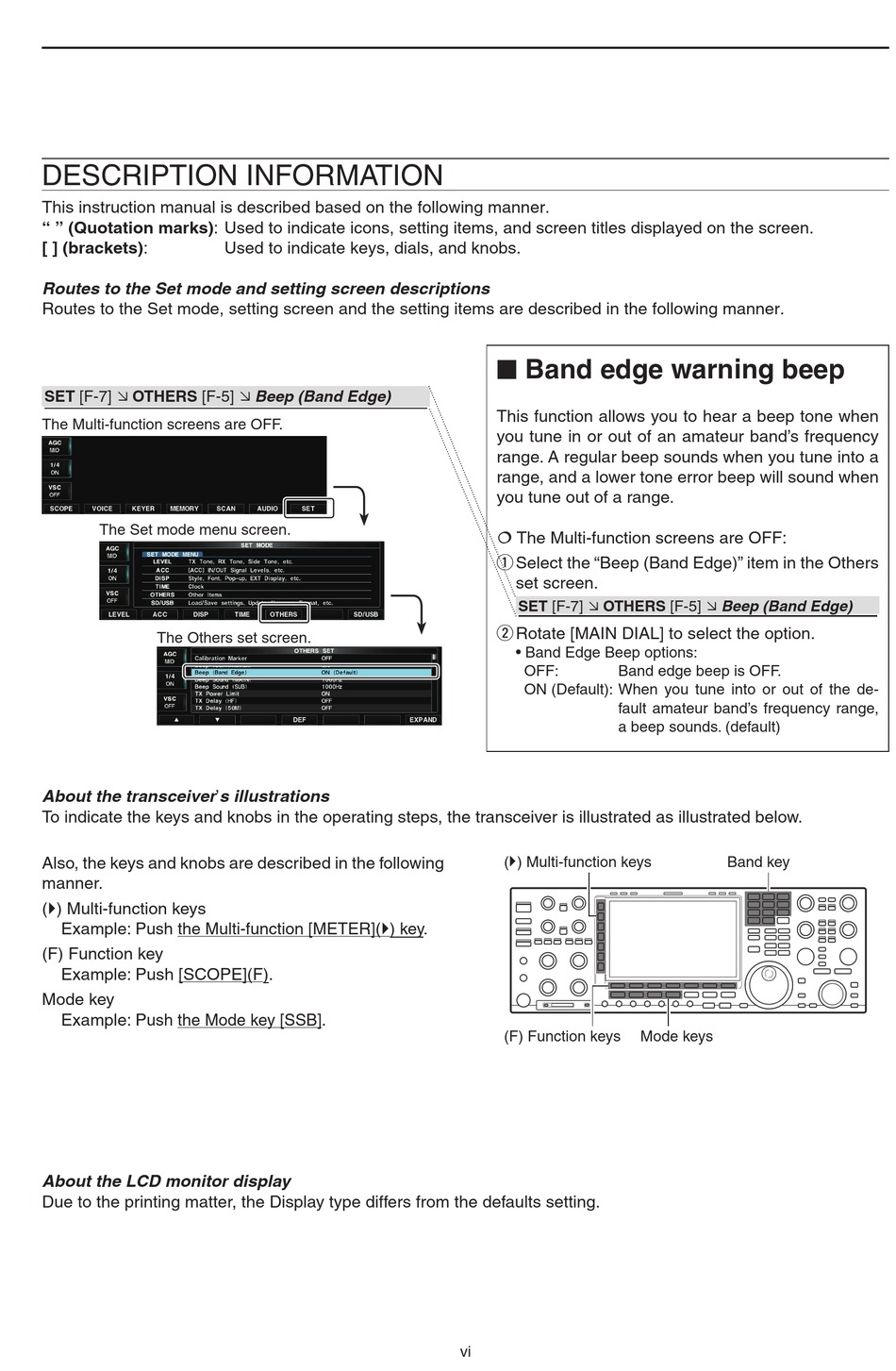

DESCRIPTION INFORMATION
This instruction manual is described based on the following manner.
" " (Quotation marks): Used to indicate icons, setting items, and screen titles displayed on the screen.
[ ] (brackets):
Routes to the Set mode and setting screen descriptions
Routes to the Set mode, setting screen and the setting items are described in the following manner.
SET [F-7]  OTHERS [F-5]  Beep (Band Edge)
The Multi-function screens are OFF.
The Set mode menu screen.
The Others set screen.
About the transceiver's illustrations
To indicate the keys and knobs in the operating steps, the transceiver is illustrated as illustrated below.
Also, the keys and knobs are described in the following
manner.
() Multi-function keys
Example: Push the Multi-function [METER]() key.
(F) Function key
Example: Push [SCOPE](F).
Mode key
Example: Push the Mode key [SSB].
About the LCD monitor display
Due to the printing matter, the Display type differs from the defaults setting.
Used to indicate keys, dials, and knobs.
Band edge warning beep
■
This function allows you to hear a beep tone when
you tune in or out of an amateur band's frequency
range. A regular beep sounds when you tune into a
range, and a lower tone error beep will sound when
you tune out of a range.
 The Multi-function screens are OFF:
Select the "Beep (Band Edge)" item in the Others
q
set screen.
SET [F-7]  OTHERS [F-5]  Beep (Band Edge)
Rotate [MAIN DIAL] to select the option.
w
• Band Edge Beep options:
OFF: Band edge beep is OFF.
ON (Default): When you tune into or out of the de-
fault amateur band's frequency range,
a beep sounds. (default)
() Multi-function keys
(F) Function keys
vi
Band key
Mode keys
