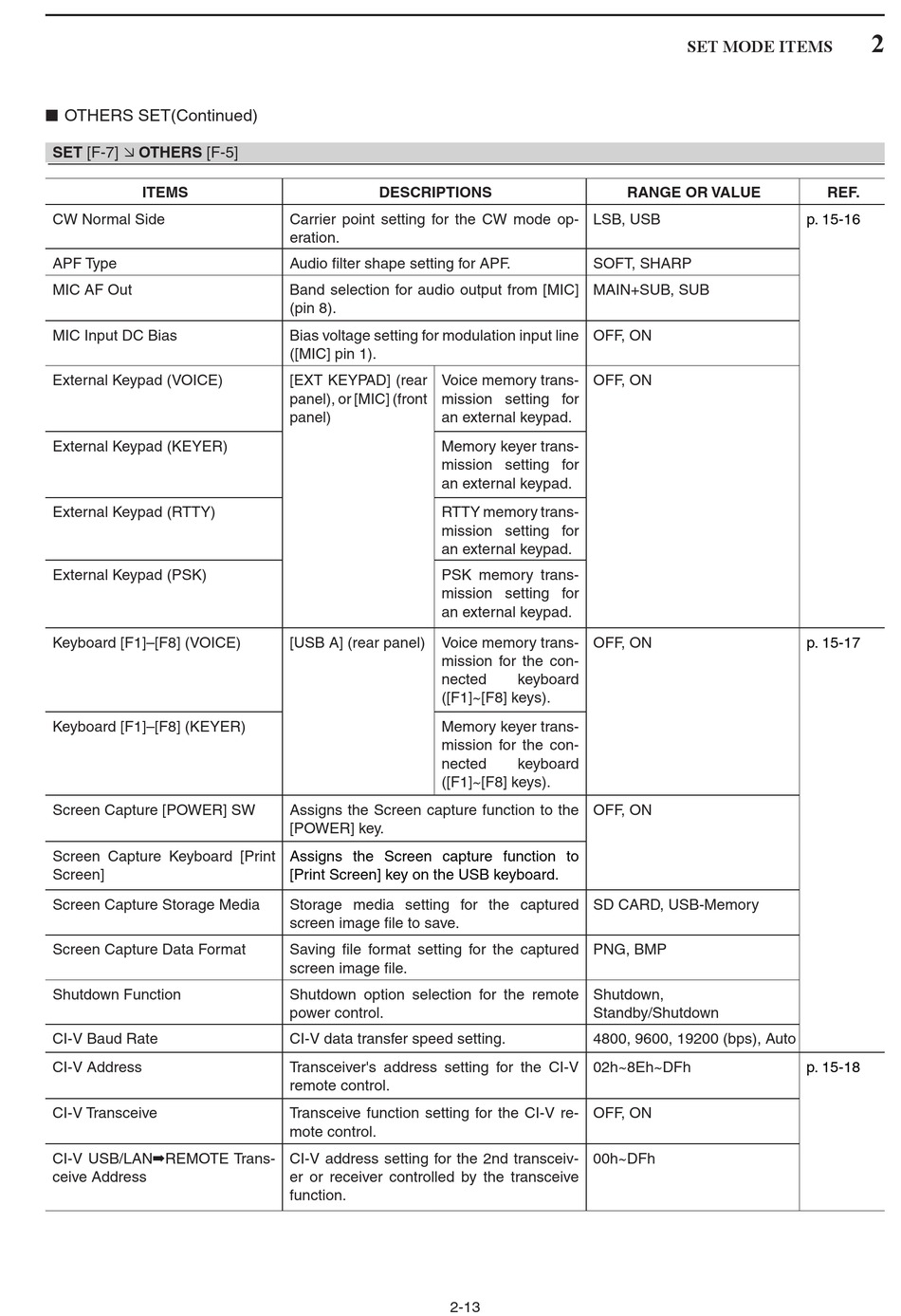

Icom IC-7850 Instruction Manual page 45

OTHERS SET(Continued)
■
SET [F-7]  OTHERS [F-5]
ITEMS
CW Normal Side
APF Type
MIC AF Out
MIC Input DC Bias
External Keypad (VOICE)
External Keypad (KEYER)
External Keypad (RTTY)
External Keypad (PSK)
Keyboard [F1]–[F8] (VOICE)
Keyboard [F1]–[F8] (KEYER)
Screen Capture [POWER] SW
Screen Capture Keyboard [Print
Screen]
Screen Capture Storage Media
Screen Capture Data Format
Shutdown Function
CI-V Baud Rate
CI-V Address
CI-V Transceive
CI-V USB/LAN➡REMOTE Trans-
ceive Address
DESCRIPTIONS
Carrier point setting for the CW mode op-
eration.
Audio filter shape setting for APF.
Band selection for audio output from [MIC]
(pin 8).
Bias voltage setting for modulation input line
([MIC] pin 1).
[EXT KEYPAD] (rear Voice memory trans-
panel), or [MIC] (front mission setting for
panel) an external keypad.
Memory keyer trans-
mission setting for
an external keypad.
RTTY memory trans-
mission setting for
an external keypad.
PSK memory trans-
mission setting for
an external keypad.
[USB A] (rear panel) Voice memory trans-
mission for the con-
nected
([F1]~[F8] keys).
Memory keyer trans-
mission for the con-
nected
([F1]~[F8] keys).
Assigns the Screen capture function to the
[POWER] key.
Assigns the Screen capture function to
[Print Screen] key on the USB keyboard.
Storage media setting for the captured
screen image file to save.
Saving file format setting for the captured
screen image file.
Shutdown option selection for the remote
power control.
CI-V data transfer speed setting.
Transceiver's address setting for the CI-V
remote control.
Transceive function setting for the CI-V re-
mote control.
CI-V address setting for the 2nd transceiv-
er or receiver controlled by the transceive
function.
2-13
SET MODE ITEMS
RANGE OR VALUE
LSB, USB
SOFT, SHARP
MAIN+SUB, SUB
OFF, ON
OFF, ON
OFF, ON
keyboard
keyboard
OFF, ON
SD CARD, USB-Memory
PNG, BMP
Shutdown,
Standby/Shutdown
4800, 9600, 19200 (bps), Auto
02h~8Eh~DFh
OFF, ON
00h~DFh
2
REF.
p. 15-16
p. 15-17
p. 15-18
