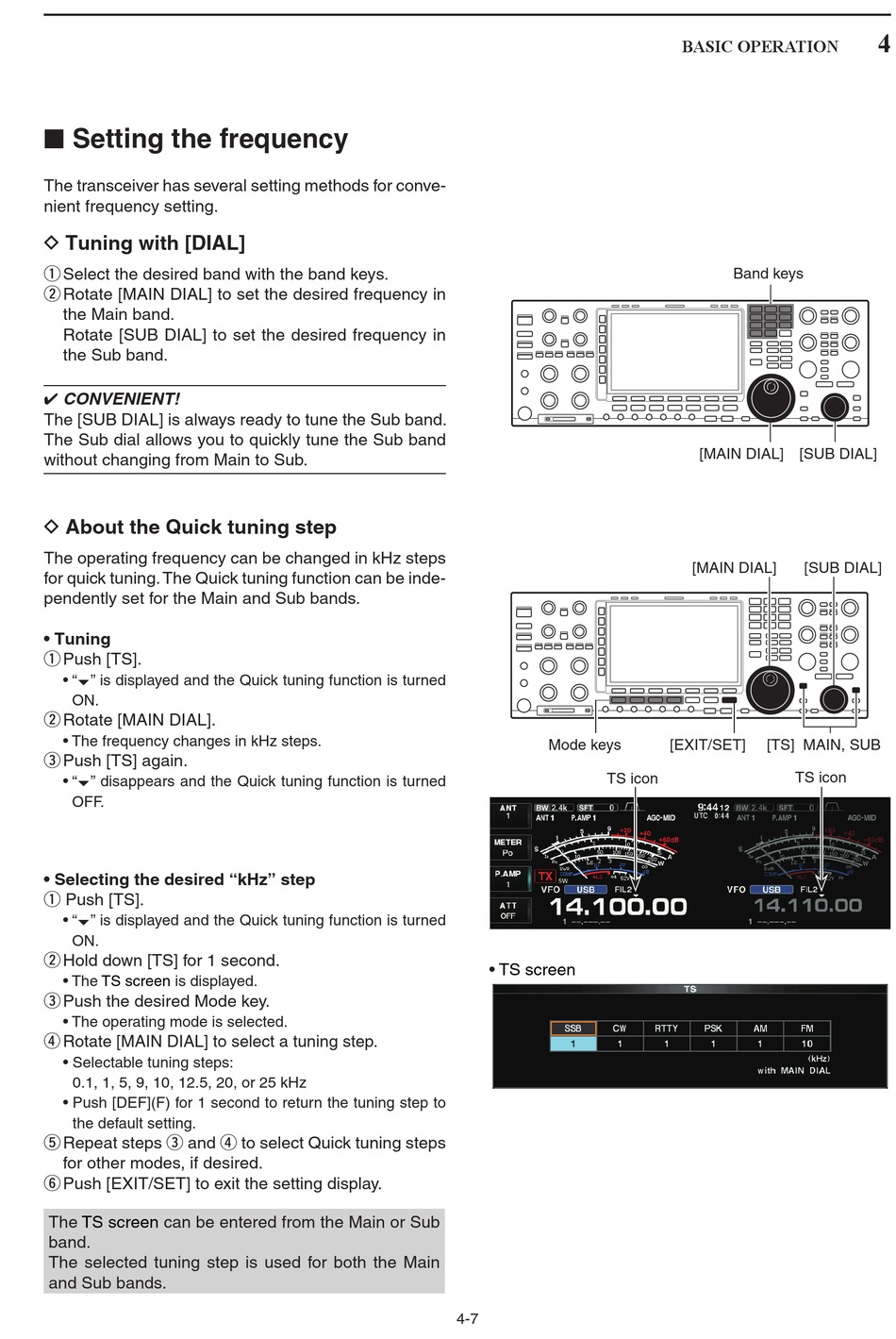

■ Setting the frequency
The transceiver has several setting methods for conve-
nient frequency setting.
D Tuning with [DIAL]
Select the desired band with the band keys.
q
Rotate [MAIN DIAL] to set the desired frequency in
w
the Main band.
Rotate [SUB DIAL] to set the desired frequency in
the Sub band.
✔ CONVENIENT!
The [SUB DIAL] is always ready to tune the Sub band.
The Sub dial allows you to quickly tune the Sub band
without changing from Main to Sub.
D About the Quick tuning step
The operating frequency can be changed in kHz steps
for quick tuning. The Quick tuning function can be inde-
pendently set for the Main and Sub bands.
• Tuning
Push [TS].
q
• "" is displayed and the Quick tuning function is turned
ON.
Rotate [MAIN DIAL].
w
• The frequency changes in kHz steps.
Push [TS] again.
e
• "" disappears and the Quick tuning function is turned
OFF.
• Selecting the desired "kHz" step
q Push [TS].
• "" is displayed and the Quick tuning function is turned
ON.
Hold down [TS] for 1 second.
w
• The TS screen is displayed.
Push the desired Mode key.
e
• The operating mode is selected.
Rotate [MAIN DIAL] to select a tuning step.
r
• Selectable tuning steps:
0.1, 1, 5, 9, 10, 12.5, 20, or 25 kHz
• Push [DEF](F) for 1 second to return the tuning step to
the default setting.
Repeat steps e and r to select Quick tuning steps
t
for other modes, if desired.
Push [EXIT/SET] to exit the setting display.
y
The TS screen can be entered from the Main or Sub
band.
The selected tuning step is used for both the Main
and Sub bands.
Mode keys
TS icon
• TS screen
4-7
BASIC OPERATION
Band keys
[MAIN DIAL] [SUB DIAL]
[MAIN DIAL] [SUB DIAL]
[EXIT/SET] [TS] MAIN, SUB
TS icon
