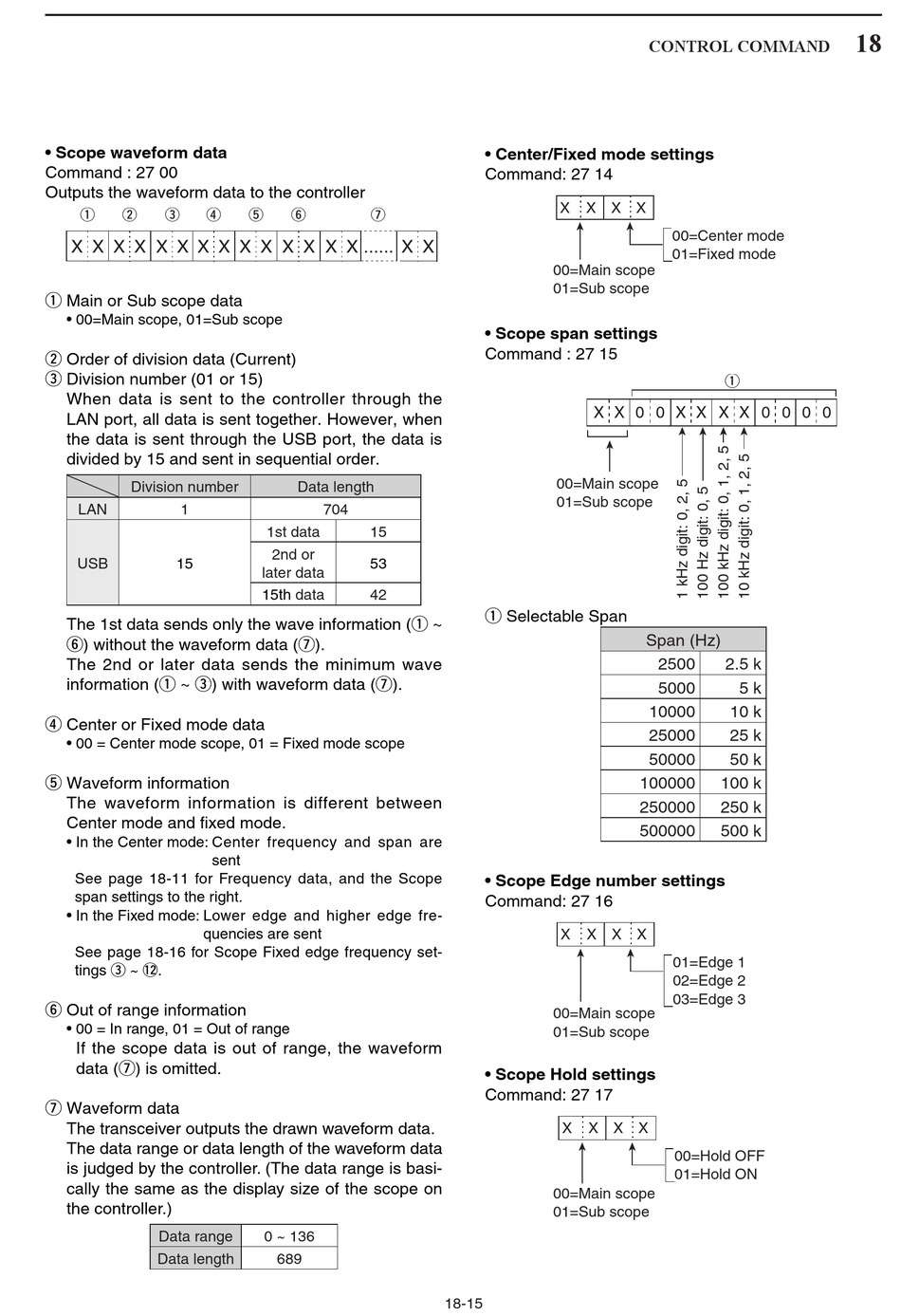

• Scope waveform data
Command : 27 00
Outputs the waveform data to the controller
q w e r
X X X X X X X X
q Main or Sub scope data
• 00=Main scope, 01=Sub scope
w Order of division data (Current)
e Division number (01 or 15)
When data is sent to the controller through the
LAN port, all data is sent together. However, when
the data is sent through the USB port, the data is
divided by 15 and sent in sequential order.
Division number
LAN 1
USB 15
The 1st data sends only the wave information (q ~
y) without the waveform data (u).
The 2nd or later data sends the minimum wave
information (q ~ e) with waveform data (u).
r Center or Fixed mode data
• 00 = Center mode scope, 01 = Fixed mode scope
t Waveform information
The waveform information is different between
Center mode and fixed mode.
• In the Center mode: Center frequency and span are
sent
See page 18-11 for Frequency data, and the Scope
span settings to the right.
• In the Fixed mode: Lower edge and higher edge fre-
quencies are sent
See page 18-16 for Scope Fixed edge frequency set-
tings e ~ !2 .
y Out of range information
• 00 = In range, 01 = Out of range
If the scope data is out of range, the waveform
data (u) is omitted.
u Waveform data
The transceiver outputs the drawn waveform data.
The data range or data length of the waveform data
is judged by the controller. (The data range is basi-
cally the same as the display size of the scope on
the controller.)
Data range
Data length
t y u
X X X X X X ...... X X
Data length
704
1st data 15
2nd or
53
later data
15th data 42
0 ~ 136
689
• Center/Fixed mode settings
Command: 27 14
X X X X
00=Main scope
01=Sub scope
• Scope span settings
Command : 27 15
X X 0 0 X X X X 0 0 0 0
00=Main scope
01=Sub scope
q Selectable Span
• Scope Edge number settings
Command: 27 16
X X X X
00=Main scope
01=Sub scope
• Scope Hold settings
Command: 27 17
X X X X
00=Main scope
01=Sub scope
18-15
CONTROL COMMAND
00=Center mode
01=Fixed mode
q
Span (Hz)
2500 2.5 k
5000 5 k
10000 10 k
25000 25 k
50000 50 k
100000 100 k
250000 250 k
500000 500 k
01=Edge 1
02=Edge 2
03=Edge 3
00=Hold OFF
01=Hold ON
