All functions are listed in the following table
Function
Trigger
Incremental decoder
Opto-
Input Signal
koppler
Triggers
All inputs configured as triggers are linked by AND. If several inputs are being used as
triggers, a high signal must be present on all inputs in order to generate a trigger
signal. The polarity for each signal can be set separately via the inverting inputs.
The camera must be set to „external triggering" to trigger image capture by the trigger
signal.
ExTriggerEna
Input 1
Input 2
Input 3
Inc. Trigger
18
Input 1 Input 2
x x
INC0 INC1
Input
Polarity
Input
Input State

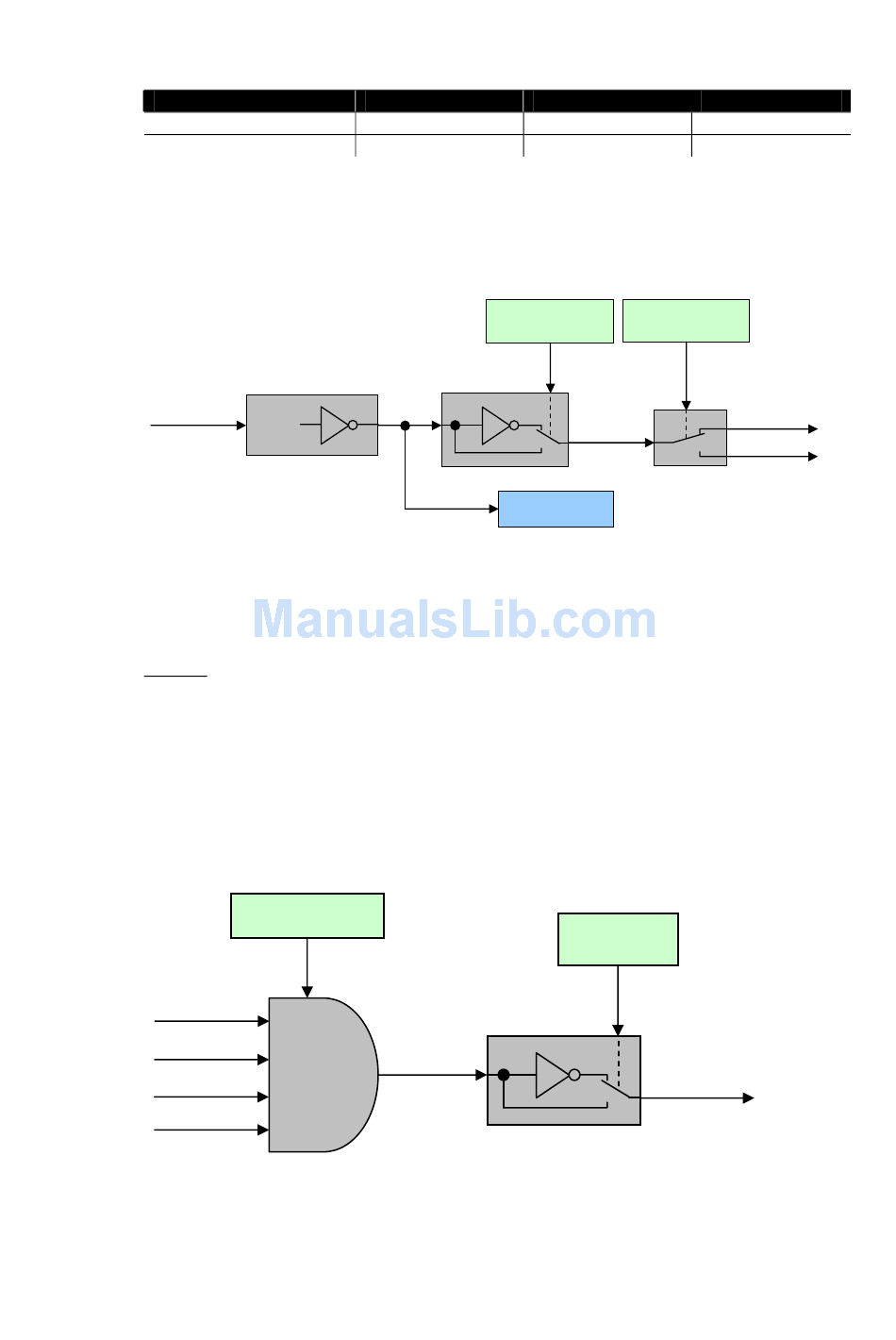

Figure 13 Block diagram of the inputs
Figure 14 Trigger inputs
Input 3
x
INC Rst
Input
Funktion
Trigger
Inc. In
Trigger
Polarity
ExTrigger
