Input voltage of 12V is recommended to make most efficient use of the camera.
The camera does not supply voltage to the FireWire™ bus if it is being receiving power
via the HiRose plug.
6.5

Control and video data signals

The camera has 3 inputs and 3 outputs. These can be configured via matching registers
(see section
6.5.1

Inputs

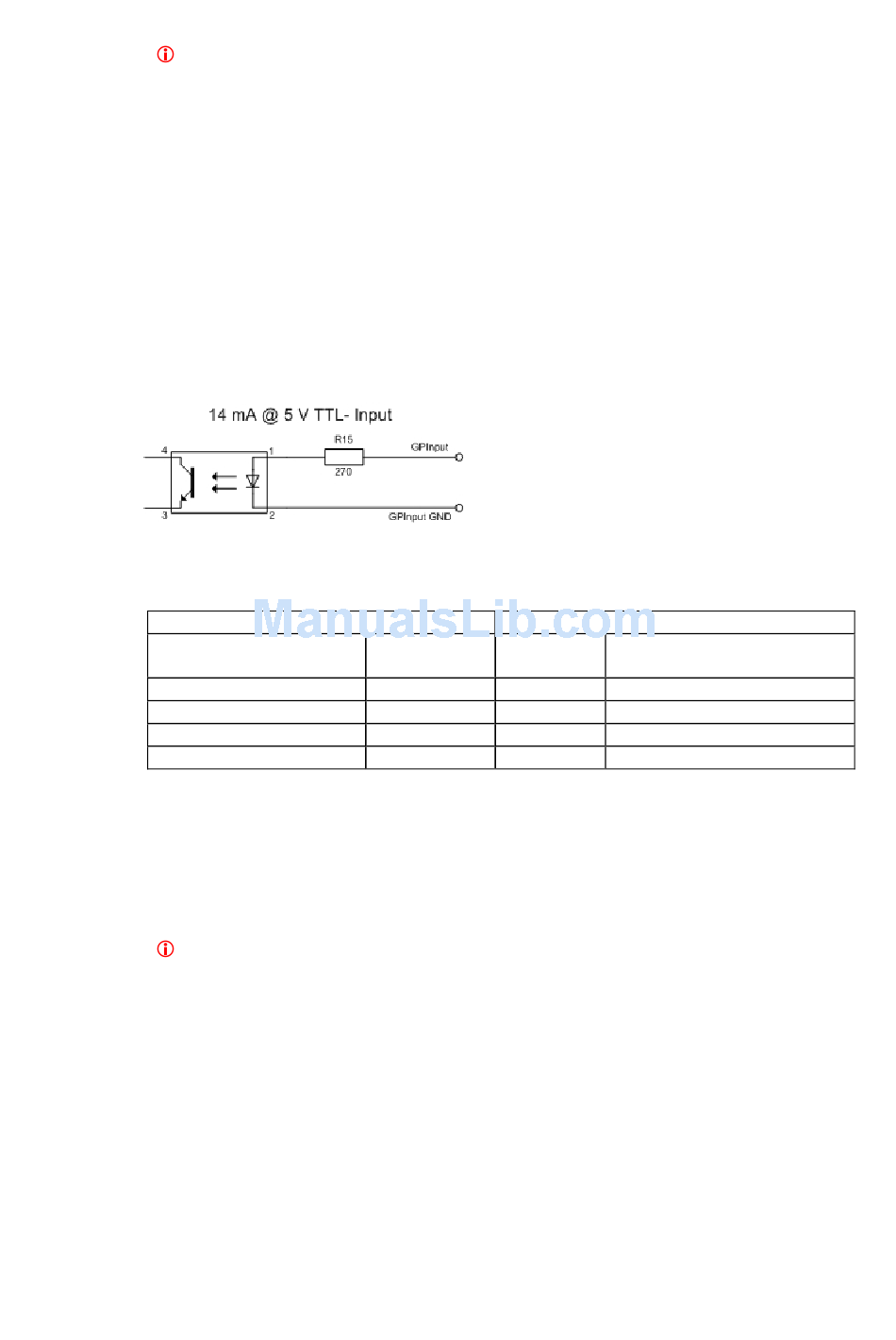

All inputs have been implemented as shown on the diagram. IO_INP_CTRL1Polarity is
controlled via the IO_INP_CTRL1..3 register (see section IO_INP_CTRL1)
Flux voltage from LED type 1.2V at 20 mA
min. on-current:
max. off-current:
max. current:
max. input frequency:
min. pulse width:
The inputs can be connected directly to +5V. If higher voltage is used an external
resistor will have to be placed in series.
+12 V
+24 V
Warning: Voltage above +45V may damage the optical coupler.
All input signals (Input 1...3) are inverted by the optical coupler.
9.2.10 Input/Output pin
Figure 12 Diagram
5 mA
1 mA
50 mA
2 kHz
50 µs
470 Ω
1.2 kΩ
control). The different modes are described below.
Cycle delay of the optical coupler
tpdHL:
tpdLH: 780 ns
38 µs
