3.2 Downloading using the WSD

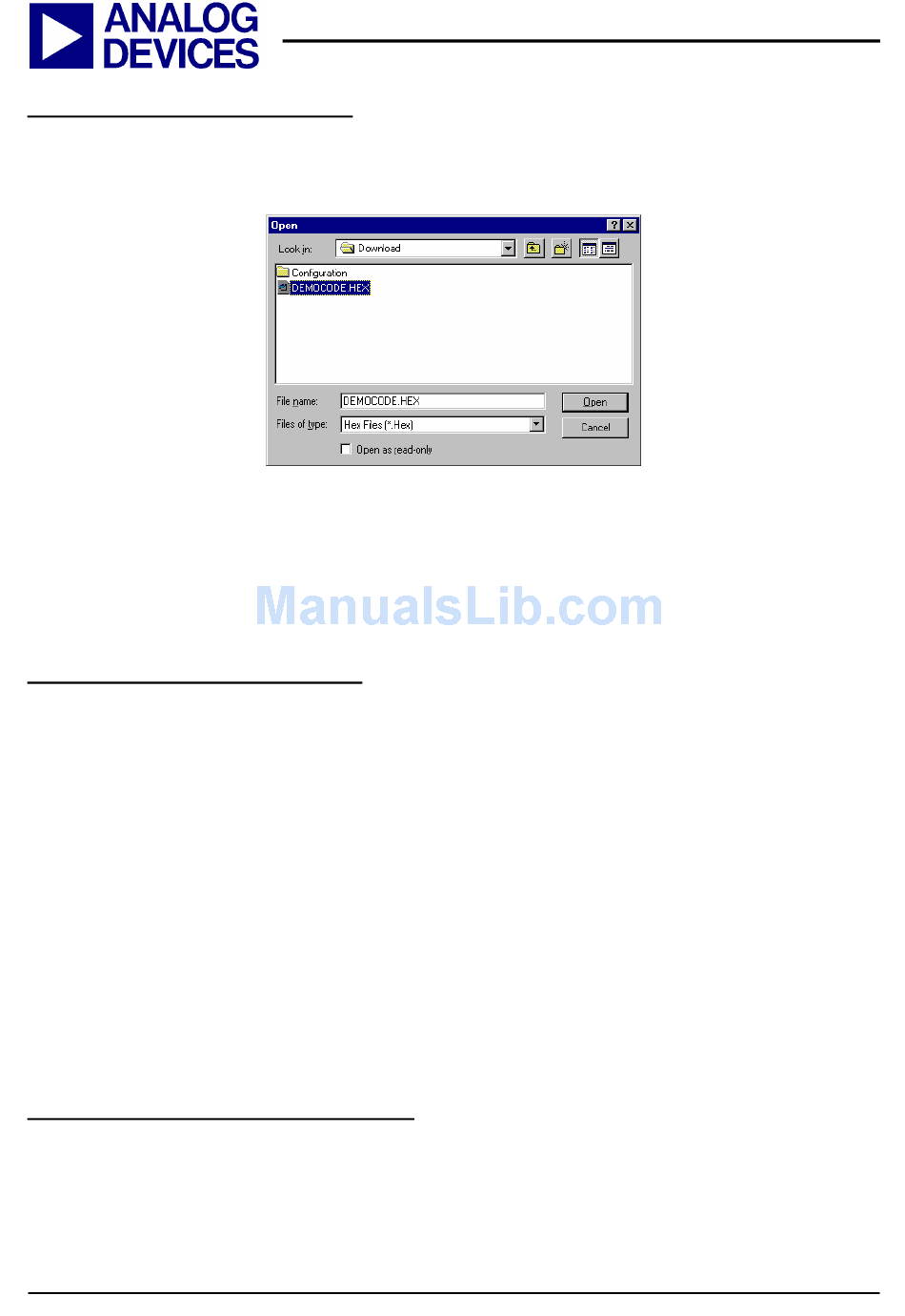

4. Click the Download Button. Select the file at C:\ADuC\Download\DemoCode.hex. Double
click on the selected file or click on 'Open' to download the file.
While the file is downloading a progress bar will appear indicating how much of the file has
been downloaded.
Once the file has been successfully downloaded the progress bar will disappear and the
Status Box will be updated with the message
DOWNLOADING CODE [C:\ADuC\Download\DEMOCODE.HEX]:..........OK
3.3 Running the Downloaded File
Running using the WSD
5. Click on the Run Button. The Status Box is updated with the message.
The program starts running from address 0000h, as can be seen by a flashing LED on the
Evaluation Board.
To perform additional downloads; repeat step 2 and press the RESET button on the WSD.
Manual Run Option.
6. Press RESET on the Evaluation Board with the SERIAL DOWNLOAD switch released (for
the ADuC814 switch S3 to the NORMAL position). The program starts running
automatically after reset as can be seen by the flashing LED.
Note: DemoCode.hex blinks a LED on the eval board. The rate of blinking is reduced each time
the INT0 button is pressed
3.4 Additional Download/RUN Options
The MicroConverter incorporates a serial download protocol that also allows various
Download/RUN options (see uC004 at C:\ADuC\Documentation\TechNotes). These options can be
easily selected in the Configuration window as shown below (the Configuration button can be found
on the front panel of the WSD as shown in 3.1.3 previously). As you can see various Erase,
Download and RUN options exist here.
