Analog Devices ADUC812 Get Started Manual page 10

(4.0) USB-EA E
The USB-EA emulator allows non-intrusive debugging of the ADuC8xx series of devices.
The USB-EA Pod is shipped as part of the Quick Start Plus kits or, it may be purchased separately.
The following parts are supported by the USB-EA emulator:
Note, the ADuC812/814/816/824 are not supported.
The debugger interfaces to the ADuC8xx via a single pin – the EA pin of the ADuC8xx part. To
enter debug mode, the part must first be placed into download mode by toggling the Reset pin while
holding the Serial download pin low. When using the evaluation boards, this involves keeping the
Serial download button pressed while toggling the reset button.

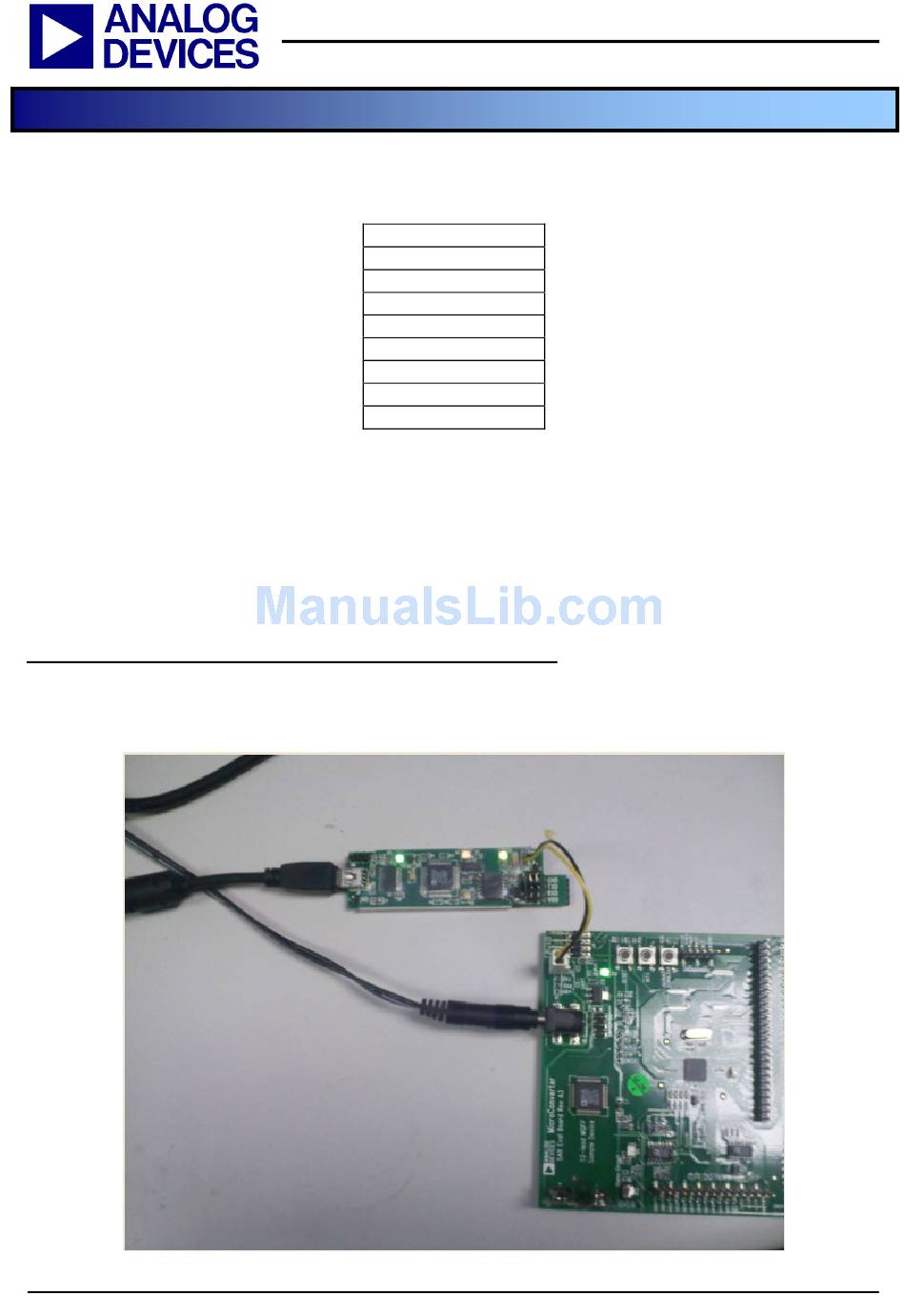

4.1 Connecting the USB-EA emulator to the target board
The pod connects to a PC via a standard mini-USB cable. It connects to a target board via a 2-pin
header. See the pictures below.
REV 1.3
MULATOR FOR
AD
AD
AD
AD C842/AD
U
AD
AD
AD
AD
AD
ADuC8XX GetStarted Guide
AD C8
U XX DEBUGGING
C831
U
C832
U
C841
U
C843
U
C834
U
C836
U
C845
U
C847
U
C848
U
-- 10 --
(4.0) USB-EA Emulator
www.analog.com/microconverter
