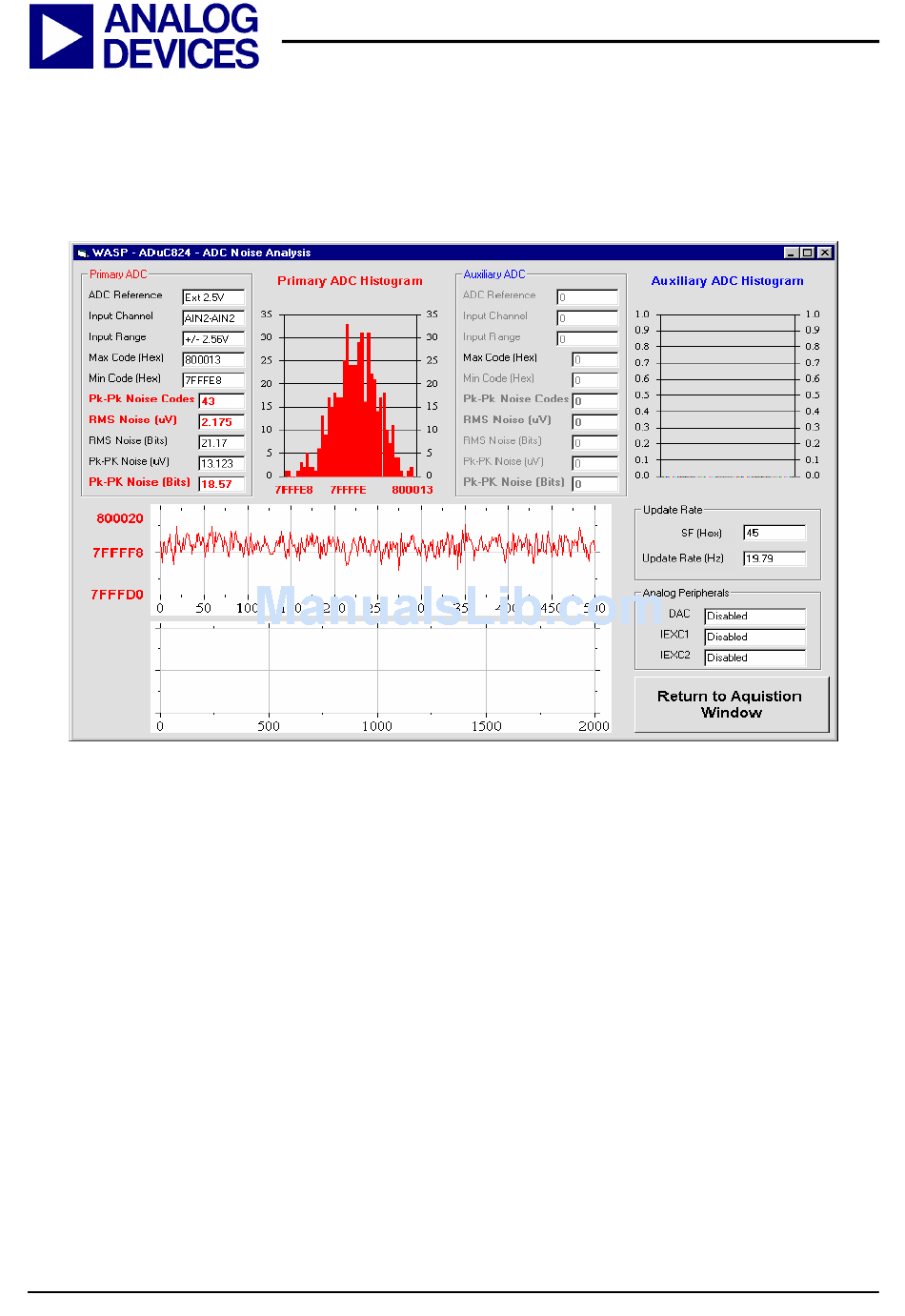

When all the samples are collected the WASP immediately launches the Analysis window.
This window displays some mathematical analysis on the ADC conversions, including RMS
noise (in µV and bits) and Peak-to-Peak Noise (Code Distribution, µV and Bits). The most
important performance figures are highlighted in Red.
12.
Click on the Return to Acquisition Window button in the Noise Analysis window to return to
the acquisition panel.
13.
The functionality of the DAC(s) and general Digital Peripherals can also be exercised via the
options available from the WASP front panel.
