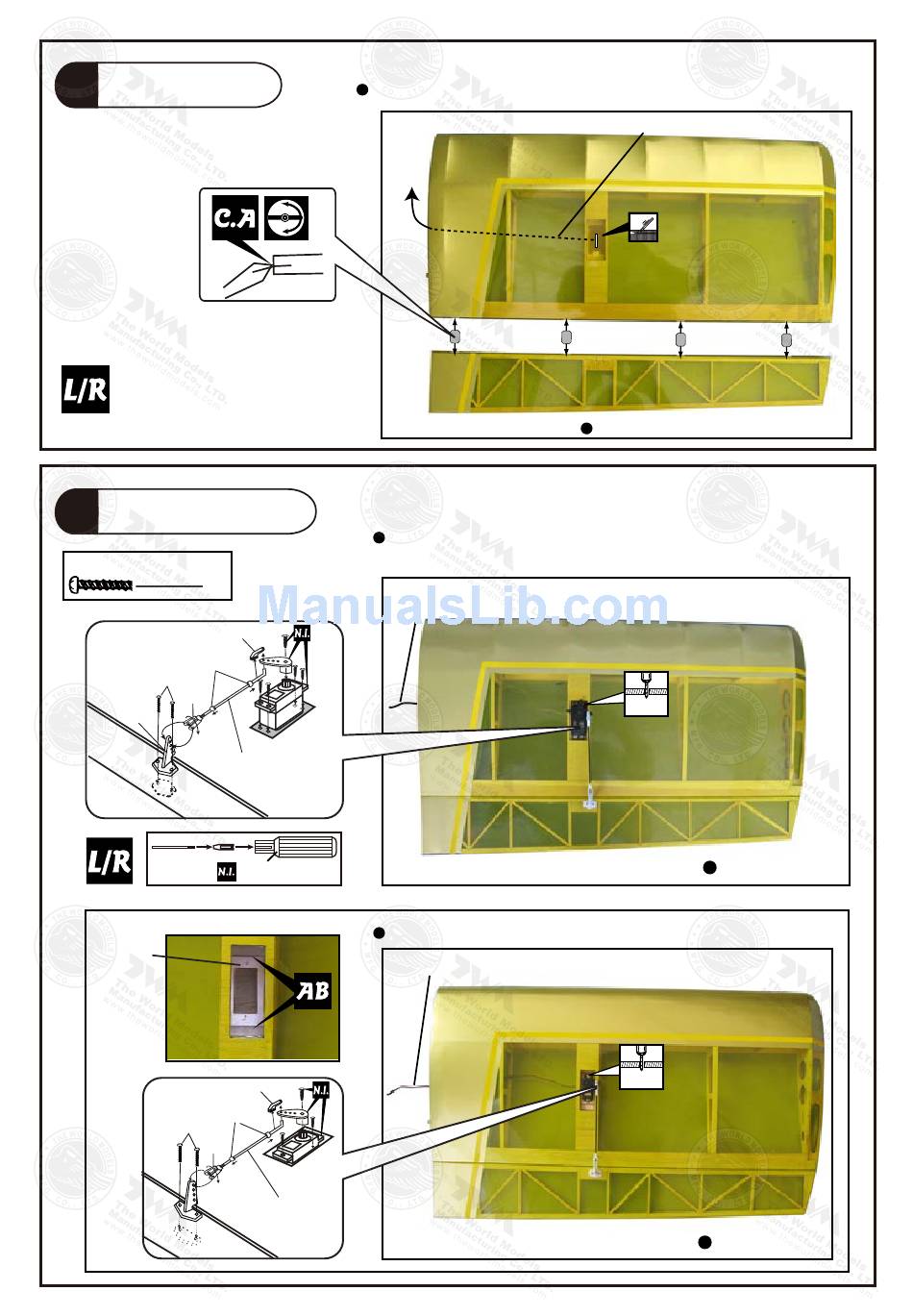

Aileron Servo - THE WORLD MODELS FUN WORLD 40 Instruction Manual

1
Main Wing
2

Aileron Servo

PB2x12mm Screw
4
Straper
Fuel Tube
d5xD6mm
PB2 x 12mm
Clevis
Horn
Pushrod
1.8x125mm
TWM PL8210010
CLEVIS WRENCH
Plywood
2x24x46mm
Fuel Tube
d5xD6mm
PB2 x 12mm
Clevis
Apply instant type CA glue to both sides of each hinge.
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
A.
Aileron Servo Lead
If you choose mini servo, please follow this step.
B.
Aileron Servo Lead
Straper
Pushrod
1.8x125mm
Aileron Servo Lead
Bottom View
P.3
1mm
Bottom View
1mm
Bottom View
