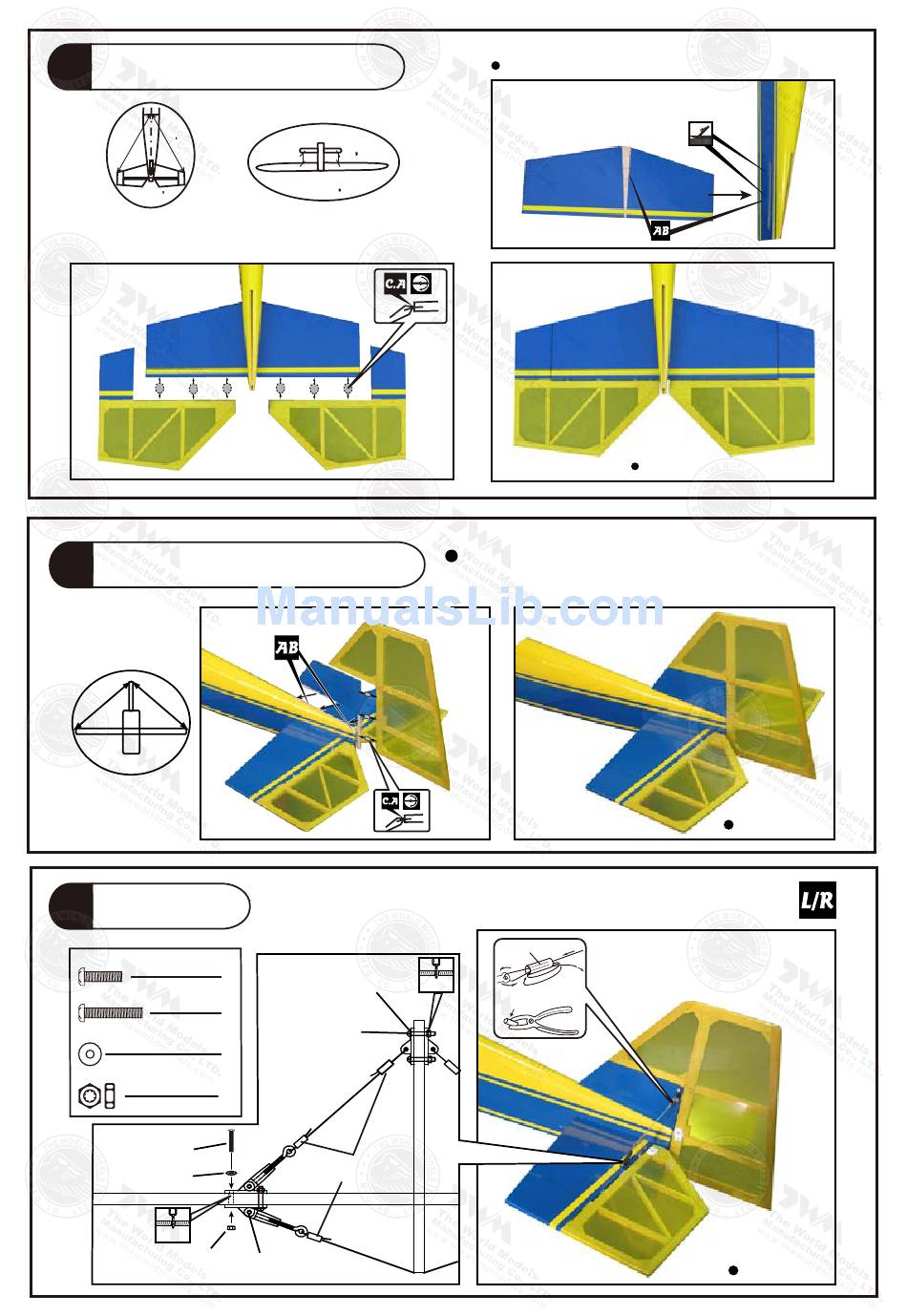

Stabilizer & Elevator
A
A
A=A
Temporary install the main wing, adjust leveling of the stabilizer
to make it as parallel to the main wing as possible. *Also refer
to step 18 Wing Setting.
2
4
Vertical Fin & Rudder
1
C C'
C=C'
5
Flying Wire
PM2x6mm Screw
4
PM2x12mm Screw
6
d2xD5mm Washer
6
M2 Nut
6
PM2x12mm
Screw
d2xD5mm
Washer
2mm
M2 Nut
(Stabilizer)
B B
(Main Wing)
B=B
d2xD5mm
Washer
PM2x12mm
Screw
Copper Tube
d2.5xD3.2x8mm
PM2x6mm
Screw
Apply instant type CA glue to both sides of each hinge.
1
3
Apply instant type CA glue to both sides of each
hinge.
2
Copper Tube
2mm
Press down the center
1/3 portion
P.4
Completed
Completed
Completed
