Printronix P5000 Maintenance Manual page 172

Chapter 5
Section I: Replacement Procedures
P106 Connector Configuration
19 17 15 13 11 9
POD CCF
PMD LRP
20 18 16 14 12 10
CCF = Card Cage Fan
LRIB M = Left Ribbon Motor
LRP = Left Ribbon Guide
PLAT M = Platen Open Motor
PMD = Paper Motion Detector (Switch)
POD = Paper Out Detect (Switch)
Typical 2-Wire
Cable Connector
Key Tab Slot
Push here to
remove the
coupling shroud
from the controller
board.

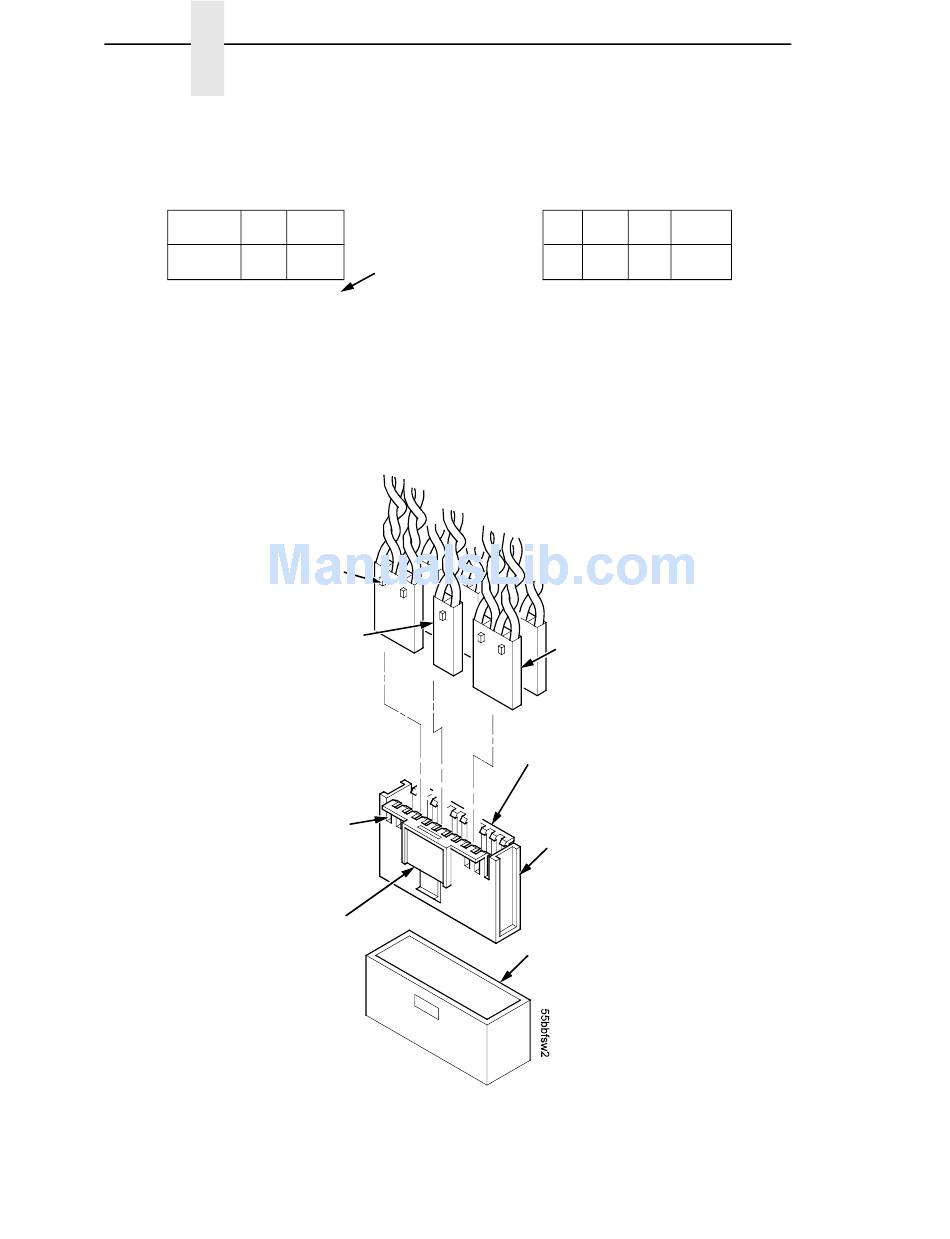

Figure 22. Cable Connector Coupling Shroud, Disassembly/Assembly
172
Connectors are viewed
7 5 3 1
from the top, as seen
when plugged into
PLAT M
controller board.
LRIB M
Pin No.
8 6 4 2
Key Tab
P107 Connector Configuration
19 17 15 13 11 9 7 5 3 1
MPU PLO EHF PAPR M
CVO RRP HBF RRIB M
20 18 16 14 12 10 8 6 4 2
EHF* = Exhaust Fan
HBF = Hammer Bank Fan
JMP = Jumper Wire
MPU = Magnetic Pickup
PAPR M = Paper Feed Motor
PLO = Platen Open (Switch)
RRIB M = Right Ribbon Motor
RRP = Right Ribbon Guide
* JMP on pedestal models: used as a
spacer
Typical 4-Wire
Cable Connector
Pull the sides outward just
enough to release the
connector key tab from the
slot in the connector
coupling shroud.
Connector coupling
shroud P106 / P107
P/N 202362-901
J106 or J107 on
Controller Board
