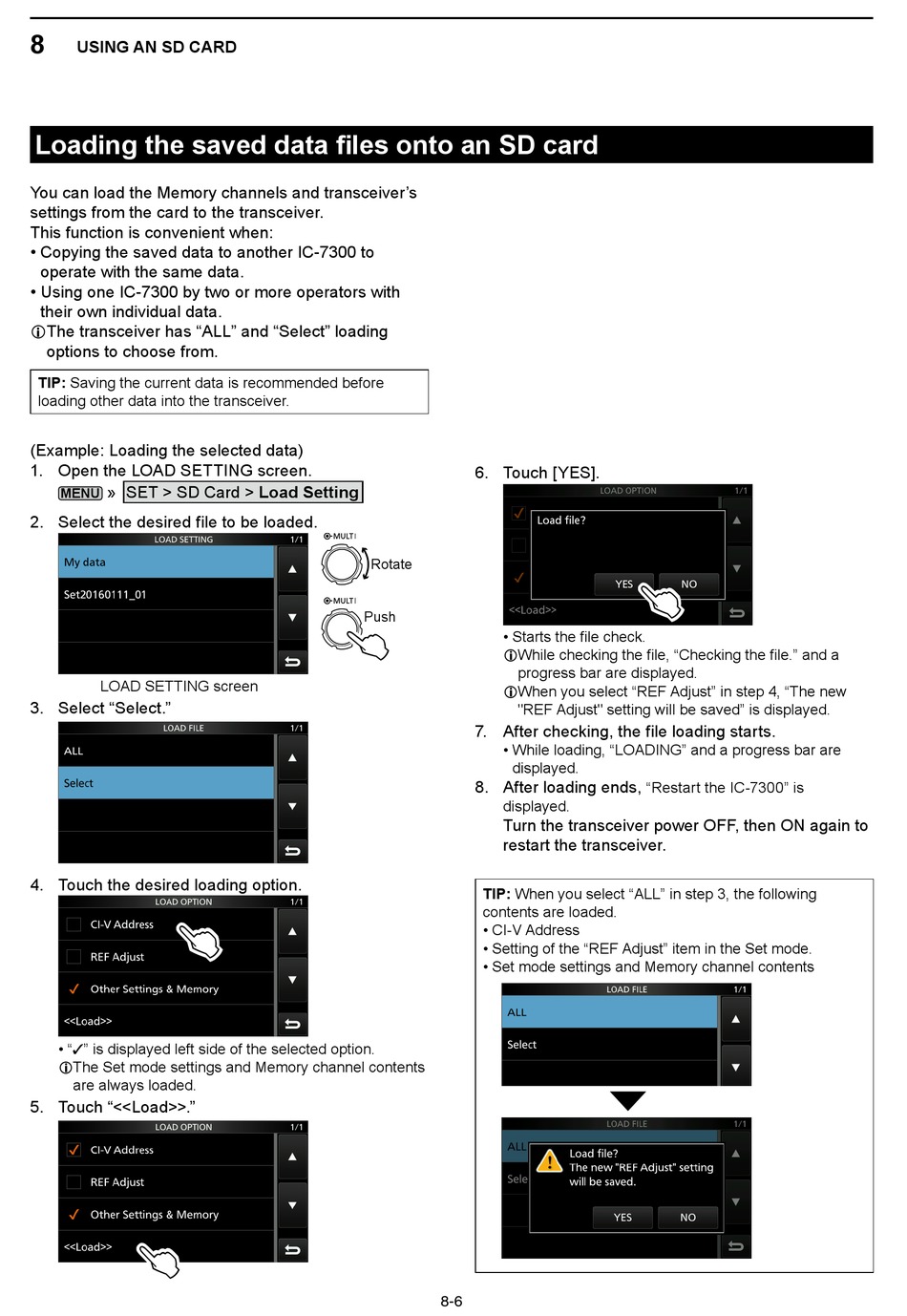

Loading The Saved Data Files Onto An Sd Card - Icom ic-7300 Full Manual

8
USING AN SD CARD

Loading the saved data files onto an SD card

You can load the Memory channels and transceiver's
settings from the card to the transceiver.
This function is convenient when:
• Copying the saved data to another IC-7300 to
operate with the same data.
• Using one IC-7300 by two or more operators with
their own individual data.
L The transceiver has "ALL" and "Select" loading
options to choose from.
TIP: Saving the current data is recommended before
loading other data into the transceiver.
(Example: Loading the selected data)
1. Open the LOAD SETTING screen.
» SET > SD Card > Load Setting
MENU
2. Select the desired file to be loaded.
LOAD SETTING screen
3. Select "Select."
4. Touch the desired loading option.
• "✓" is displayed left side of the selected option.
L The Set mode settings and Memory channel contents
are always loaded.
5. Touch "<<Load>>."
6. Touch [YES].
Rotate
Push
• Starts the file check.
L While checking the file, "Checking the file." and a
progress bar are displayed.
L When you select "REF Adjust" in step 4, "The new
"REF Adjust" setting will be saved" is displayed.
7. After checking, the file loading starts.
• While loading, "LOADING" and a progress bar are
displayed.
8. After loading ends,
displayed.
Turn the transceiver power OFF, then ON again to
restart the transceiver.
TIP: When you select "ALL" in step 3, the following
contents are loaded.
• CI-V Address
• Setting of the "REF Adjust" item in the Set mode.
• Set mode settings and Memory channel contents
8-6
"Restart the IC-7300" is
