Icom ic-7300 Full Manual page 124

12

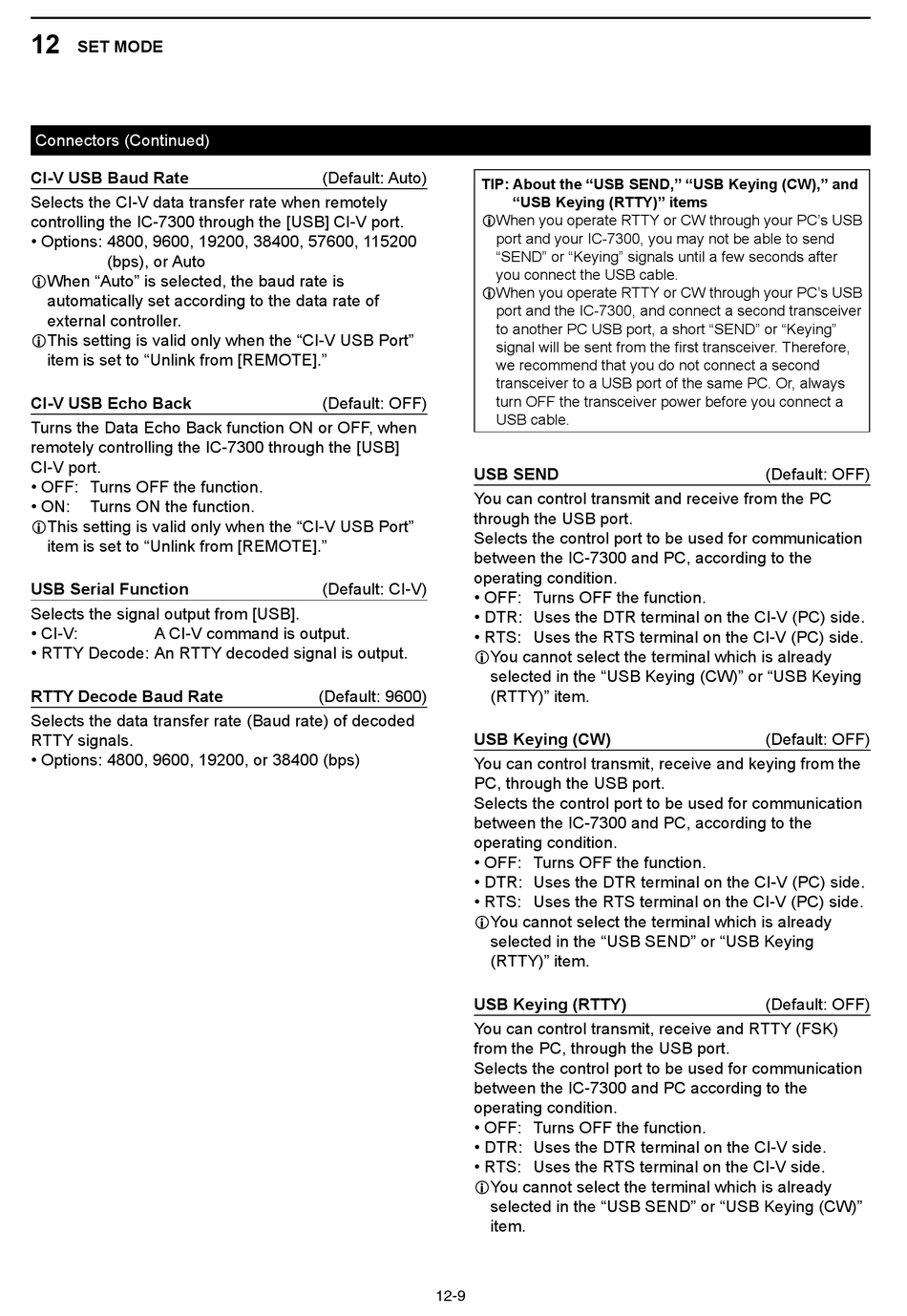

SET MODE
Connectors (Continued)
CI-V USB Bmud Rmte
Selects the CI-V data transfer rate when remotely
controlling the IC-7300 through the [USB] CI-V port.
• Options: 4800, 9600, 19200, 38400, 57600, 115200
(bps), or Auto
L When "Auto" is selected, the baud rate is
automatically set according to the data rate of
external controller.
L This setting is valid only when the "CI-V USB Port"
item is set to "Unlink from [REMOTE]."
CI-V USB Echo Bmck
Turns the Data Echo Back function ON or OFF, when
remotely controlling the IC-7300 through the [USB]
CI-V port.
• OFF: Turns OFF the function.
• ON: Turns ON the function.
L This setting is valid only when the "CI-V USB Port"
item is set to "Unlink from [REMOTE]."
USB Seriml Function
Selects the signal output from [USB].
• CI-V: A CI-V command is output.
• RTTY Decode: An RTTY decoded signal is output.
RTTY Decode Bmud Rmte
Selects the data transfer rate (Baud rate) of decoded
RTTY signals.
• Options: 4800, 9600, 19200, or 38400 (bps)
(Default: Auto)
TIP: About the "USB SEND," "USB Keying (CW)," mnd
L When you operate RTTY or CW through your PC's USB
L When you operate RTTY or CW through your PC's USB
(Default: OFF)
USB SEND
You can control transmit and receive from the PC
through the USB port.
Selects the control port to be used for communication
between the IC-7300 and PC, according to the
operating condition.
(Default: CI-V)
• OFF: Turns OFF the function.
• DTR: Uses the DTR terminal on the CI-V (PC) side.
• RTS: Uses the RTS terminal on the CI-V (PC) side.
L You cannot select the terminal which is already
(Default: 9600)
USB Keying (CW)
You can control transmit, receive and keying from the
PC, through the USB port.
Selects the control port to be used for communication
between the IC-7300 and PC, according to the
operating condition.
• OFF: Turns OFF the function.
• DTR: Uses the DTR terminal on the CI-V (PC) side.
• RTS: Uses the RTS terminal on the CI-V (PC) side.
L You cannot select the terminal which is already
USB Keying (RTTY)
You can control transmit, receive and RTTY (FSK)
from the PC, through the USB port.
Selects the control port to be used for communication
between the IC-7300 and PC according to the
operating condition.
• OFF: Turns OFF the function.
• DTR: Uses the DTR terminal on the CI-V side.
• RTS: Uses the RTS terminal on the CI-V side.
L You cannot select the terminal which is already
12-9
"USB Keying (RTTY)" items
port and your IC-7300, you may not be able to send
"SEND" or "Keying" signals until a few seconds after
you connect the USB cable.
port and the IC-7300, and connect a second transceiver
to another PC USB port, a short "SEND" or "Keying"
signal will be sent from the first transceiver. Therefore,
we recommend that you do not connect a second
transceiver to a USB port of the same PC. Or, always
turn OFF the transceiver power before you connect a
USB cable.
selected in the "USB Keying (CW)" or "USB Keying
(RTTY)" item.
selected in the "USB SEND" or "USB Keying
(RTTY)" item.
selected in the "USB SEND" or "USB Keying (CW)"
item.
(Default: OFF)
(Default: OFF)
(Default: OFF)
