M2266S/H
Technical Handbook

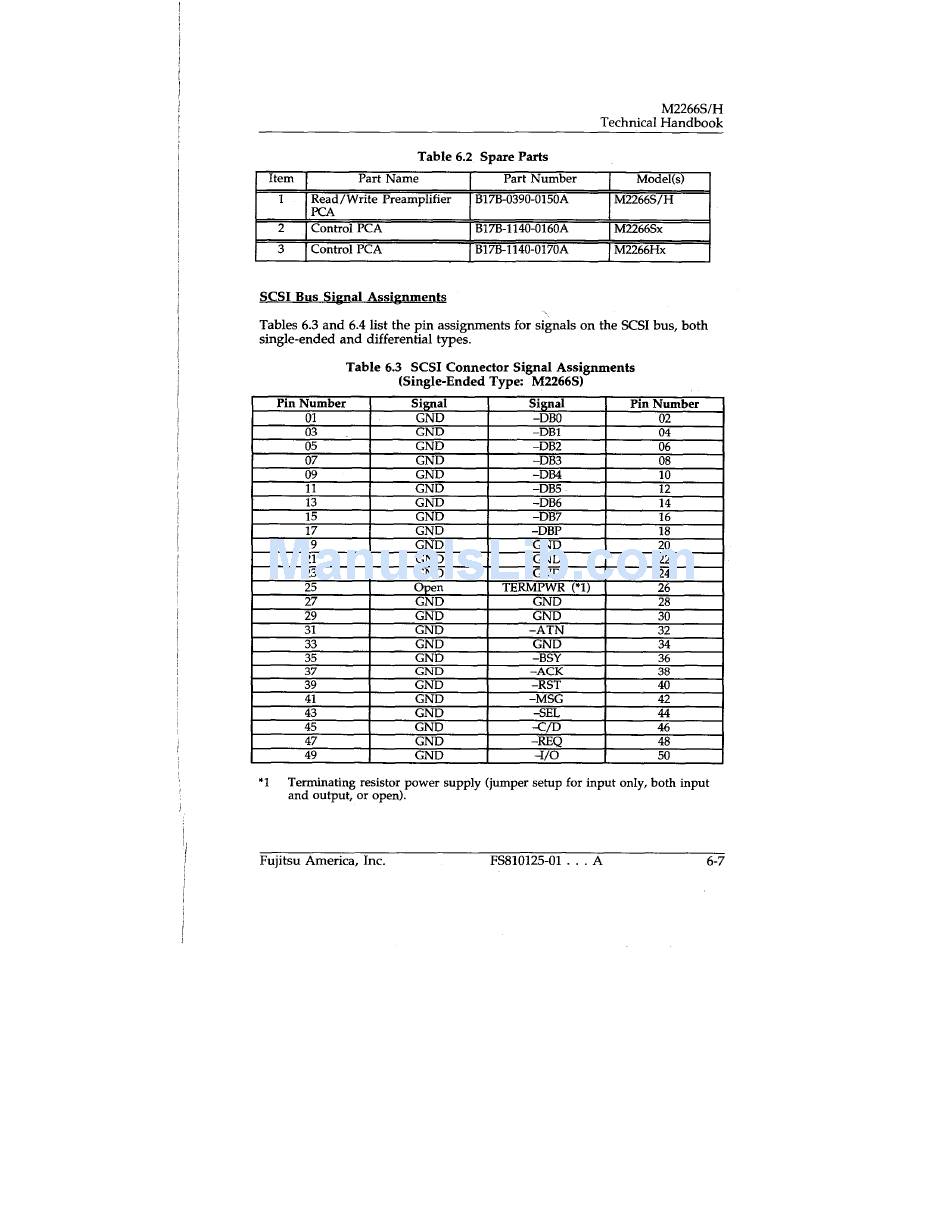

Table 6.2 Spare Parts
Item
Part Name
Part Number
Model(s)
I
Read/Write Preamplifier
PCA
B17B-0390-0150A
M2266S/H
2
Control PCA
B17B-1140-0160A
M2266Sx
3
Control PCA
B17B-1140-0170A
M2266Hx
SCSI Bus Signal Assignments
Tables 6.3 and 6.4 list the pin assignments for signals on the SCSI bus, both
single-ended and differential types.
Table 6.3 SCSI Connector Signal Assignments
(Single-Ended Type: M2266S)
Pin Number
Signal
Signal
Pin Number
01
GND
-DBO
02
03
CND
-DBI
04
05
GND
-DB2
06
07
GND
-DB3
08
09
GND
-DB4
10
11
GND
-DB5
12
13
GND
-DB6
14
15
GND
-13137
16
17
GND
-DBP
18
19
GND
GND
20
21
GND
GND
22
23
GND
GND
24
25
Open
TERMPWR (*1)
26
27
GND
GND
28
29
GND
GND
30
31
GND
-ATN
32
33
GND
GND
34
35
GND
-BSY
36
37
GND
-ACK
38
39
GND
-RST
40
41
GND
-MSG
42
43
GND
-SEL
44
45
GND
-C/D
46
47
GND
-REQ
48
49
GND
4/0
50
*1
Terminating resistor power supply jumper setup for input only, both input
and output, or open).
Fujitsu America, Inc.
FS810125-01 . . . A
6-7
