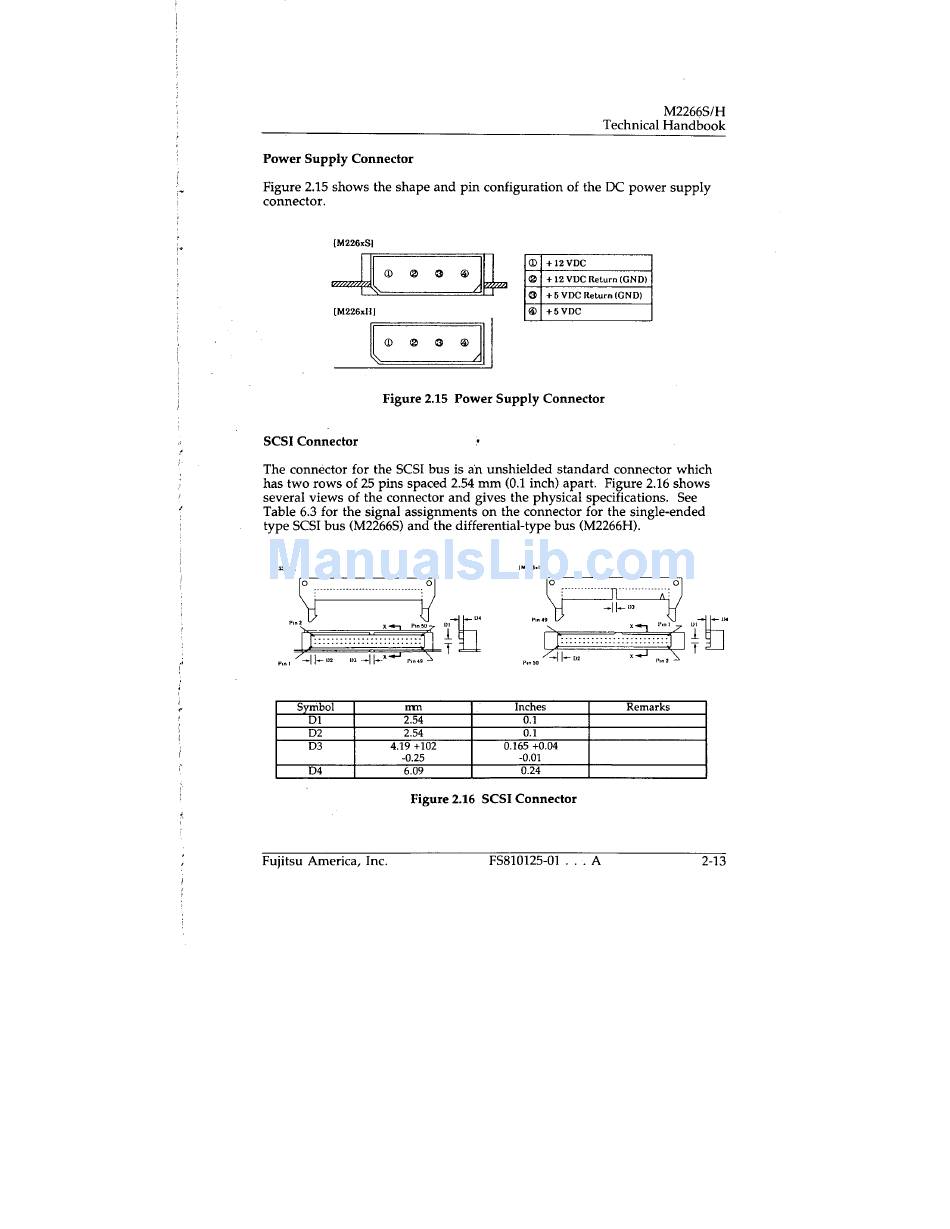

Power Supply Connector
Figure 2.15 shows the shape and pin configuration of the DC power supply
connector.
01 +I2VDC
+ 12 VUC Return (GND)
3
+5 VDC Return (GND)
+5VDC
Figure 2.15 Power Supply Connector
SCSI Connector
The connector for the SCSI bus is an unshielded standard connector which
has two rows of 25 pins spaced 2.54 mm (0.1 inch) apart. Figure 2.16 shows
several views of the connector and gives the physical specifications. See
Table 6.3 for the signal assignments on the connector for the single-ended
type SCSI bus (M2266S) and the differential-type bus (M2266H).
IMZZS,SI
0
I
Symbol
rrin
Inches
Remarks
DI
2.54
0.1
D2
2.54
0.1
D3
4.19+102
-0.25
0.165+0.04
-0.01
D4
6.09
0.24
Figure 2.16 SCSI Connector
Fujitsu America, Inc.
FS810125-01 . . . A
2-13
