M2266S/H
Technical Handbook

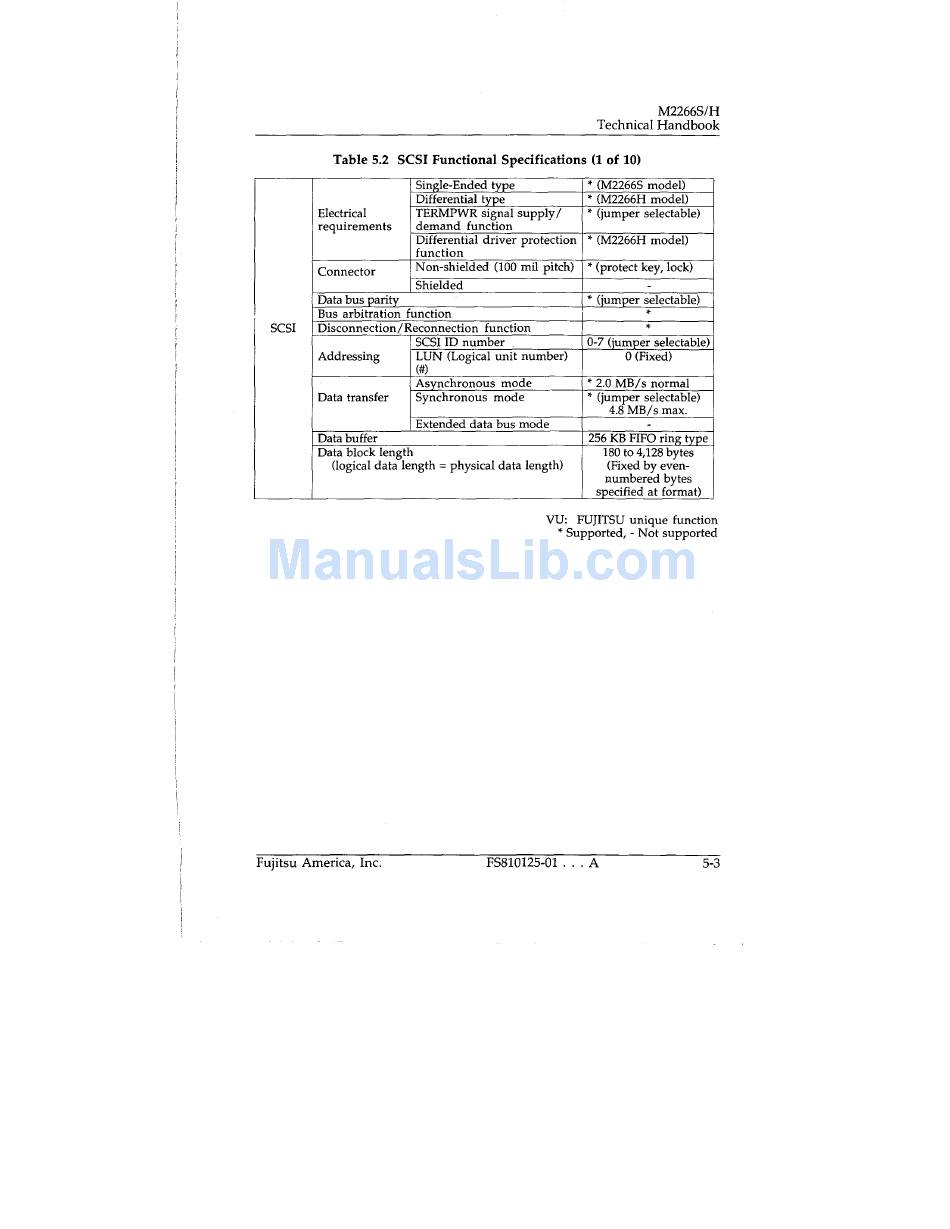

Table 5.2 SCSI Functional Specifications (1 of 10)
SCSI
Electrical
requirements
Single-Ended type
(M2266S model)
Differential type
(M2266H model)
TERMPWR signal supply!
demand function
* (jumper selectable)
Differential driver protection
function
* (M2266H model)
Connector
Non-shielded (100 mil pitch) ' (protect key, lock)
Shielded
-
Data bus parity
* (jumper selectable)
Bus arbitration function
*
Disconnection/ Reconnection function
*
Addressing
SCSI ID number
0-7 (jumper selectable)
LUN (Logical unit number)
(#)
0 (Fixed)
Data transfer
Asynchronous mode
2.0 MB/s normal
Synchronous mode
(jumper selectable)
4.8 MB/s max.
Extended data bus mode
-
Data buffer
256 KB FIFO ring type
Data block length
(logical data length = physical data length)
180 to 4,128 bytes
(Fixed by even-
numbered bytes
specified at format)
VU: FUJITSU unique function
Supported, - Not supported
Fujitsu America, Inc.
FS810125-01 . . . A
5-3
