M2266S/H
Technical Handbook
Environmental Requirements
The IDD must conform to the environmental requirements listed in section
5. When the IDD is operating, the ambient temperature measured 3 cm
from the disk enclosure (DE) surface and from the PCA surface must satisfy
the specified requirement. At the DE surface during operation, the contact
temperature at the measurement point shown in Figure 2.22 must satisfy
the specified requirement.
Measurement point
(Rear-center of DE)

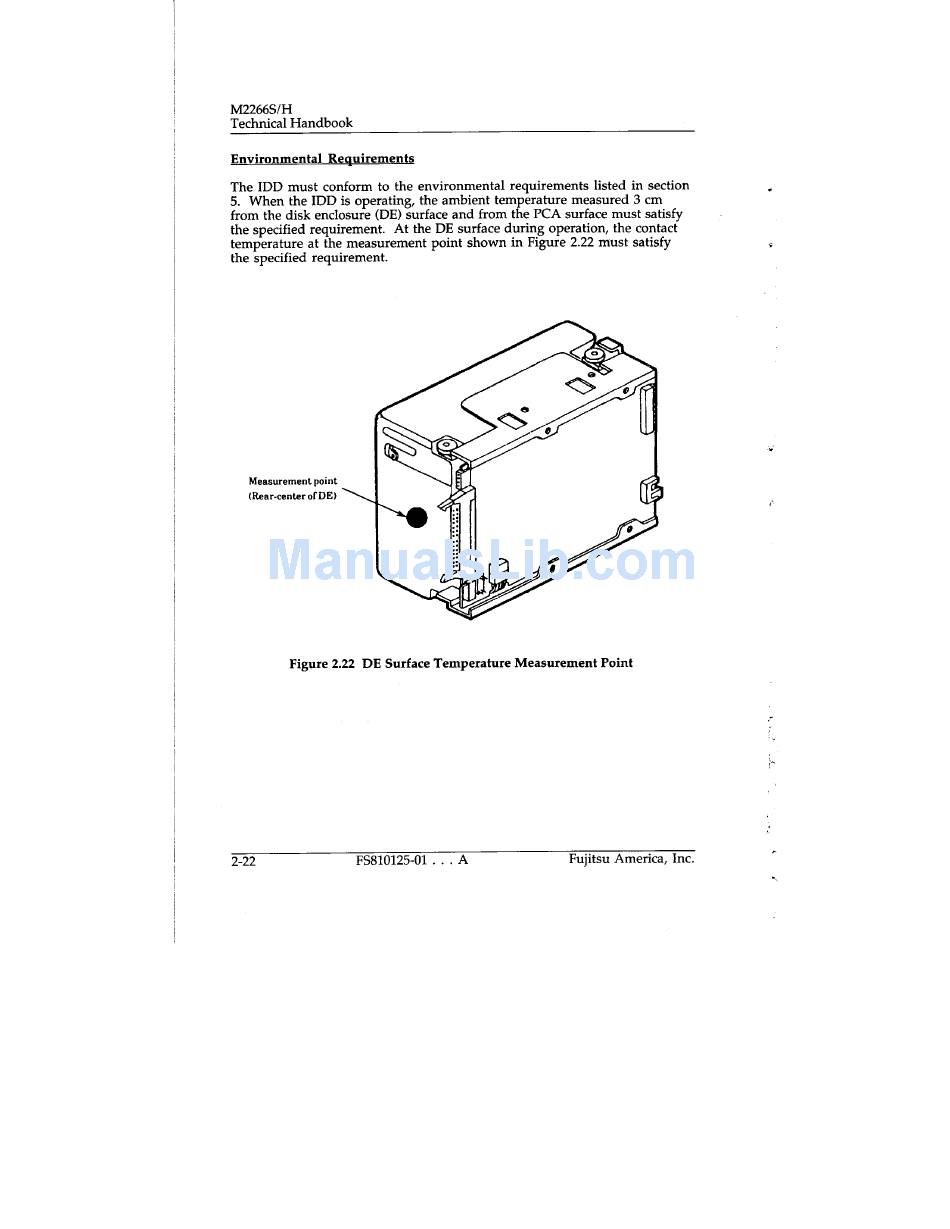

Figure 2.22 DE Surface Temperature Measurement Point
2-22
FS810125-01 . . . A
