M2266S/H
Technical Handbook
Section 5. Specifications
This section describes the functional and environmental specifications of
the M2266S/H disk drives.

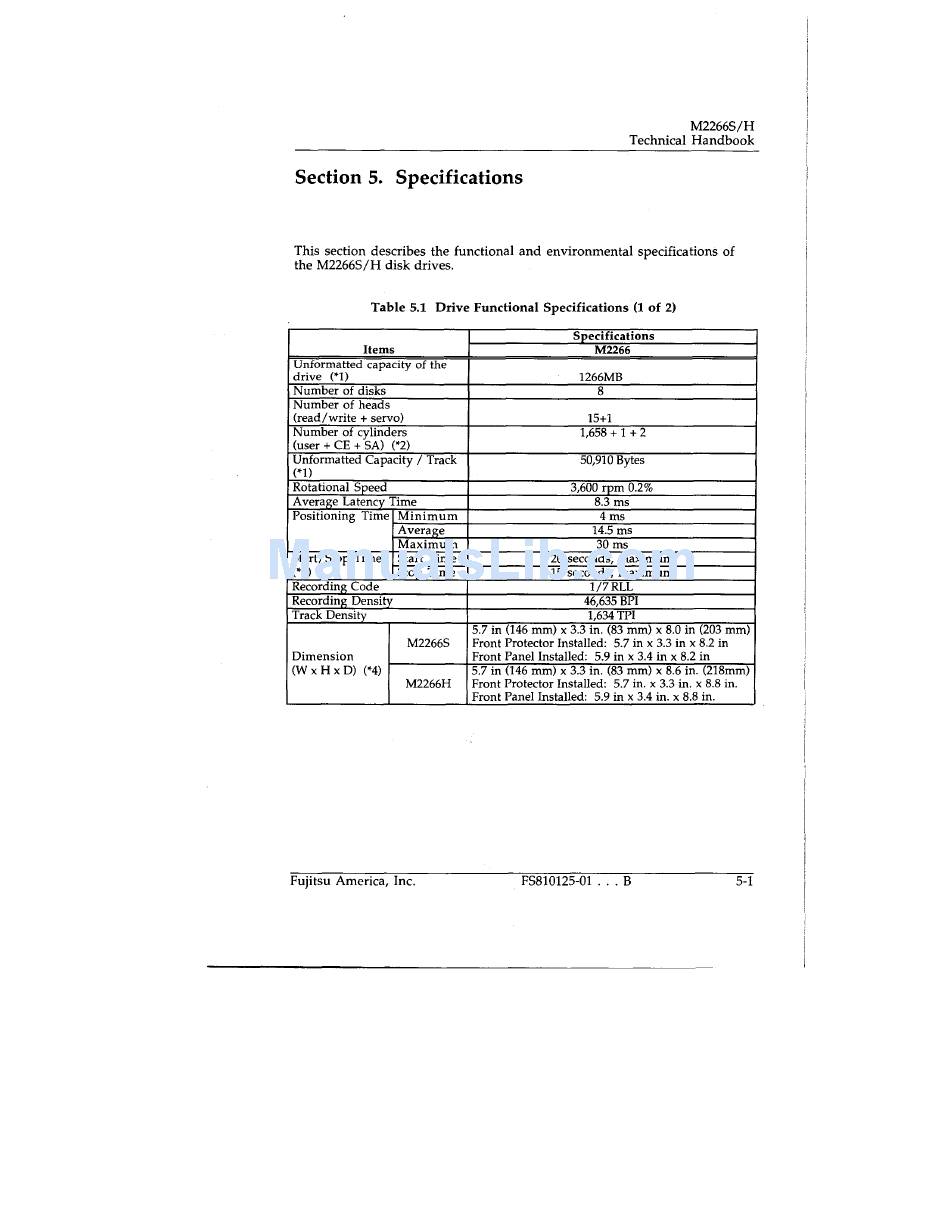

Table 5.1 Drive Functional Specifications (1 of 2)
Items
Specifications
M2266
Unformatted capacity of the
drive (*1)
1266MB
Number of disks
8
Number of heads
(read/write + servo)
15+1
Number of cylinders
(user + CE + SA) (*2)
1,658 + 1 + 2
Unformatted Capacity / Track
(*1)
50,910 Bytes
Rotational Speed
3,600 rpm 0.2%
Average Latency Time
8.3 ms
Positioning Time Minimum
4 ms
Average
14.5 ms
Maximum
30 ins
Start/Stop Time
(*3)
Start Time
20 seconds, maximum
Stop Time
15 seconds, maximum
Recording Code
1/7 RLL
Recording Density
46,635 BPI
Track Density
1,634 TPI
Dimension
(W x H x D) (*4)
M2266S
5.7 in (146 mm) x 3.3 in. (83 mm) x 8.0 in (203 mm)
Front Protector Installed: 5.7 in x 3.3 in x 8.2 in
Front Panel Installed: 5.9 in x 3.4 in x 8.2 in
M2266H
5.7 in (146 mm) x 3.3 in. (83 mm) x 8.6 in. (218mm)
Front Protector Installed: 5.7 in. x 3.3 in. x 8.8 in.
Front Panel Installed: 5.9 in x 3.4 in. x 8.8 in.
Fujitsu America, Inc.
FS810125-01 . . . B
5-1
