VESA Mounting

The MK2000 includes provisions for mounting to an industry standard VESA stand, see
Figure 2-6 on page 2-8 and Figure 2-1 on page 2-3. The MK2000's rear housing includes
®
four VESA standard (M4 threads at a 100mm x 100mm spacing) screw holes. The VESA
(Video Electronics Standards Association) industry standard mounting interface allows
many Off-the-Shelf 3
available Off-the-Shelf stands, search the internet for "VESA Mount".
Symbol also offers an optional VESA Mounting Kit. The kit includes a Connector/Port Cover
which provides enhanced security by covering the MK2000's cables and ports (see Figure
2-6 on page 2-8).
1. Route and secure the cables, confirm that the cables are not pinched, see Figure
2-4 on page 2-6. Position the Connector/Port Cover between the 3rd party VESA
mount and the MK2000. The MK2000 is secured to the VESA mount with four M4
screws. The Connector/Port Cover protects the cables and connections at the back
of the MK2000 and prevents tampering.
VESA Accessory
(Not Supplied)
VESA Mounting Kit,
Connector/Port Cover
(Optional)
2-8
rd
party stands to be used with the MK2000. To find commercially

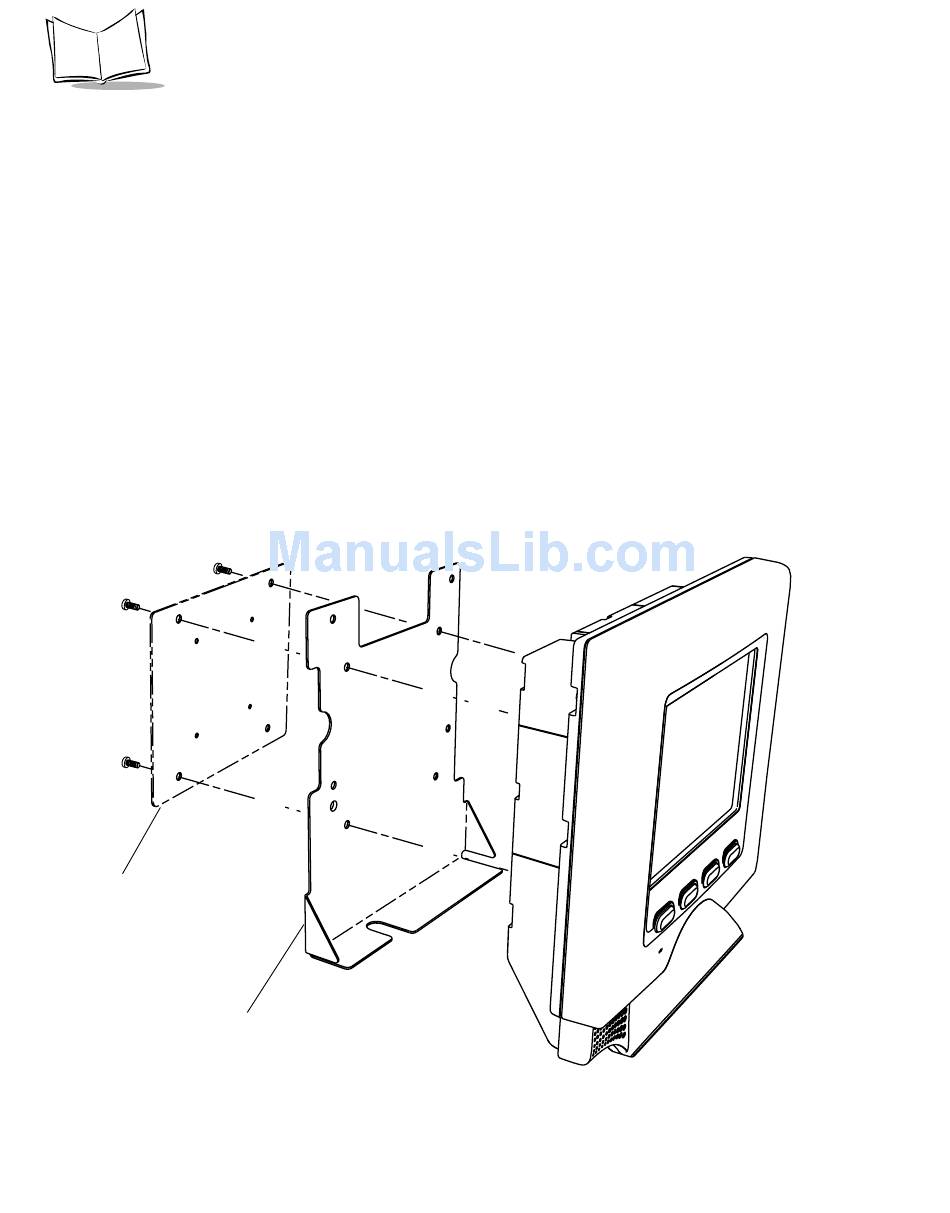

Figure 2-6. VESA Mounting
®
