External Ports

The MK2000 has the following external ports located at the rear/bottom of the unit (see
Figure 1-3):
• Power
• Ethernet / Bias-T (Power-over-Ethernet)
• RS485
• Line out - Left and Right External Speakers
• Headphones
• Printer/Scanner (RS-232, powered).
12-24 12-24
ETHERNET/ ETHERNET/
VDC VDC
BIAS-T BIAS-T

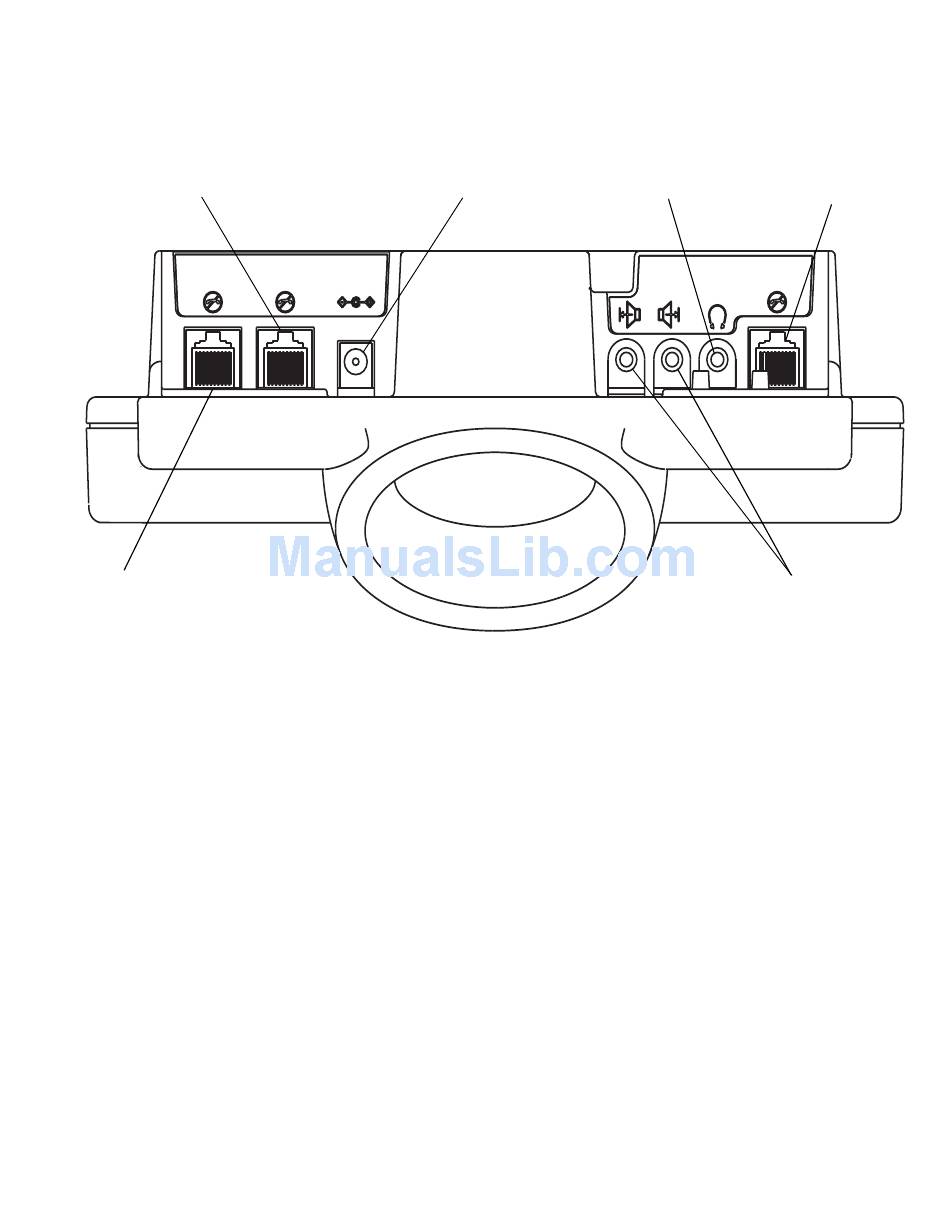

Figure 1-3. MK2000 Bottom (Connectors) View
Power
Headphones Jack
MK2000 Introduction
Printer/
Scanner
(RS-232)
SCANNER/ SCANNER/
AUDIO AUDIO
PRINTER PRINTER
Line-Out
Left and Right
External Speakers
1-5
