MK2000 MicroKiosk Product Reference Guide

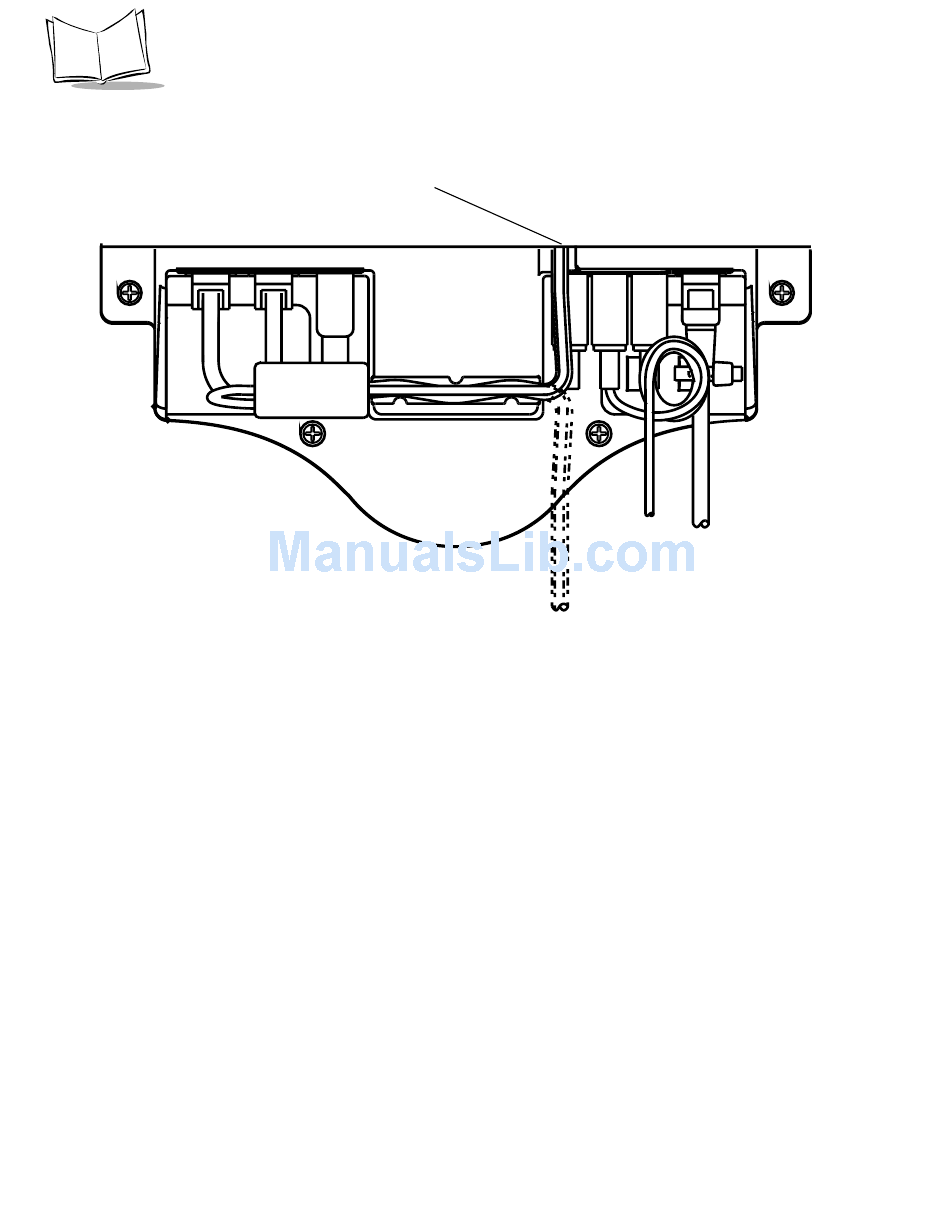

Vertical Cable Run
Figure 2-4. Cable Routing
Recessed Wall/Kiosk Mounting
To recess the MK2000, use the same basic steps as the Using the Wall Mount Kit on page
2-4. With the exception that an opening is cut 8.63" min. height x 8.0" min. width, in a wall
or kiosk and the back housing is placed into the opening see Wall Mounting Kit on page 2-
5 and Mounting Directions on page 2-5). Symbol does not provide hardware to support this
installation. Recessed mounting may degrade the wireless network performance.
2-6
