MK2000 Mounting

The MK2000 can be mounted on a wall, pole or counter top, see Figure 2-1 on page 2-3 for
mounting dimensions. Separately sold mounting accessories are listed below:
• Wall Mounts
• Pole Mount Kit, see page 2-7
• VESA Mounting, see page 2-8.
(4X) 4mm X .7 PITCH THREADED HOLES
PER VESA FLAT PANEL MONITOR
PHYSICAL MOUNTING INTERFACE STANDARD
1.28
1.81
0.68
NOTES:
ALL DIMENSIONS PROVIDED IN INCHES
THE MK2000 IS DESIGNED TO BE USED WITH VESA FLAT PANEL MONITOR
PHYSICAL MOUNTING INTERFACE STANDARD MOUNTING BRACKETS OR SYMBOL'S
KEYHOLE SLIDE-ON MOUNTING BRACKETS.
IT ALSO HAS THE ABILITY TO BE PLACED INTO A FLUSH PANEL KIOSK ENVIRONMENT
BY SETTING IT INTO A 8.0 X 8.63 OPENING.
5.00
3.94
7.57
8.92

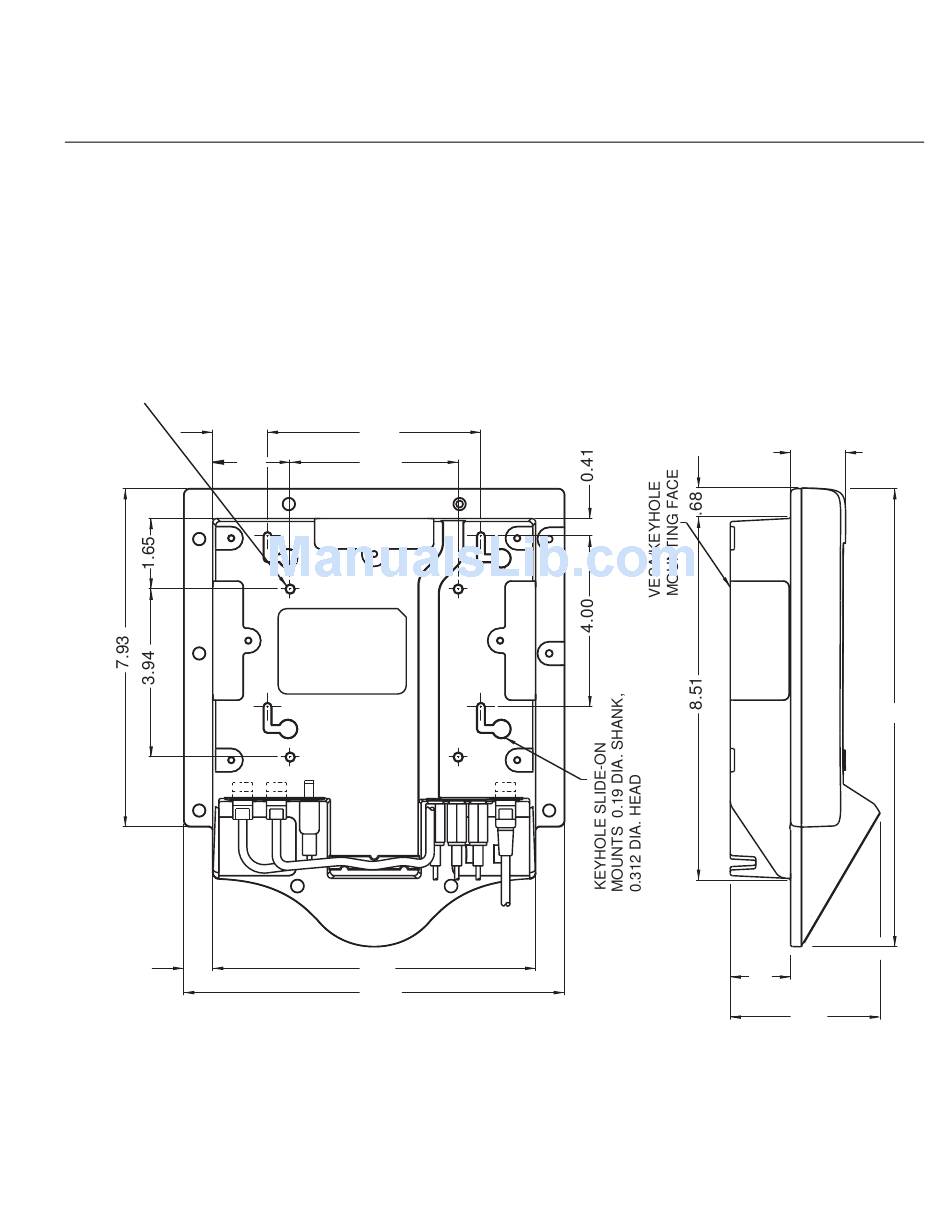

Figure 2-1. Mounting Dimensions
Installation
1.29
10.74
1.4
3.51
2-3
