Weatherproofing the Antenna

The following guidelines should be followed to ensure proper installation:
• The weatherproofing tape must be wound tightly over the connectors.
• Care should be taken to ensure that no areas around the edges are exposed.
Figure 2‐9 shows how to wrap the antenna mounted directly to the AP3965e. Do not install the AP
with the antennas pointing upward. The recommend installation has the antennas extended
horizontally.

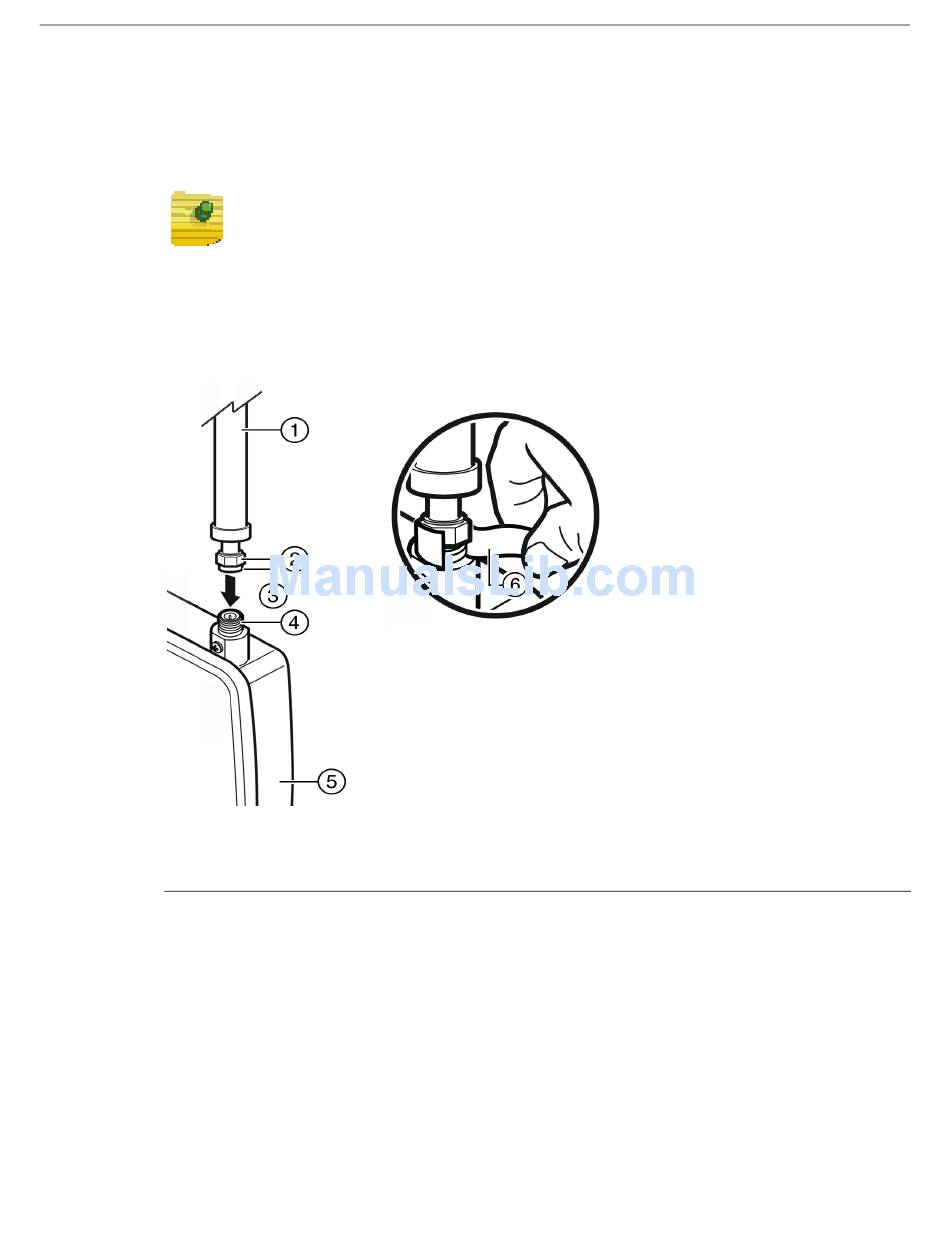

Figure 2-9
1 Antenna
2 Nut
3 Standard polarity Type-N plug
To weatherproof the antenna (refer to Figure
1. Secure the antenna in place by tightening the single nut (item 2).
2. Seal the connection between the Type‐N jack (item 4) of the AP3965e and the Type‐N plug
(item 3) of the antenna by wrapping a layer of sealing tape (item 6).
18
Note:
Installation instructions are provided with each weatherproofing kit and are
included here for reference only

Weatherproofing the AP3965e Antenna

Weatherproofing the AP3965e Connections
.
4 Standard polarity Type-N jack
5 AP3965
6 Sealing tape (recommended, but not supplied)
2‐9):
