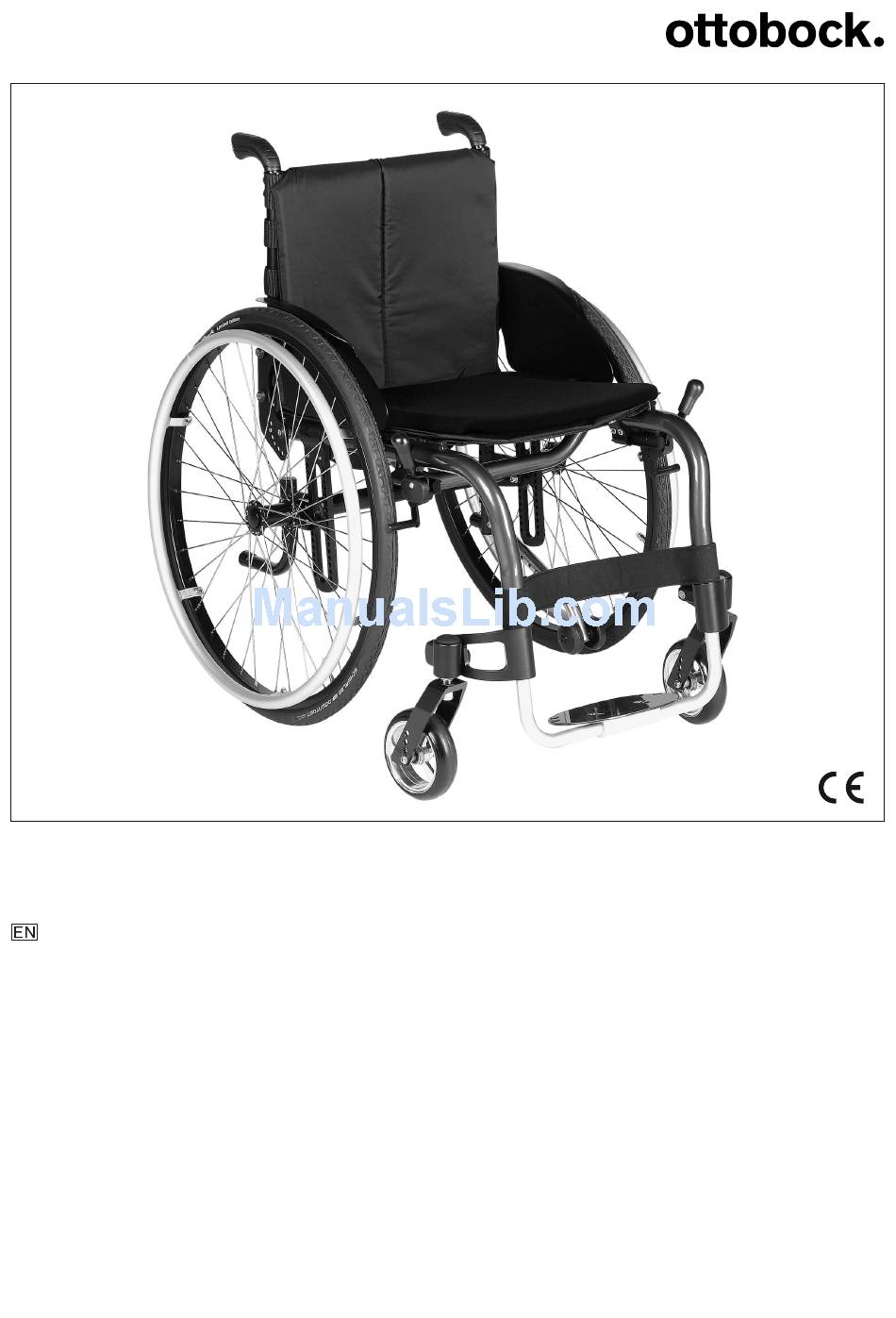

  • Page 1 Ventus Instructions for use (qualified personnel) ..............
  • Page 2 2 | Ottobock Ventus...

  • Page 3: Table Of Contents

    6.7.3 Installing / adjusting the heel block ......................Adjustment of the side panels ....................... 6.8.1 Adjusting the "Height-adjustable" armrest ....................6.8.2 Adjusting the "Padded" armrest ......................6.8.3 Adjusting the "Standard" and "Clothing protector" side panels ..............Ventus Ottobock | 3...
  • Page 4 Handover ............................Maintenance/Repair ............................Disposal ................................Disposal Information ..........................Information on Re-use .......................... Legal Information .............................. 10.1 Service Life ............................10.2 Liability .............................. 10.3 CE Conformity ............................ 10.4 Warranty ............................10.5 Trademarks ............................Technical Data ..............................4 | Ottobock Ventus...

  • Page 5: Foreword

    This is an intentional feature designed to enable users with the corresponding physical prerequisites to manoeuvre quickly and nimbly. Users lacking the necessary physical or psychological prerequisites must not be supplied with such versions/settings. Due to its dimensions, this wheelchair type should not be used for small children. Ventus Ottobock | 5...

  • Page 6: Necessary Qualifications

    ► Modification of the size and position of the front wheels and of the rear wheel size can lead to wobbling of the front wheels at higher speeds. If modification is necessary, ensure proper horizontal alignment of the wheel­ chair frame (see chapter "Adjustment of the rear wheel", "Adjustment of the front wheel"). 6 | Ottobock Ventus...

  • Page 7: Name Plate

    During extended storage, the knee lever wheel lock on wheelchairs with PU tyres must be released since tyre deformation may otherwise result. INFORMATION Tyres contain chemical substances that can react with other chemical substances (such as cleaning agents, acids, etc.). Ventus Ottobock | 7...

  • Page 8: Preparation For Use

    ► Unless expressly described, you may not change any settings with a person sitting in the product. ► Secure the user against falling out during all tests. ► Before testing setting changes with the user seated, firmly tighten all screw connections. ► Check for safe function before delivering the product. 8 | Ottobock Ventus...

  • Page 9: Adjusting The Rear Wheels

    Less load on castor wheels = greater manoeuvrability • Less stability of the wheelchair • Wheelchair is easier to tip backwards when crossing obstacles NOTE: An anti-tipper can be installed if necessary. • Position recommended only for experienced users Ventus Ottobock | 9...

  • Page 10: Moving The Sliders On The Frame

    The rear wheels can be moved vertically with the "long" slider in 15 height positions (see fig. 68) and with the "medium" slider in 10 height positions (not pictured). 1) Remove the wheels. 2) Place the wheelchair upside down. 10 | Ottobock Ventus...

  • Page 11: Adjusting The Height Of The Rear Wheels In The Shock Absorber System

    (refer to the corresponding section). INFORMATION By disassembling and turning the perforated plate in the "long" shock absorber, additional height adjustments can be implemented. For information on disassembly/assembly, see the 647G829 service manual. Ventus Ottobock | 11...

  • Page 12: Adjusting The Track Width (Additional Adjustment)

    7) Adjust the track width in the same fashion on the other clamping flange. Make sure that both camber modules have been adjusted symmetrically. 8) Attach the wheels. 9) Make the track adjustments (Adjusting the track). 10) Tighten the clamping screws to 10 Nm (see fig. 9, item 1). 12 | Ottobock Ventus...

  • Page 13: Adjusting The Rear Wheel Camber

    The modular system of the product offers camber options for different sloped settings of the rear wheels (0° and 3°: see fig. 13, item 1; 6° and 9°: see fig. 13, item 2). 1) Remove the wheels. 2) Place the wheelchair upside down. Ventus Ottobock | 13...

  • Page 14: Adjusting The Track

    ► The track setting must be checked and, if necessary, adjusted after the following adjustments have been made: → Adjusting the horizontal position of the rear wheel: see Page 10 → Adjusting the height of the rear wheel: see Page 10 14 | Ottobock Ventus...

  • Page 15: Adjustments In The Case Of A Wheelbase Extension

    Special requirement: During adjustment of the track width with camber module 0°/3°, the clamps for the wheelbase extension must be loosened (see fig. 21, item 2). Adjusting the track width with camber module 6°/9° is done by adjusting the fitting (see fig. 12). Ventus Ottobock | 15...
  • Page 16 The "clothing protector" side panel can be swung back (see fig. 23) and folded down (see fig. 24). Retrofitting Use the 647G829 service manual if the retrofitting of a wheelbase extension becomes necessary in the course of an initial fitting. 16 | Ottobock Ventus...

  • Page 17: Adjusting The Caster Wheels

    9) Place the protective cap (see fig. 27, item 1) and the plastic cover on the inner side of the frame (see fig. 25). → The castor axle on each of the two castor wheel adapters must be positioned vertically. Ventus Ottobock | 17...

  • Page 18: Adjusting The Castor Journal Angle - "Design"/"Froglegs" Castor Fork

    1) Unscrew the screw on the threaded axle (see fig. 31, item 1). 2) Remove the threaded axle / spacers. 3) Remove the castor wheel. 4) Insert the threaded axle with the 1st spacer bush offset in one of the 4 holes (see fig. 31, item 2). 18 | Ottobock Ventus...

  • Page 19: Adjusting The Brakes

    INFORMATION: For special requirements when adjusting the scissor wheel lock, see the section "Special requirements when adjusting the scissor wheel lock". 3) Tighten the Allen head screws to 10 Nm. → After adjustment the left and right knee lever wheel locks must both have the same braking force. Ventus Ottobock | 19...
  • Page 20 (see fig. 36 item 1; see fig. 37, item 1). • The scissor wheel lock should not hit the frame when it is open. • For information on using the scissor wheel lock, see the instructions for use (user), reference number 647G828. 20 | Ottobock Ventus...

  • Page 21: Adjustment Of The Backrest

    The height of the "height-adjustable" (see fig. 41) and "height-adjustable/removable" push handles (not illustrated) can be adjusted for easier pushing by an attendant. 1) Release the clamping lever. 2) Adjust the height of the push handle. Ventus Ottobock | 21...

  • Page 22: Adjusting The Back/Seat Upholstery

    INFORMATION: The part of the flap that can be fastened prevents sliding or falling through the gaps between the straps and protects against draughts. 7) Fasten the seat pad (see fig. 42, item 1) and the seat cushion. 22 | Ottobock Ventus...

  • Page 23: Adjusting The Seat Upholstery

    1) Slightly loosen the four clamping screws on the inner side of the castor attachment device (see fig. 48, item 1). 2) Adjust the lower leg length (continuously adjustable). The foot stirrups must be slid at least 60 mm into the frame tube. Ventus Ottobock | 23...

  • Page 24: Adjusting The Plate Angle

    1) Loosen the socket head screws on the clamp bracket (see fig. 49, item 6). 2) Rotate the footplate to the desired angle (see fig. 49, item 7). 3) Tighten the socket head screws to 10 Nm. "Fixed" footplate The angle of the plate cannot be changed (see fig. 51). 24 | Ottobock Ventus...

  • Page 25: Installing / Adjusting The Heel Block

    → The armrest locks into place automatically. Adjusting the depth of the armrest 1) Loosen the mounting screws (see fig. 55, item 1). 2) Remove the armrest and move it (see fig. 55, item 2). 3) Screw in the armrests again. Ventus Ottobock | 25...

  • Page 26: Adjusting The "Padded" Armrest

    INFORMATION: Note that the side panel mounting may also have to be repositioned after adjusting the "clothing protector" side panel (see the 647G829 service manual). 26 | Ottobock Ventus...

  • Page 27: Mounting/Adjusting The Channel Forearm Pad With Swivel Unit

    When using the "long" slider, the 481A25=SK035 retrofit kit must be installed for subsequent seat height adjust­ ments. To install this, see the 647G829 service manual. Rear wheel size Axle with camber Rear seat height [mm] 22" 0°/3° </= 420 6° </= 410 9° </= 400 Ventus Ottobock | 27...

  • Page 28: Installing The Anti-Tipper

    2) Set the angle of the accessory mount (3 settings at intervals of 10°: see fig. 64). 3) Tighten the accessory mount to 10 Nm. The max. distance between the anti-tipper rollers and floor is 5 cm (see fig. 60). 28 | Ottobock Ventus...

  • Page 29: Installing / Adjusting The Tip-Assist

    1) Fasten the safety belt to the mounting points with the supplied mounting screws. 2) Tighten the mounting screws to 7 Nm. 3) Adjust the safety belt. Additional information on the settings can be found in the manufacturer's instructions for use accompanying each product. Ventus Ottobock | 29...

  • Page 30: Installing/Adjusting The Headrests And Neckrests

    More information on cleaning/disinfection and maintenance/repair can be found in the instructions for use (user). The service manual contains detailed information on repairs. 9 Disposal 9.1 Disposal Information All components of the product must be disposed of properly in accordance with the respective national environ­ mental regulations. 30 | Ottobock Ventus...

  • Page 31: Information On Re-Use

    All brands, trade names or company names may be registered trademarks and are the property of the respective owners. Should trademarks used in this document fail to be explicitly identified as such, this does not justify the conclusion that the denotation in question is free of third-party rights. Ventus Ottobock | 31...

  • Page 32: Technical Data

    ► Note that the values achieved during adjustment may deviate from the values specified below. The dimension­ al tolerance is ±10 mm and ±2°. General information Ventus Maximum load capacity [kg] 100 (for seat width 280 - 440) 140 (for seat width 460 - 500) Weight [kg] approx.
  • Page 33 Applicable to push ring attachment, narrow and a 0° camber of the rear wheels (push ring attachment, wide: +20 Increase of the overall width because of the wheel camber setting of the rear wheels [mm] Wheel camber 22" rear wheel 24" rear wheel 25" rear wheel 3° < 60 > 60 Ventus Ottobock | 33...
  • Page 34 6° 370 – 460 370 – 510 9° 360 – 450 360 – 500 25" 0°/3° 390 – 480 390 – 530 6° 380 – 470 380 – 520 9° 370 – 460 370 – 510 34 | Ottobock Ventus...
  • Page 35 Specified at 0° seat angle, without seat cushion The values indicated are theoretically determined values (max. deviation: 10 mm) Perforated plate installed at the top in the shock absorber (see fig. 73) Perforated plate installed at the bottom in the shock absorber (not pictured) Ventus Ottobock | 35...
  • Page 36 Technical Data 36 | Ottobock Ventus...
  • Page 37 Ventus Ottobock | 37...
  • Page 38 38 | Ottobock Ventus...
  • Page 39 · www.ottobock.com.au Otto Bock Bulgaria Ltd. info@ottobock.sk · www.ottobock.sk 41 Tzar Boris III‘ Blvd. · 1612 Sofia · Bulgaria Beijing Otto Bock Orthopaedic Industries Co., Ltd. T +359 2 80 57 980 · F +359 2 80 57 982 Otto Bock Sava d.o.o. B12E, Universal Business Park info@ottobock.bg · www.ottobock.bg Industrijska bb ·...
  • Page 40 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee-Rottenbach/Germany www.ottobock.com Ottobock has a certified Quality Management System in accordance with ISO 13485.
