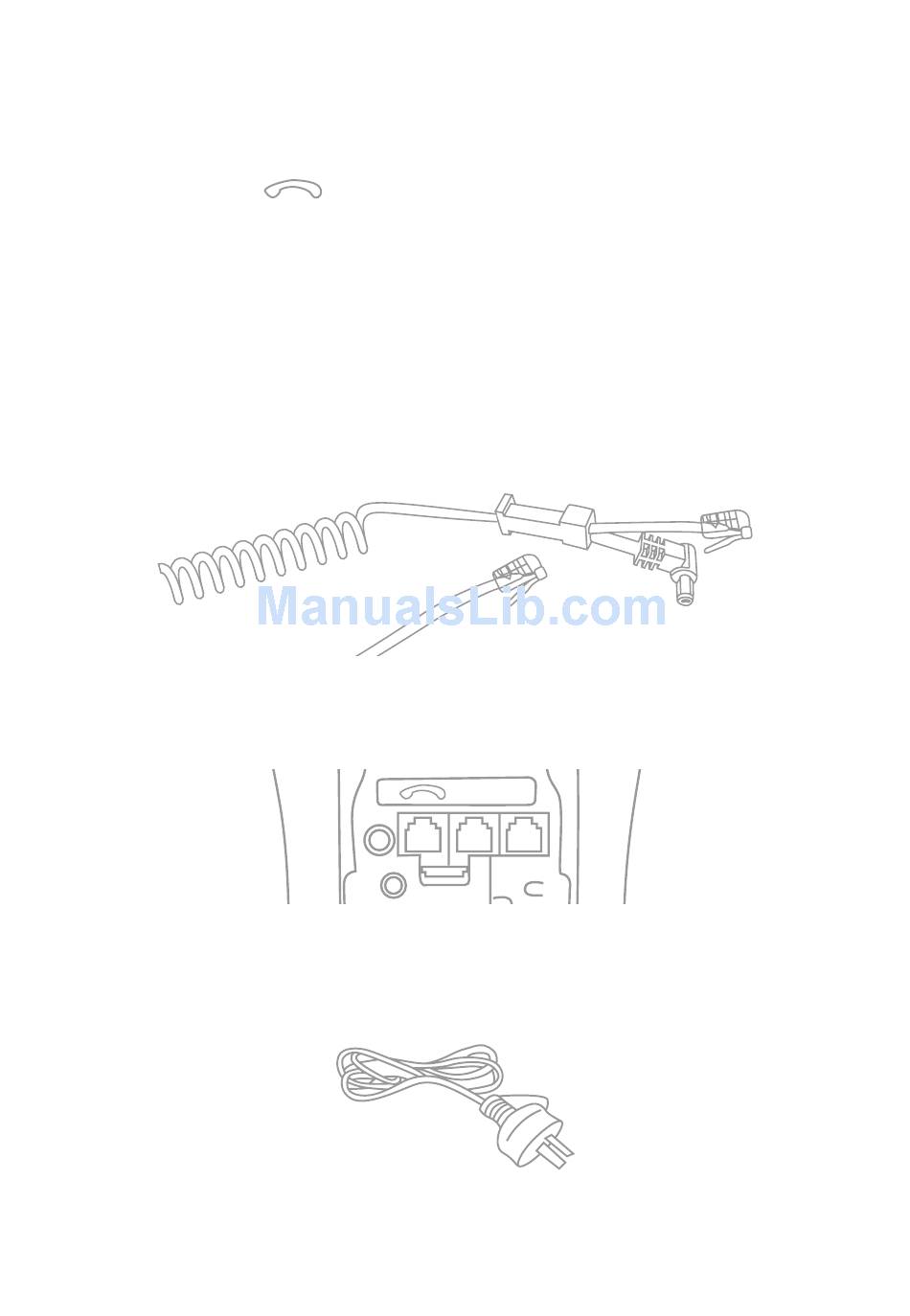

1. Place the terminal on a clear, flat surface close to an electrical socket and
telephone socket. The connectors are located on the underneath of the terminal
as shown.
2. Plug the RJ12 phone connector on the curly end of the Y powered curly cord into
the socket marked
3. Plug the opposite end of the RJ12 curly cord into the telephone cable adaptor,
which inserts into the telephone wall socket.
4. Plug the DC connector on the curly end of the Y powered curly cord into the
terminal's power socket.
5. Plug the opposite ends DC connector into the terminal power supply.
6. Connect the power cord to the terminal power supply and then into a mains
power outlet.
8
Dial-up EFTPOS Merchant Operating Guide – May 2011
.
Y Powered Curly Cord
CAB321359b
Terminal Connections
ALI0142
Plug
It
Power Cord
CAB0092
