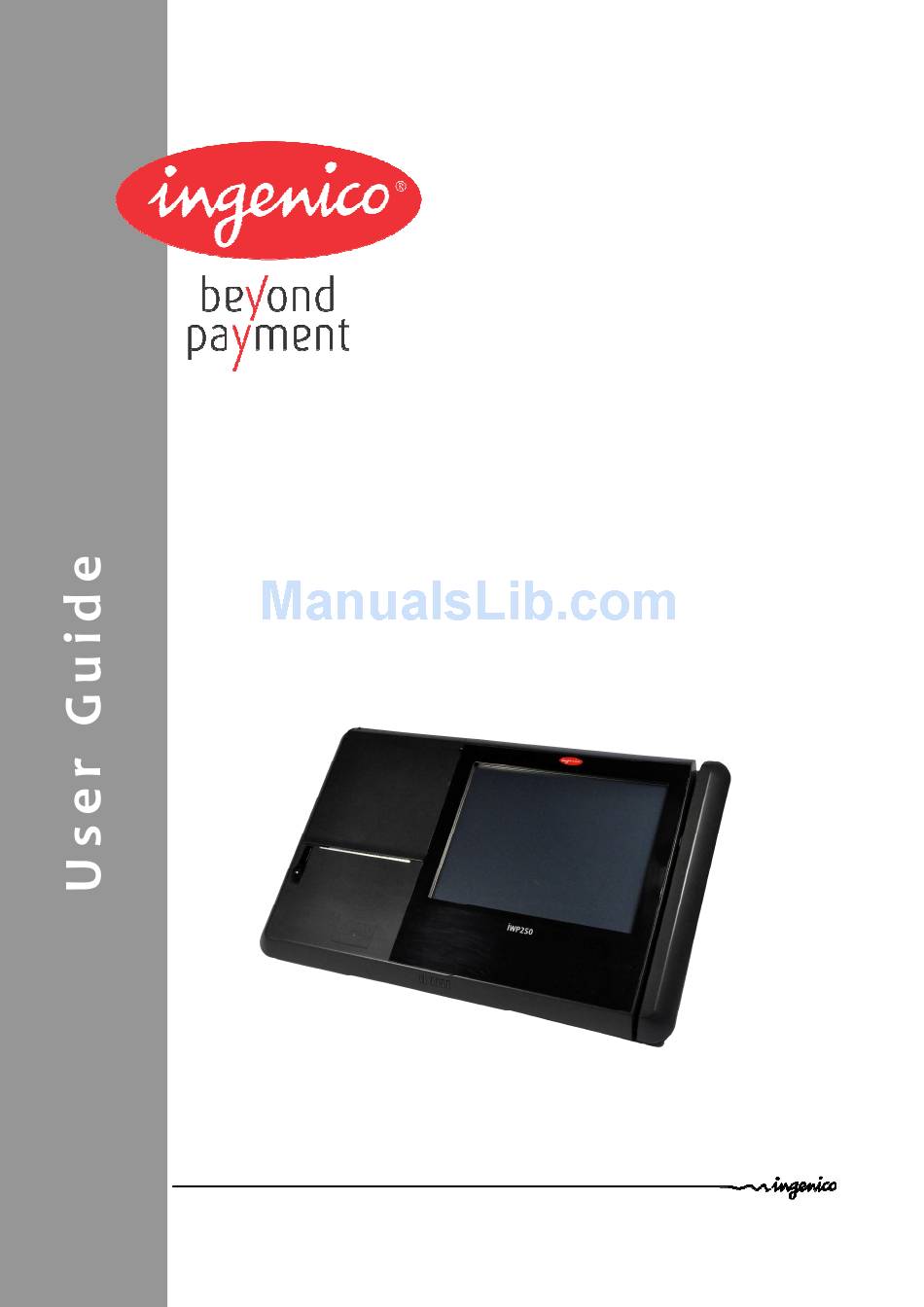

- Page 1 WebPOS iWP220/ iWP250 INGENICO – 192 avenue Charles de Gaulle – 92200 Neuilly sur Seine - FRANCE Tél. 33(0)1 46 25 82 00 - Fax 33 (0)1 47 72 56 95 www.ingenico.com...
-
Page 2: Table Of Contents
8.1. Paper roll ___________________________________________________________ 17 8.2. Cleaning of the terminal _______________________________________________ 18 8.3. Transport and storage ________________________________________________ 18 8.4. Troubleshooting _____________________________________________________ 18 8.5. End of life___________________________________________________________ 19 • WebPOS iWP220/ iWP250_user guide 2/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 3: Introduction
User guide iWP220/iWP250 desktop power supply terminal CAUTION The power supply unit provided with your equipment is specially designed for Ingenico iWP220/iWP250 terminals. Do not use any other power supply. • WebPOS iWP220/ iWP250_user guide 3/20 Copyright © 2009 Ingenico... -
Page 4: Recommendations
– EN 300328 : (BT + WLAN) Electromagnetic compatibility and Radio Spectrum – EN 300330 : NFC Electromagnetic compatibility and Radio Spectrum – • WebPOS iWP220/ iWP250_user guide 4/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 5: Fcc Compliance
This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. CAUTION: The user is cautioned that any changes or modification not approved by INGENICO could void user’s authority to operate the equipment. • WebPOS iWP220/ iWP250_user guide 5/20 Copyright ©... -
Page 6: Main Characteristics
Mobile Class B Multi slot Class 10 ( 4+1, 3+2) Contact less Type A & Type B Auto cutter CAUTION: Do not use metal to touch the screen. • WebPOS iWP220/ iWP250_user guide 6/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 7: Installation And Connection
Three position available • Insert the foot in one of the 3 foot support slots of iWP terminal (see slots on connections sketch 4.4) • WebPOS iWP220/ iWP250_user guide 7/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 8: Connections
Plug cable for the main power supply to the main power supply network; • Insert the cable in the Locking Mechanism • WebPOS iWP220/ iWP250_user guide 8/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 9: Close The Shield Cover
Insert completely the SD/MMC memory card or SIM in their slot, • To remove the SD/MMC Card or SIM card, push on it with your nails. SD/MMC • WebPOS iWP220/ iWP250_user guide 9/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 10: Reset Button Location
Reset button is located under the terminal. • This button is hidden to avoid unexpected action. Please use a stick to push it. Reset • WebPOS iWP220/ iWP250_user guide 10/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 11: Installing A Paper Roll
Unroll the paper out of the compartment and hold it in bottom position. • Maintain the paper and close the cover. • Press in the middle of the cover to close it. Paper Button • WebPOS iWP220/ iWP250_user guide 11/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 12: Installing A Second Screen
Lock the screen in position. CAUTION It is impossible to remove the screen after locking. • The next pictures seen the final position. • WebPOS iWP220/ iWP250_user guide 12/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... - Page 13 Place correctly the cable into its different location (2) to avoid paper jam. CAUTION You have to double check that the paper is free in its location. • WebPOS iWP220/ iWP250_user guide 13/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926...
-
Page 14: Daily Use
Bring the card firmly up to the active zone above the display (at about 1cm). Keep the card close to the Cless area during the operation. Contactless active area • WebPOS iWP220/ iWP250_user guide 14/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 15: Led Indicators
Blinking indicates data transfert WiFi ON indicates WiFi activated Bluetooth ON indicates Bluetooth activated ON indicates GPRS activated GPRS Blinking indicates data transfert • WebPOS iWP220/ iWP250_user guide 15/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 16: Login Sequence
User shall then contact the administrator. Once the final application selected by the administrator is installed, this application is automatically launched at device power up. • WebPOS iWP220/ iWP250_user guide 16/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 17: Maintenance
CAUTION In order to benefit from the complete guarantee of the product, only heat sensitized paper approved by the manufacturer can be used. • WebPOS iWP220/ iWP250_user guide 17/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 18: Cleaning Of The Terminal
Possibly adjust the paper roll following instructions present in this manual • Check the type of paper used (thermal paper must be used) • WebPOS iWP220/ iWP250_user guide 18/20 Copyright © 2009 Ingenico 9000002528 R11 000 01/926 All rights reserved... -
Page 19: End Of Life
To assure that the product is collected and recycled with respect to the environment, you must contact your supplier (in defect, contact the Ingenico local office or the commercial head office in charge of your country on www.ingenico.com, « contact us » page). - Page 20 INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party without the prior written permission of INGENICO. If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held responsible to INGENICO for the confidentiality of that information.
