SECTION 4:

OPERATION

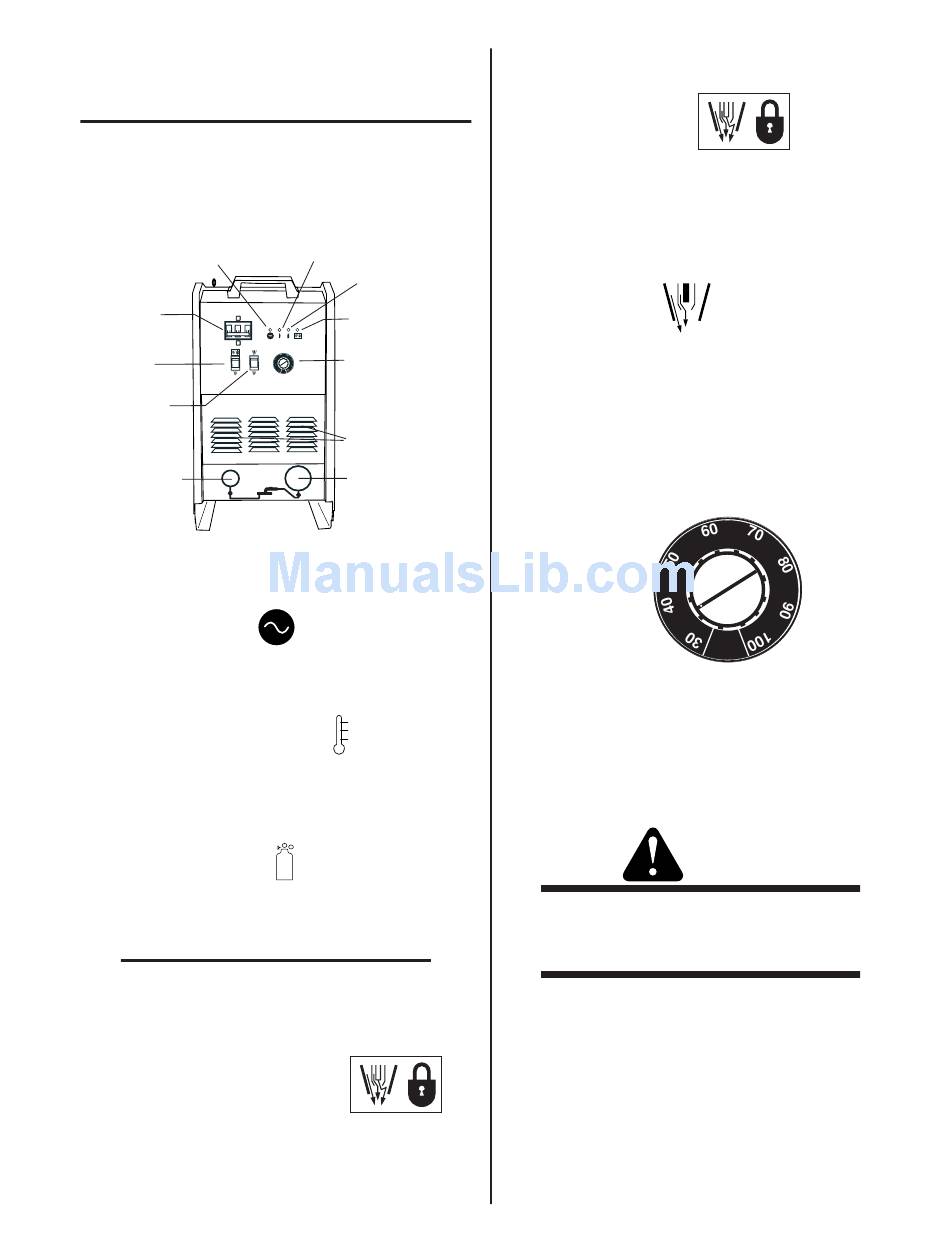

4.01 Front Control Panel

AC Power
Indicator
"On / Off"
Switch
I
O
Torch Latch
Switch
Air Set
Switch
Work Lead
Art # A-04483
A. Indicator Lamp
• Power Indicator
Lights when primary power switch is turned
on.
• TEMPERATURE Indicator
Indicator is normally OFF. Indicator is ON
when internal temperature exceeds normal
limits.
• Air Error Indicator
This indicator lights when there is not enough
air pressure to operate the power supply.
NOTE
It is possible to have enough air pressure to op-
erate the power supply but not enough air flow
to operate the torch.
• Torch Latch Switch Indicator
This indicator lights when the Torch Latch
Switch has been pressed for continuous cut-
ting.
Manual 0-4686
Overheating
Indicator
Air Error Indicator
Torch Latch
100A 100A
Switch Indicator
Current Control
Knob
A
Air Vents
Torch
B. Switches
• Torch Latch Switch
For continuous cutting performance. Depress
this switch ( turn "On" ) while cutting with the
torch. Release the torch trigger and the torch
will continue to cut without depressing the torch
trigger.
• Air Set Switch
To check for proper air setting and to cool down
heated torch.
C. Main Current Control Knob
To adjust cutting current. Turning clockwise in-
creases the cutting current and counter clock-
wise decreases the cutting current.
Art # A-04484
D. Primary Power Switch, ON / OFF
The power switch is located on the front panel.
Placing the primary power switch to the "ON"
position energizes the power source.
When the power source is overloaded, the switch
turns to the OFF position automatically. DO
NOT TURN ON BY FORCE.
4-1
A
WARNING
Operation
