Art # A-04674
Work Cable
PIP
Switch
Torch
Switch
Torch Head
APPENDIX

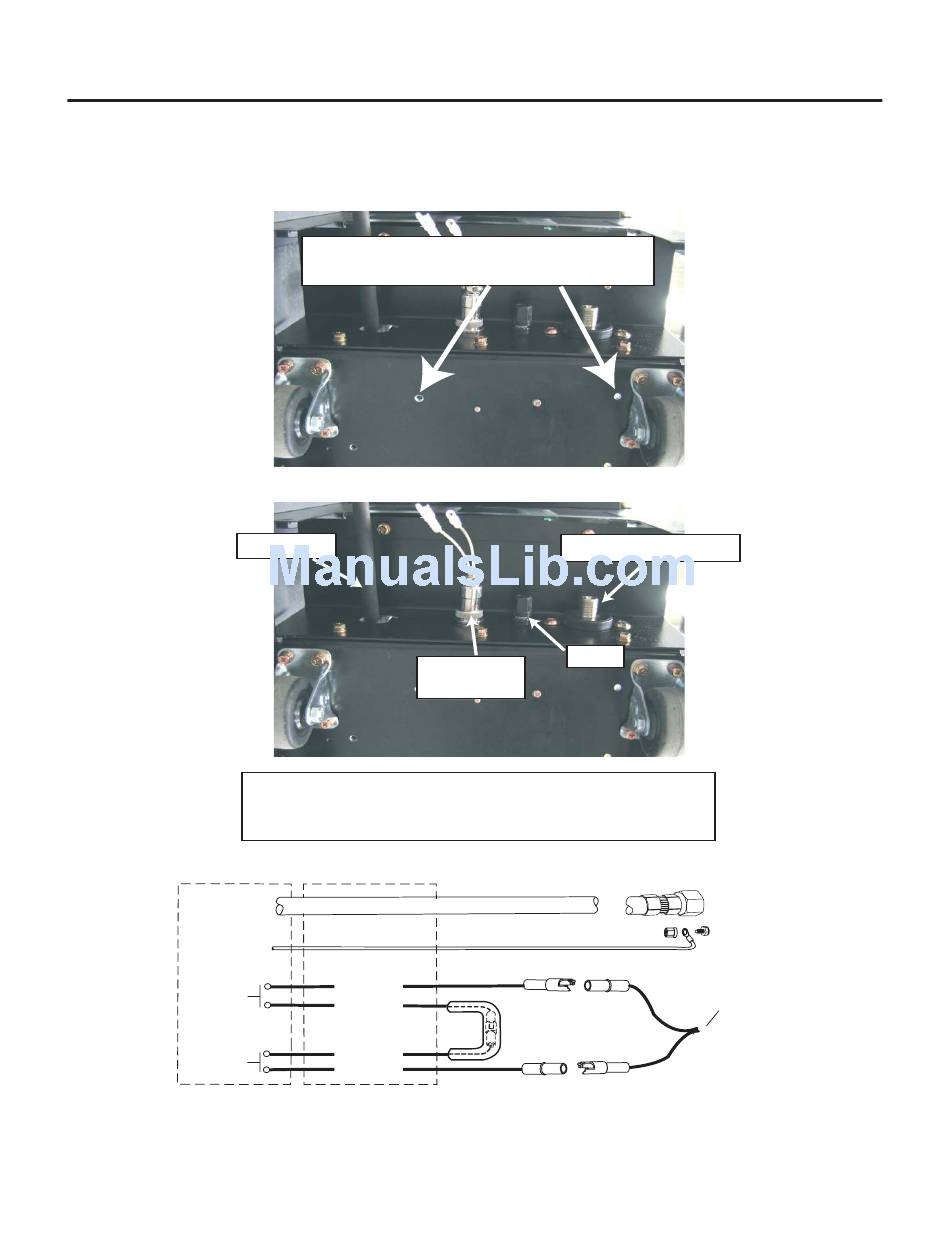

Appendix 2: Torch Connection
Disconnect power and air. Lay unit on its side.
Remove two screws and the access panel.
View from Bottom
Power Supply
Adapter
NOTE: Work cable and torch leads must go through the access
panel and be secured with through hole protectors.
Negative / Plasma Lead
Pilot
Black
Orange
Green
White
Torch Leads
Negative / Plasma Lead
Pilot
Pilot
6-2
To Power
Supply Adapter
Manual 0-4686
