SECTION 3:

INSTALLATION

3.01 Site Selection

• Place in a clean and dry area.
• Provide adequate ventilation and fresh air sup-
ply.
• Ideal ambient temperature should not exceed
40°C / 104°F. Higher temperatures may dimin-
ish cutting capacity or quality.
• The cutting machine must be placed on an even,
firm surface so that it stands securely. Block the
wheels or lower and secure the side rails along
the bottom of the base to keep the wheels from
rolling and the power supply stationary. The
power supply may also be fastened to supports
by passing hardware through the openings in the
same side rails.
This equipment must be electrically connected
by a qualified electrician.

3.02 Electrical Input Connections

1. Input Power Requirements
Model
230V (± 10%), 1 phase, 50/60 Hz
230V (± 10%), 3 phase, 50/60 Hz
Input Power
400V (± 10%), 3 phase, 50/60 Hz
460V (± 10%), 1 phase, 50/60 Hz
460V (± 10%), 3 phase, 50/60 Hz
Check your power source for correct voltage be-
fore plugging in or connecting the unit. The
primary power source, fuse, and any extension
cords used must conform to local electrical code
and the recommended circuit protection and wir-
ing requirements as specified in Section 2.02.
Manual 0-4686
WARNING
C-100A
CAUTION
2. Input Power Connection
The power supply requires a customer-supplied input
power cord suitable for the input power in use.
1. Remove the power supply cover.
2. Loosen, but do not remove, the through-hole pro-
tector on the power supply rear panel.
3. On the end being used to attach to the power sup-
ply, strip the outer layer of the input power cord
approximately 4" (10 cm) exposing the individual
wires. Strip the insulation from the individual wires
approximately 3/8" (9 mm) from the ends. Securely
fasten ring tongue terminals, that are compatible
with the input power, to the individual wires .

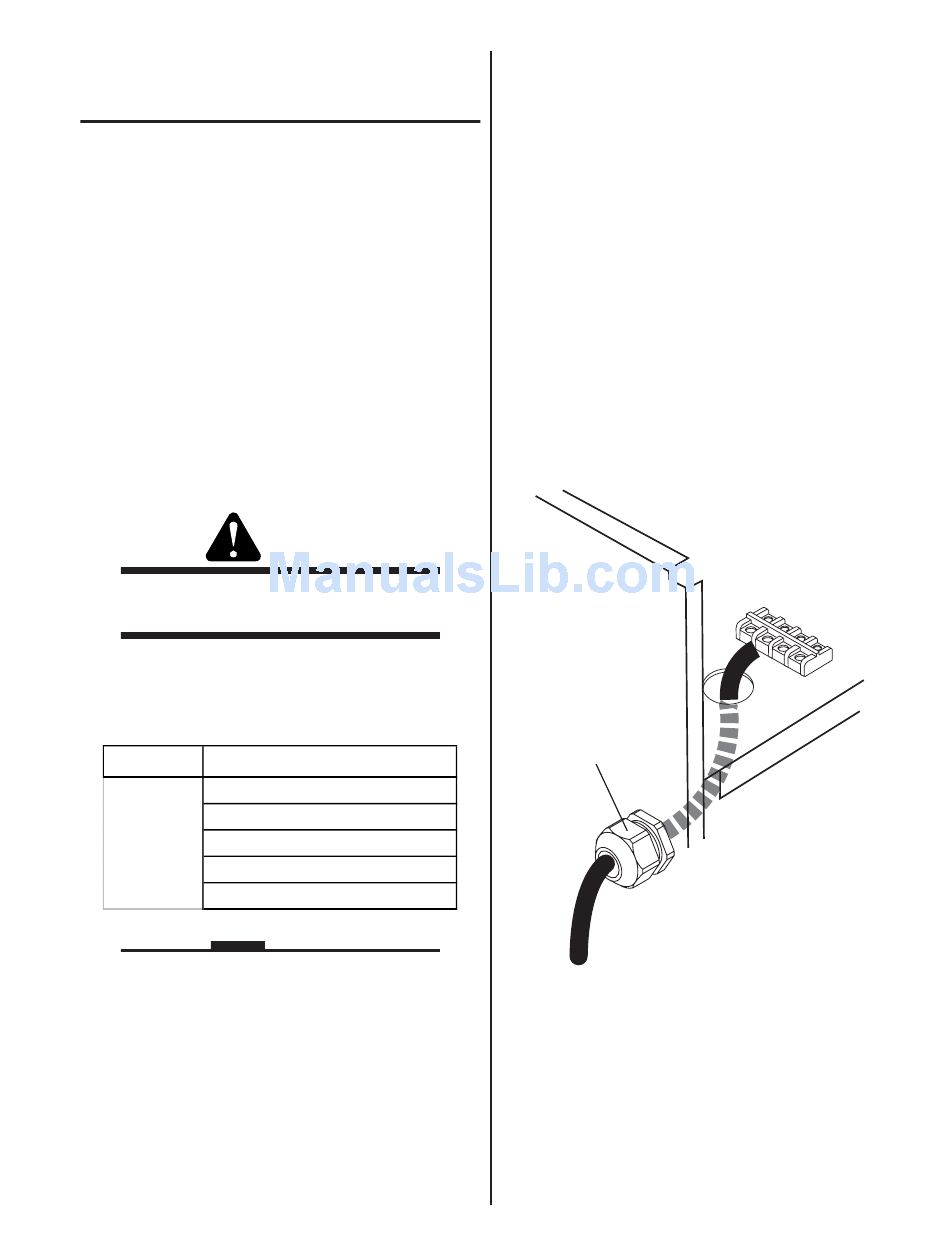

Pass the input power cord through the through-hole
protector, then upward through the power supply
upper horizontal panel.
Power Supply
Rear Panel
Through-hole
Protector
3-1
Art # A-04651
Installation
